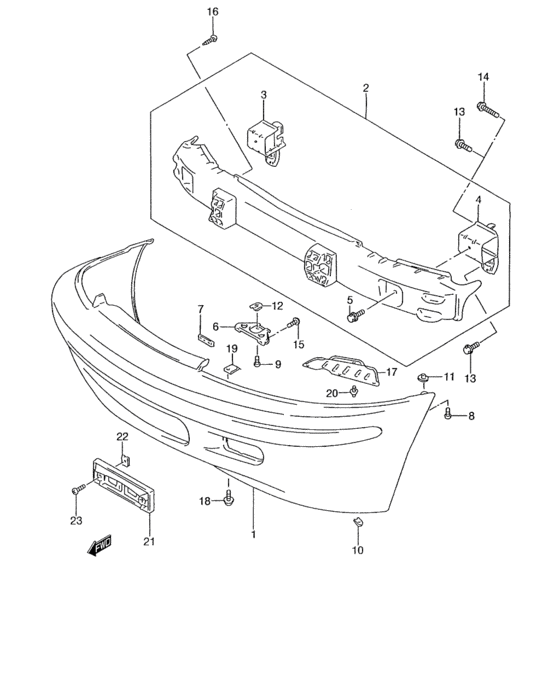

B front bumper (B FRONT BUMPER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-50G00-P14
Bumper, front
95 MODEL,96 MODEL,97 MODEL |
71711-50G00-P14 |
— | ||
|
1
|
1
71711-50G20-P14
Bumper, front
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
71711-50G20-P14 |
— | ||
|
2
|
2
71720-50G00-000
Member assy, fr bumper
|
71720-50G00-000 |
— | ||
|
3
|
3
71730-50G00-000
Stay, fr bumper rh
|
71730-50G00-000 |
— | ||
|
4
|
4
71740-50G00-000
Stay, fr bumper lh
|
71740-50G00-000 |
— | ||
|
5
|
5
09118-08119-000 BOLT(8X25) |
09118-08119-000 |
from US $1.38 |
||
|
6
|
6
71751-50G00-000
Bracket, fr bumper lower
|
71751-50G00-000 |
— | ||
|
7
|
7
71771-60A00-000 RETAINER,FR LICENSE PLATE |
71771-60A00-000 |
US $4.16 |
||
|
8
|
8
09136-05057-000
Screw, fr turnsignal (5x20)
|
09136-05057-000 |
— | ||
| replacement | |||||
|
8
|
8
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
9
|
9
09136-05057-000
Screw, fr turnsignal (5x20)
|
09136-05057-000 |
— | ||
| replacement | |||||
|
9
|
9
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
10
|
10
09148-05017-000 NUTEcrou |
09148-05017-000 |
US $13.20 |
||
|
11
|
11
09148-05028-000 NUT |
09148-05028-000 |
US $1.28 |
||
|
12
|
12
09148-05028-000 NUT |
09148-05028-000 |
US $1.28 |
||
|
13
|
13
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
13
|
13
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
01551-08163-000
Bolt
2S2AB21H T6601516~ |
01551-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01551-0816C-000 Bolt2S2AB21H T6601516~ |
01551-0816C-000 |
from US $0.96 |
||
|
13
|
13
01551-0816A-000
ボルト
2S2AB21H T6601516~ |
01551-0816A-000 |
— | ||
|
14
|
14
01550-08203-000
Bolt
2S2AB21H T6601516~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 Bolt2S2AB21H T6601516~ |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket 2S2AB21H T6601516~ |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
03542-06203-000
Screw
|
03542-06203-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0620A-000 SCREW |
03541-0620A-000 |
from US $3.35 |
||
|
16
|
16
03542-06203-000
Screw
|
03542-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0620A-000 SCREW |
03541-0620A-000 |
from US $3.35 |
||
|
17
|
17
72391-50G00-000
Panel, air guide
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
72391-50G00-000 |
— | ||
|
18
|
18
09136-05057-000
Screw, fr turnsignal (5x20)
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09136-05057-000 |
— | ||
| replacement | |||||
|
18
|
18
09136-05068-000 SCREW(5X20)98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09136-05068-000 |
from US $0.96 |
||
|
19
|
19
09148-05004-000 NUT98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
19
|
19
09148-05013-000 NUT98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09148-05013-000 |
from US $0.91 |
||
|
20
|
20
09409-07308-5PK CLIP(BLACK)98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09409-07308-5PK |
from US $0.95 |
||
|
21
|
21
79261-50G00-5PK
Bracket, license plate
95 MODEL,96 MODEL,97 MODEL |
79261-50G00-5PK |
— | ||
|
21
|
21
79261-50G20-5PK
Bracket, license plate
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
79261-50G20-5PK |
— | ||
|
22
|
22
71812-82010-000
Nut
|
71812-82010-000 |
— | ||
| replacement | |||||
|
22
|
22
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.31 |
||
|
23
|
23
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
