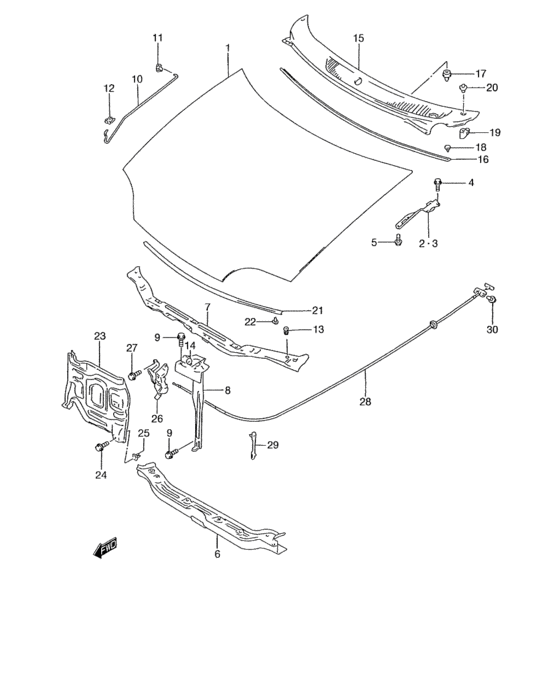

B front hood panel (B FRONT HOOD PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-50G00-000
Panel, front hood
|
57300-50G00-000 |
— | ||
|
2
|
2
57410-50G00-000 HINGE,FR HOOD,R |
57410-50G00-000 |
US $65.60 |
||
|
3
|
3
57420-50G00-000 HINGE,FR HOOD,L |
57420-50G00-000 |
US $65.60 |
||
|
4
|
4
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
5
|
5
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
5
|
5
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
6
|
6
58210-60BL1-000
Crossmember, front lower
95 MODEL,96 MODEL,97 MODEL |
58210-60BL1-000 |
— | ||
|
6
|
6
58210-50G20-000
Crossmember, front lower
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
58210-50G20-000 |
— | ||
|
7
|
7
58230-50G01-000
Member, hood lock
|
58230-50G01-000 |
— | ||
|
8
|
8
57110-50G00-000
Brace, hood lock member
|
57110-50G00-000 |
— | ||
|
9
|
9
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
72321-60B10-000 PROP,FRONT HOOD |
72321-60B10-000 |
from US $8.87 |
||
|
11
|
11
09209-09007-000 LINKAGEConnector |
09209-09007-000 |
from US $1.42 |
||
|
12
|
12
09403-07311-000 CLAMP |
09403-07311-000 |
from US $0.95 |
||
|
13
|
13
72372-82000-000 CUSHION,BACK DR SIDECushion 95 MODEL,96 MODEL |
72372-82000-000 |
from US $2.12 |
||
|
13
|
13
72372-50G00-000
Cushion, front hood front
97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
72372-50G00-000 |
— | ||
| replacement | |||||
|
13
|
13
72372-82000-000 CUSHION,BACK DR SIDECushion 97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
72372-82000-000 |
from US $2.12 |
||
|
14
|
14
09321-10023-000 CUSHION |
09321-10023-000 |
from US $1.82 |
||
|
15
|
15
72331-50G00-5PK
Garnish, cowl ventilator
(BLACK) |
72331-50G00-5PK |
— | ||
|
16
|
16
72341-50G00-000
SEAL,HOOD RR
|
72341-50G00-000 |
— | ||
|
17
|
17
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
18
|
18
09409-04304-000 CLIP |
09409-04304-000 |
from US $1.13 |
||
|
19
|
19
72332-50G00-000
Retainer, cowl vent garnish
|
72332-50G00-000 |
— | ||
|
20
|
20
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
21
|
21
72351-50G00-000
SEAL,HOOD FR
AT |
72351-50G00-000 |
— | ||
|
22
|
22
09409-04304-000 CLIPAT |
09409-04304-000 |
from US $1.13 |
||
|
23
|
23
72531-50G01-000
Cover, engine front
N/AIR CON |
72531-50G01-000 |
— | ||
|
24
|
24
02162-06123-000
Bolt (6x12)
N/AIR CON |
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt N/AIR CON |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket N/AIR CON |
02162-0612A-000 |
from US $0.80 |
||
|
25
|
25
09148-06007-000 NUTN/AIR CON |
09148-06007-000 |
from US $0.86 |
||
|
26
|
26
82110-50G00-000
Latch, hood
|
82110-50G00-000 |
— | ||
|
27
|
27
09138-06049-000 BOLT(6X12) |
09138-06049-000 |
US $1.12 |
||
|
28
|
28
82160-50G00-000
Cable, hood latch release
|
82160-50G00-000 |
— | ||
|
29
|
29
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
30
|
30
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
30
|
30
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
30
|
30
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
