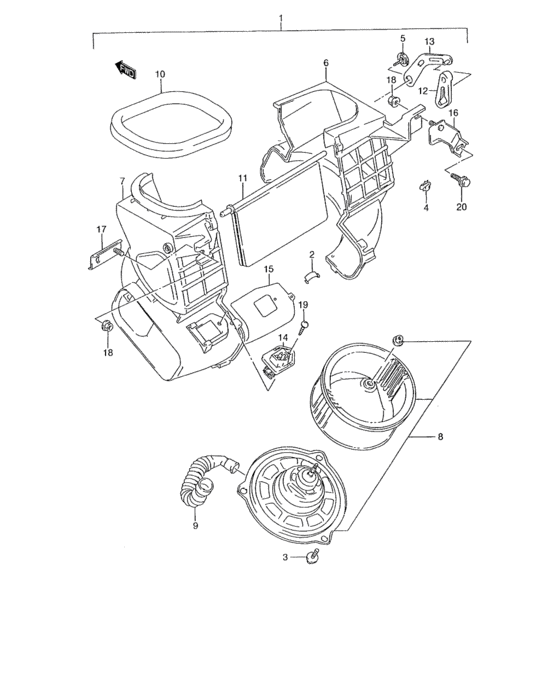

B heater blower (B HEATER BLOWER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-50G12-000
Blower unit
|
74200-50G12-000 |
— | ||
|
2
|
2
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
3
|
3
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
4
|
4
74151-70D01-000 CLAMP,CONTROL WIRE |
74151-70D01-000 |
US $4.12 |
||
|
5
|
5
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
6
|
6
74211-50G10-000
Case, blower rh
|
74211-50G10-000 |
— | ||
|
7
|
7
74212-50G11-000
Case, blower lh
|
74212-50G11-000 |
— | ||
|
8
|
8
74250-50G10-000
Motor assy
|
74250-50G10-000 |
— | ||
|
9
|
9
74252-50G10-000
Hose, motor
|
74252-50G10-000 |
— | ||
|
10
|
10
74262-86000-000 PACKING,AIR |
74262-86000-000 |
US $8.06 |
||
|
11
|
11
74271-60B00-000
Damper
|
74271-60B00-000 |
— | ||
|
12
|
12
74281-60B10-000
PLATE,LINK
|
74281-60B10-000 |
— | ||
|
13
|
13
74282-60B11-000
LEVER,CONT
|
74282-60B11-000 |
— | ||
|
14
|
14
74290-50G00-000
Resister
|
74290-50G00-000 |
— | ||
|
15
|
15
74291-60B10-000
PLATE,RESISTOR
|
74291-60B10-000 |
— | ||
|
16
|
16
74295-50G10-000
Bracket, blower unit rh
|
74295-50G10-000 |
— | ||
|
17
|
17
74296-50G10-000
Bracket, blower unit lh
|
74296-50G10-000 |
— | ||
|
18
|
18
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
03112-04163-000
Screw
|
03112-04163-000 |
— | ||
| replacement | |||||
|
19
|
19
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
20
|
20
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
