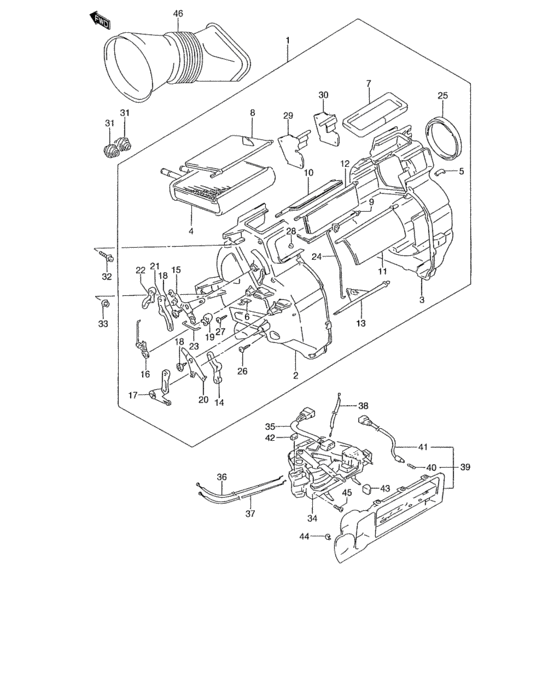

B heater unit (B HEATER UNIT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-60BB1-000
Heater unit
|
74100-60BB1-000 |
— | ||
|
2
|
2
74111-50G10-000
Case, htr no.1
|
74111-50G10-000 |
— | ||
|
3
|
3
74112-50G10-000
Case, htr no.2
|
74112-50G10-000 |
— | ||
|
4
|
4
74120-60B00-000 CORE,HTR |
74120-60B00-000 |
US $492.80 |
||
|
5
|
5
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
6
|
6
74151-70D01-000 CLAMP,CONTROL WIRE |
74151-70D01-000 |
US $4.12 |
||
|
7
|
7
74162-60B00-000
パッキング,デフロスタ
|
74162-60B00-000 |
— | ||
| replacement | |||||
|
7
|
7
74162-84100-000 PACKING |
74162-84100-000 |
US $6.08 |
||
|
8
|
8
74171-60B11-000 DAMPER,A/M,NO.1 |
74171-60B11-000 |
US $16.04 |
||
|
9
|
9
74172-60G00-000 DAMPER,A/M,NO.2<-74172-60B01 |
74172-60G00-000 |
US $15.97 |
||
|
10
|
10
74173-60B01-000 DAMPER,DEFROSTER |
74173-60B01-000 |
US $17.66 |
||
|
11
|
11
74174-60B00-000 DAMPER,VENT&DEF |
74174-60B00-000 |
US $21.34 |
||
|
12
|
12
74174-86000-000 DAMPER,HOT |
74174-86000-000 |
US $17.66 |
||
|
13
|
13
74175-60B11-000
DAMPER,HOT
|
74175-60B11-000 |
— | ||
|
14
|
14
74180-60B10-000
Link,hot
|
74180-60B10-000 |
— | ||
|
15
|
15
74182-60B11-000
LINK,MODE
|
74182-60B11-000 |
— | ||
|
16
|
16
74170-60B10-000
LEVER ASSY,VENT
|
74170-60B10-000 |
— | ||
|
17
|
17
74190-60B21-000
LEVER SET,TEMP
|
74190-60B21-000 |
— | ||
|
18
|
18
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
19
|
19
74184-60B10-000
LINK,V/D
|
74184-60B10-000 |
— | ||
|
20
|
20
74185-60B11-000
LEVER,CONT
|
74185-60B11-000 |
— | ||
|
21
|
21
74187-60B11-000
LINK,V/D
|
74187-60B11-000 |
— | ||
|
22
|
22
74188-60B10-000
LINK,DEF
|
74188-60B10-000 |
— | ||
|
23
|
23
74191-60B00-000 SHAFT,MODE |
74191-60B00-000 |
US $4.12 |
||
|
24
|
24
74192-60B00-000 SHAFT,HOT |
74192-60B00-000 |
US $4.97 |
||
|
25
|
25
74117-50F00-000 PACKING,AIR |
74117-50F00-000 |
from US $6.45 |
||
|
26
|
26
03112-04123-000
Screw
95 MODEL,96 MODEL |
03112-04123-000 |
— | ||
| replacement | |||||
|
26
|
26
03111-0412A-000 SCREW95 MODEL,96 MODEL |
03111-0412A-000 |
from US $3.04 |
||
|
27
|
27
03112-04123-000
Screw
|
03112-04123-000 |
— | ||
| replacement | |||||
|
27
|
27
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
28
|
28
74163-60B00-000 PACKING,DAMPER |
74163-60B00-000 |
US $2.94 |
||
|
29
|
29
74113-50G00-000 PLATE,AIR GUIDE,L |
74113-50G00-000 |
US $9.94 |
||
|
30
|
30
74114-50G00-000 PLATE,AIR GUIDE,R |
74114-50G00-000 |
US $9.94 |
||
|
31
|
31
74812-60B00-000 GROMMET,HTR |
74812-60B00-000 |
US $4.31 |
||
|
32
|
32
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
32
|
32
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
33
|
33
08361-25063-000
Nut
|
08361-25063-000 |
— | ||
| replacement | |||||
|
33
|
33
08361-2506A-000 NUT |
08361-2506A-000 |
US $0.80 |
||
|
34
|
34
74400-60EB0-000
Lever assy, htr control
|
74400-60EB0-000 |
— | ||
|
35
|
35
74436-50G00-000
Harness, fan switch
|
74436-50G00-000 |
— | ||
|
36
|
36
74451-50G10-000
Cable, mode
|
74451-50G10-000 |
— | ||
|
37
|
37
74452-50G10-000
Cable, temp control
(L:316, BLUE) |
74452-50G10-000 |
— | ||
|
38
|
38
74453-50G10-000
Cable, air inlet
|
74453-50G10-000 |
— | ||
|
39
|
39
74510-50G00-5PK
Panel, htr control
N/AIR CON |
74510-50G00-5PK |
— | ||
|
39
|
39
74510-50G10-5PK
Panel, htr control
W/AIR CON |
74510-50G10-5PK |
— | ||
|
40
|
40
73856-60E01-000 BULB,HTR CONTROL PANEL |
73856-60E01-000 |
US $2.74 |
||
|
41
|
41
74521-50G00-000
Harness, htr control panel
|
74521-50G00-000 |
— | ||
|
42
|
42
74541-60E00-000
CLIP,CONTROL CABLE
|
74541-60E00-000 |
— | ||
|
43
|
43
74551-60E00-5PK KNOB,CONTROL LEVER |
74551-60E00-5PK |
US $1.60 |
||
|
44
|
44
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.80 |
||
|
45
|
45
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
45
|
45
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
46
|
46
74611-60B01-000
Duct, air
N/AIR CON |
74611-60B01-000 |
— | ||
| replacement | |||||
|
46
|
46
74611-61B00-000
DUCT,AIR
N/AIR CON |
74611-61B00-000 |
— | ||
