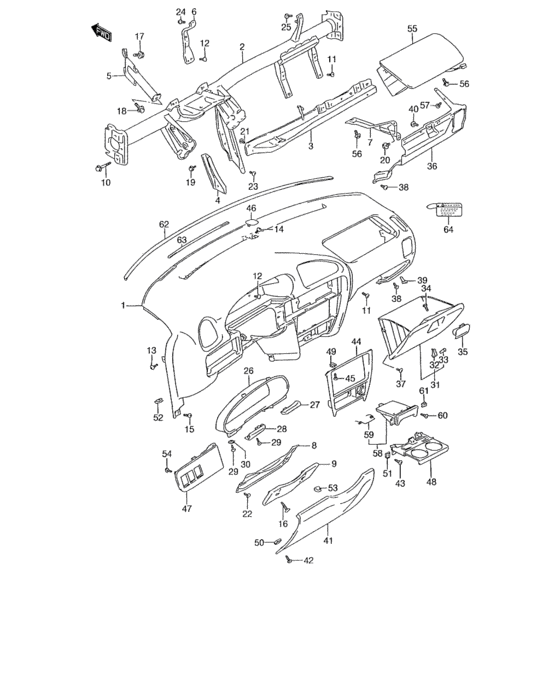

B instrument panel (B INSTRUMENT PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-50G00-6WV
Panel, i/p main
|
73111-50G00-6WV |
— | ||
|
2
|
2
73210-50G00-000
Member, strg support
|
73210-50G00-000 |
— | ||
|
3
|
3
73231-50G00-000
Member, i/p lower
|
73231-50G00-000 |
— | ||
|
4
|
4
73241-50G00-000
Brace, strg support member
|
73241-50G00-000 |
— | ||
|
5
|
5
73250-50G00-000
Stiffener, cowl upper
|
73250-50G00-000 |
— | ||
|
6
|
6
73261-50G00-000
STAY,SPEEDOMETER
|
73261-50G00-000 |
— | ||
|
7
|
7
73271-50G00-000
Brace, passenger knee bolster
|
73271-50G00-000 |
— | ||
|
8
|
8
73281-50G00-000
PANEL,DRIVER KNEE BOLSTER
|
73281-50G00-000 |
— | ||
|
9
|
9
73282-50G00-000
Absorber, driver knee bolster
|
73282-50G00-000 |
— | ||
|
10
|
10
73291-50G01-000
Bolt
|
73291-50G01-000 |
— | ||
| replacement | |||||
|
10
|
10
73291-50G20-000 BOLT,STRG SPRT MBR SIDE |
73291-50G20-000 |
US $2.91 |
||
|
11
|
11
73459-50G00-000
Screw, pass knee bolster panel
|
73459-50G00-000 |
— | ||
|
12
|
12
73459-50G00-000
Screw, pass knee bolster panel
|
73459-50G00-000 |
— | ||
|
13
|
13
73459-50G00-000
Screw, pass knee bolster panel
|
73459-50G00-000 |
— | ||
|
14
|
14
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
15
|
15
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
15
|
15
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
16
|
16
09409-08321-5ES CLIP(BLACK)(BLACK) |
09409-08321-5ES |
US $1.76 |
||
|
17
|
17
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
18
|
18
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
18
|
18
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
19
|
19
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
19
|
19
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
19
|
19
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
20
|
20
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
20
|
20
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
21
|
21
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
21
|
21
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
22
|
22
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
22
|
22
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
23
|
23
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
23
|
23
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
24
|
24
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
25
|
25
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
25
|
25
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
26
|
26
73311-50G00-0CA
Panel, i/p cluster
|
73311-50G00-0CA |
— | ||
|
27
|
27
73321-50G00-6WV
Cover, cluster lower rh
|
73321-50G00-6WV |
— | ||
|
28
|
28
73331-50G00-6WV
Cover, cluster lower lh
|
73331-50G00-6WV |
— | ||
|
29
|
29
09132-05044-000
Screw, cover
|
09132-05044-000 |
— | ||
|
30
|
30
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
31
|
31
73410-50G00-6WV
Box assy, glove
|
73410-50G00-6WV |
— | ||
|
32
|
32
73422-50G00-000 HINGE,GLOVE BOX |
73422-50G00-000 |
US $3.61 |
||
|
33
|
33
73423-50G00-000 PIN,GLOVE BOX HINGEPin, box |
73423-50G00-000 |
from US $2.43 |
||
|
34
|
34
73419-50G00-000
Screw, glove box lock
|
73419-50G00-000 |
— | ||
|
35
|
35
73430-50G00-6WV
Lock, glove box
|
73430-50G00-6WV |
— | ||
|
36
|
36
73450-50G00-000
Panel, pass knee bolster
|
73450-50G00-000 |
— | ||
|
37
|
37
73459-50G00-000
Screw, pass knee bolster panel
|
73459-50G00-000 |
— | ||
|
38
|
38
73459-50G00-000
Screw, pass knee bolster panel
|
73459-50G00-000 |
— | ||
|
39
|
39
73461-77E00-000 CUSHION,GLV BOX LIDCushion, glove box lid side |
73461-77E00-000 |
US $5.60 |
||
|
40
|
40
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
40
|
40
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
41
|
41
73811-50G00-6WV
Cover, strg column hole
|
73811-50G00-6WV |
— | ||
|
42
|
42
73819-50G00-000
Screw, front ashtray
|
73819-50G00-000 |
— | ||
|
43
|
43
73819-50G00-000
Screw, front ashtray
|
73819-50G00-000 |
— | ||
|
44
|
44
73821-50G00-5PK
Garnish, i/p center
|
73821-50G00-5PK |
— | ||
|
45
|
45
73829-50G00-000
Screw, i/p center garnish
|
73829-50G00-000 |
— | ||
| replacement | |||||
|
45
|
45
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
46
|
46
73831-50G00-6WV
Cover, i/p main
|
73831-50G00-6WV |
— | ||
|
47
|
47
73841-50G00-5PK
Garnish, i/p outside
|
73841-50G00-5PK |
— | ||
|
48
|
48
73850-50G00-5PK
Holder, cup
|
73850-50G00-5PK |
— | ||
|
49
|
49
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
50
|
50
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
51
|
51
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
52
|
52
09148-05039-000 NUT |
09148-05039-000 |
US $1.28 |
||
|
53
|
53
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.80 |
||
|
54
|
54
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
54
|
54
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
55
|
55
73910-50G50-6WV
Module assy, passenger air bag
(GRAY),:95 MODEL,96 MODEL,97 MODEL,98 MODEL |
73910-50G50-6WV |
— | ||
| replacement | |||||
|
55
|
55
73910-50G60-6WV
Module assy, passenger air bag
(GRAY),:95 MODEL,96 MODEL,97 MODEL,98 MODEL |
73910-50G60-6WV |
— | ||
|
55
|
55
73910-50G70-6WV
Module assy, passenger air bag
(GRAY),:99 MODEL,00 MODEL,01 MODEL |
73910-50G70-6WV |
— | ||
|
55
|
55
73910-50G60-6WV
Module assy, passenger air bag
(GRAY),Canada:95 MODEL,96 MODEL,97 MODEL,98 MODEL |
73910-50G60-6WV |
— | ||
|
55
|
55
73910-50G80-6WV
Module assy, passenger air bag
(GRAY),Canada:99 MODEL,00 MODEL,01 MODEL |
73910-50G80-6WV |
— | ||
|
56
|
56
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
56
|
56
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
56
|
56
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
57
|
57
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
57
|
57
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
58
|
58
89810-50G00-5PK
アッシュトレー,フロント(ブラック)
|
89810-50G00-5PK |
— | ||
| replacement | |||||
|
58
|
58
89810-50G10-5PK ASHTRAY,FR |
89810-50G10-5PK |
US $99.20 |
||
|
59
|
59
89813-60E00-000 SPRING,PROTECTOR |
89813-60E00-000 |
US $1.52 |
||
|
60
|
60
73819-50G00-000
Screw, front ashtray
|
73819-50G00-000 |
— | ||
|
61
|
61
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
62
|
62
73118-50G00-000
Seal, i/p
|
73118-50G00-000 |
— | ||
|
63
|
63
73119-50G00-000
Seal, defroster hole
|
73119-50G00-000 |
— | ||
|
64
|
64
73917-77E00-000
TAG,AIR BAG WARNING
, 2S2AB21H V6603065~ |
73917-77E00-000 |
— | ||
| replacement | |||||
|
64
|
64
73917-77E10-000
TAG,AIR BAG WARNING
, 2S2AB21H V6603065~ |
73917-77E10-000 |
— | ||
|
64
|
64
73917-77E10-000
TAG,AIR BAG WARNING
Canada, 2S2AB21H V6603065~ |
73917-77E10-000 |
— | ||
