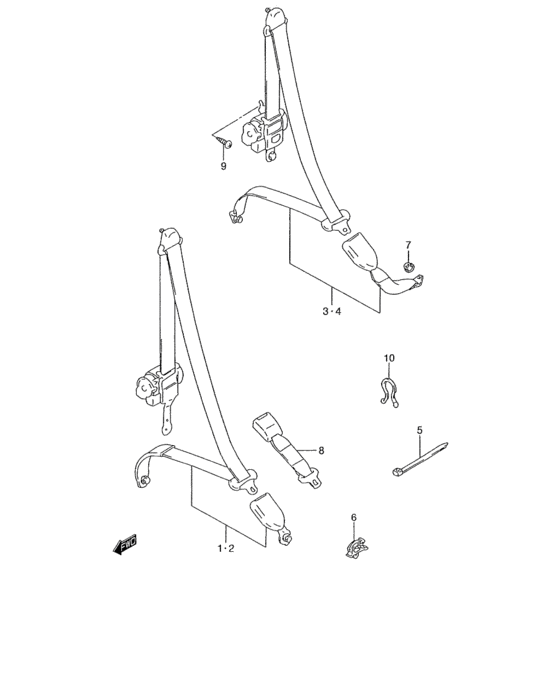

B seat belt (B SEAT BELT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-50822-6YH
Belt assy, front rh
95 MODEL,96 MODEL,97 MODEL,98 MODEL: |
84901-50822-6YH |
— | ||
|
1
|
1
84901-50G50-6YH
Belt assy, front rh
95 MODEL,96 MODEL,97 MODEL,98 MODEL:Canada |
84901-50G50-6YH |
— | ||
|
1
|
1
84901-50850-6YH
Belt assy, front rh
99 MODEL,00 MODEL,01 MODEL: |
84901-50850-6YH |
— | ||
|
1
|
1
84901-50G80-6YH
Belt assy, front rh
99 MODEL,00 MODEL,01 MODEL:Canada |
84901-50G80-6YH |
— | ||
|
2
|
2
84902-50812-6YH
Belt assy, front lh
95 MODEL,96 MODEL,97 MODEL,98 MODEL: |
84902-50812-6YH |
— | ||
|
2
|
2
84902-50G50-6YH
Belt assy, front lh
95 MODEL,96 MODEL,97 MODEL,98 MODEL:Canada |
84902-50G50-6YH |
— | ||
|
2
|
2
84902-50840-6YH
Belt assy, front lh
99 MODEL,00 MODEL,01 MODEL: |
84902-50840-6YH |
— | ||
|
2
|
2
84902-50G60-6YH
Belt assy, front lh
99 MODEL,00 MODEL,01 MODEL:Canada |
84902-50G60-6YH |
— | ||
|
3
|
3
84904-50812-6YH
Belt assy, rear rh
95 MODEL,96 MODEL: |
84904-50812-6YH |
— | ||
|
3
|
3
84904-50G21-6YH
Belt assy, rear rh
95 MODEL,96 MODEL:Canada |
84904-50G21-6YH |
— | ||
|
3
|
3
84904-50840-6YH
Belt assy, rear rh
97 MODEL,98 MODEL: |
84904-50840-6YH |
— | ||
|
3
|
3
84904-50G40-6YH
Belt assy, rear rh
97 MODEL,98 MODEL:Canada |
84904-50G40-6YH |
— | ||
|
3
|
3
84904-50860-6YH
Belt assy, rear rh
99 MODEL,00 MODEL,01 MODEL: |
84904-50860-6YH |
— | ||
|
3
|
3
84904-50G80-6YH
Belt assy, rear rh
99 MODEL,00 MODEL,01 MODEL:Canada |
84904-50G80-6YH |
— | ||
|
4
|
4
84905-50812-6YH
Belt assy, rear lh
95 MODEL,96 MODEL: |
84905-50812-6YH |
— | ||
|
4
|
4
84905-50G21-6YH
Belt assy, rear lh
95 MODEL,96 MODEL:Canada |
84905-50G21-6YH |
— | ||
|
4
|
4
84905-50840-6YH
Belt assy, rear lh
97 MODEL,98 MODEL: |
84905-50840-6YH |
— | ||
|
4
|
4
84905-50G40-6YH
Belt assy, rear lh
97 MODEL,98 MODEL:Canada |
84905-50G40-6YH |
— | ||
|
4
|
4
84905-50860-6YH
Belt assy, rear lh
99 MODEL,00 MODEL,01 MODEL: |
84905-50860-6YH |
— | ||
|
4
|
4
84905-50G80-6YH
Belt assy, rear lh
99 MODEL,00 MODEL,01 MODEL:Canada |
84905-50G80-6YH |
— | ||
|
5
|
5
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 95 MODEL,96 MODEL,97 MODEL |
09407-14403-000 |
from US $2.08 |
||
|
6
|
6
09403-06316-000 CLIP |
09403-06316-000 |
US $15.50 |
||
|
7
|
7
09159-11001-000
NUT
|
09159-11001-000 |
— | ||
|
8
|
8
84900-60810-000
Extender, seat belt 9"
OPT, L:230 **NOTE: ORDERS OF SEAT B,REQUIRE A SPECIAL FORM TO BE FILLED,DRIVER OR PASSENGER THAT WILL BE US,EXTENDER. PLEASE REFER TO THE PARTS,BULLETIN #99-10-4 DATED 11/15/99. |
84900-60810-000 |
— | ||
| replacement | |||||
|
8
|
8
84900-60811-000
Belt set,extender(230)
OPT, L:230 **NOTE: ORDERS OF SEAT B,REQUIRE A SPECIAL FORM TO BE FILLED,DRIVER OR PASSENGER THAT WILL BE US,EXTENDER. PLEASE REFER TO THE PARTS,BULLETIN #99-10-4 DATED 11/15/99. |
84900-60811-000 |
— | ||
|
8
|
8
84900-60820-000
Extender, seat belt
OPT, L:380 **NOTE: ORDERS OF SEAT B,REQUIRE A SPECIAL FORM TO BE FILLED,DRIVER OR PASSENGER THAT WILL BE US,EXTENDER. PLEASE REFER TO THE PARTS,BULLETIN #99-10-4 DATED 11/15/99. |
84900-60820-000 |
— | ||
| replacement | |||||
|
8
|
8
84900-60821-000
BELT SET,EXTENDER 380
OPT, L:380 **NOTE: ORDERS OF SEAT B,REQUIRE A SPECIAL FORM TO BE FILLED,DRIVER OR PASSENGER THAT WILL BE US,EXTENDER. PLEASE REFER TO THE PARTS,BULLETIN #99-10-4 DATED 11/15/99. |
84900-60821-000 |
— | ||
|
9
|
9
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
10
|
10
85198-50G00-000
Clamp, harness
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
85198-50G00-000 |
— | ||
| replacement | |||||
|
10
|
10
85198-70E00-000 TIE98 MODEL,99 MODEL,00 MODEL,01 MODEL |
85198-70E00-000 |
US $3.02 |
||
