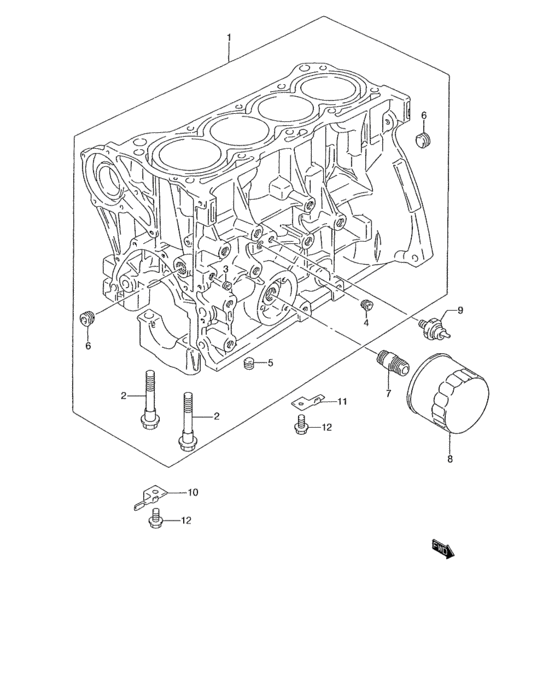

Cylinder (CYLINDER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-64B01-000
Block assy, cylinder
95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL,<-11200-51G00 |
11200-64B01-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-52G03-000 BLOCK ASSY,CYLINDER95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL,<-11200-51G00 |
11200-52G03-000 |
US $2,160.32 |
||
|
1
|
1
11200-51G02-000
Block assy, cylinder
00 MODEL |
11200-51G02-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-52G03-000 BLOCK ASSY,CYLINDER00 MODEL |
11200-52G03-000 |
US $2,160.32 |
||
|
1
|
1
11200-52G01-000
ブロックアッシ,シリンダ
01 MODEL |
11200-52G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-52G03-000 BLOCK ASSY,CYLINDER01 MODEL |
11200-52G03-000 |
US $2,160.32 |
||
|
2
|
2
11260-50G00-000
ボルト,ベアリングキャップ
|
11260-50G00-000 |
— | ||
| replacement | |||||
|
2
|
2
11260-50G01-000 BOLT,CRANK BEARING CAP |
11260-50G01-000 |
US $1.98 |
||
|
3
|
3
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
4
|
4
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
4
|
4
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
5
|
5
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
7
|
7
11241-73003-000 STAND,OIL FILTER |
11241-73003-000 |
US $6.40 |
||
|
8
|
8
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil 95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL,00 MODEL |
16510-82703-000 |
from US $13.41 |
||
|
8
|
8
16510-61A01-000
フィルタアッシ,オイル(TOKYO ROKI)
01 MODEL |
16510-61A01-000 |
— | ||
| replacements | |||||
|
8
|
8
16510-61A20-MHL
Filter assy, oil
01 MODEL |
16510-61A20-MHL |
— | ||
|
8
|
8
16510-61A31-000
FILTER ASSY,OIL WAKO
01 MODEL |
16510-61A31-000 |
— | ||
|
8
|
8
16510-61A20-000
フィルタアッシ,オイル(KNECHT)
01 MODEL |
16510-61A20-000 |
— | ||
| replacements | |||||
|
8
|
8
16510-61A20-MHL
Filter assy, oil
01 MODEL |
16510-61A20-MHL |
— | ||
|
8
|
8
16510-61A21-000
FILTER ASSY,OIL MAHLE
01 MODEL |
16510-61A21-000 |
— | ||
|
9
|
9
37820-82001-000
Switch assy, oil pressure
|
37820-82001-000 |
— | ||
| replacement | |||||
|
9
|
9
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.02 |
||
|
10
|
10
11213-72F01-000
Plate, breather front
|
11213-72F01-000 |
— | ||
| replacement | |||||
|
10
|
10
11213-72F02-000 PLATE,BREATHER FRONT |
11213-72F02-000 |
US $3.28 |
||
|
11
|
11
11214-72F01-000 PLATE,BREATHER REAR |
11214-72F01-000 |
US $3.28 |
||
|
12
|
12
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
12
|
12
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
