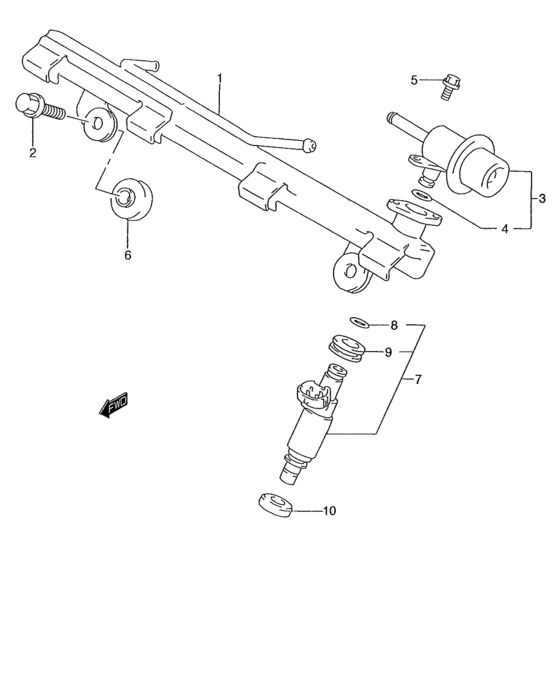

Delivery pipe (98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-52G01-000
PIPE,FUEL DELIVERY
|
15730-52G01-000 |
— | ||
|
2
|
2
09103-08341-000 BOLT(8X30) |
09103-08341-000 |
from US $3.24 |
||
|
3
|
3
15610-52G00-000
REGULATOR ASSY,FUEL PRESSURE
|
15610-52G00-000 |
— | ||
|
4
|
4
15710-09300-000 O-RING |
15710-09300-000 |
from US $1.60 |
||
|
5
|
5
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.01 |
||
|
6
|
6
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe |
15735-58B00-000 |
US $2.72 |
||
|
7
|
7
15710-52G00-000 INJECTOR ASSY,FUEL |
15710-52G00-000 |
US $356.96 |
||
|
8
|
8
15710-09300-000 O-RING |
15710-09300-000 |
from US $1.60 |
||
|
9
|
9
15720-09300-000 GROMMET |
15720-09300-000 |
from US $1.52 |
||
|
10
|
10
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.32 |
