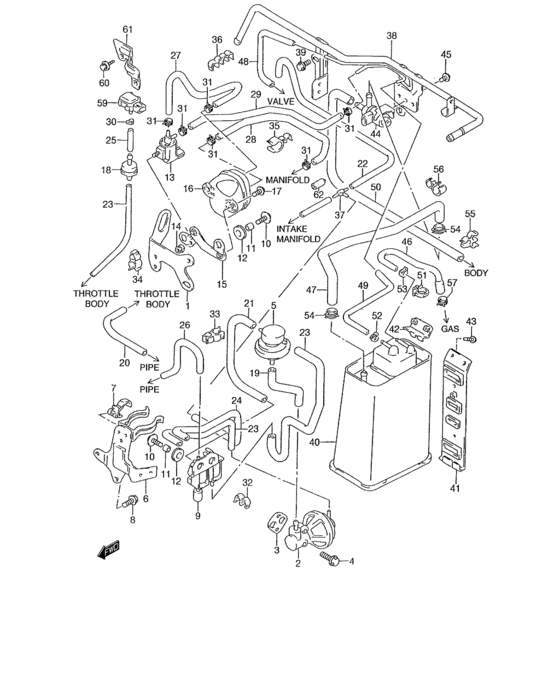

Emission control (96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-50G00-000
Hook,engine
|
11851-50G00-000 |
— | ||
|
2
|
2
18111-60B10-000
Valve, egr w/calif
AT |
18111-60B10-000 |
— | ||
| replacement | |||||
|
2
|
2
18111-60B1V-000
VALVE,EGR
AT |
18111-60B1V-000 |
— | ||
|
3
|
3
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
4
|
4
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
5
|
5
18112-60B00-000 MODULATOR ASSY,EGR |
18112-60B00-000 |
US $99.57 |
||
|
6
|
6
18451-51G10-000
Bracket, vacuum solenoid valve
|
18451-51G10-000 |
— | ||
|
7
|
7
09403-14307-000 CLAMP |
09403-14307-000 |
US $21.30 |
||
|
8
|
8
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
18117-50G10-000
VALVE ASSY,3WAY SOLENOID
|
18117-50G10-000 |
— | ||
|
10
|
10
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
US $12.50 |
||
|
11
|
11
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
12
|
12
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
13
|
13
18117-58B10-000 SOLENOID,DUTY FOR PURGE |
18117-58B10-000 |
US $158.08 |
||
|
14
|
14
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
18452-50G00-000
BRACKET,PURGE VSV
|
18452-50G00-000 |
— | ||
|
16
|
16
18811-51G51-000
SURGE TANK,EVAP CANISTER
|
18811-51G51-000 |
— | ||
|
17
|
17
09122-66004-000
Screw,6x14
|
09122-66004-000 |
— | ||
| replacement | |||||
|
17
|
17
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
18
|
18
18133-81150-000 FILTER,GAS |
18133-81150-000 |
US $27.60 |
||
|
19
|
19
18471-51G00-000
HOSE,MODULATOR
|
18471-51G00-000 |
— | ||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
23
|
23
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
23
|
23
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
24
|
24
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
24
|
24
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
25
|
25
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
25
|
25
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
27
|
27
09355-40805-600 HOSE(4X8X600) |
09355-40805-600 |
from US $6.24 |
||
|
28
|
28
09355-40805-600 HOSE(4X8X600) |
09355-40805-600 |
from US $6.24 |
||
|
29
|
29
09359-40801-600 HOSEHose, w/g cont inlet |
09359-40801-600 |
US $16.04 |
||
|
30
|
30
09401-06405-000 CLIP |
09401-06405-000 |
from US $1.12 |
||
|
31
|
31
09401-08409-000 CLIP |
09401-08409-000 |
from US $0.73 |
||
|
32
|
32
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
33
|
33
09408-00102-000 CLIPClip |
09408-00102-000 |
US $13.20 |
||
|
34
|
34
09408-00114-000 CLIP |
09408-00114-000 |
US $21.70 |
||
|
35
|
35
09408-00129-000
Clip, vacuum hose
|
09408-00129-000 |
— | ||
|
36
|
36
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
37
|
37
09367-04002-000 CONNECTOR |
09367-04002-000 |
US $4.80 |
||
|
38
|
38
18340-50G10-000
Pipe, vacuum
|
18340-50G10-000 |
— | ||
|
39
|
39
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
39
|
39
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
40
|
40
18560-51G50-000
Canister
|
18560-51G50-000 |
— | ||
|
41
|
41
18575-51G51-000
Bracket assy, canister
|
18575-51G51-000 |
— | ||
|
42
|
42
18576-51G50-000
Bracket, canister
|
18576-51G50-000 |
— | ||
|
43
|
43
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
43
|
43
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
44
|
44
18117-58B30-000
VALVE,AIR CUT OFF
|
18117-58B30-000 |
— | ||
|
45
|
45
02112-06103-000
Screw 6x10
|
02112-06103-000 |
— | ||
| replacement | |||||
|
45
|
45
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
46
|
46
18561-51G50-000
Hose, vacuum
|
18561-51G50-000 |
— | ||
|
47
|
47
18563-51G60-000
Hose, vacuum
|
18563-51G60-000 |
— | ||
|
48
|
48
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
48
|
48
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
49
|
49
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
50
|
50
18564-51G60-000
Hose, vacuum
|
18564-51G60-000 |
— | ||
|
51
|
51
09403-11404-000
Clip, vacuum hose
96 MODEL |
09403-11404-000 |
— | ||
|
51
|
51
09403-12312-000 CLUMPClamp, air vent hose 97 MODEL |
09403-12312-000 |
from US $5.36 |
||
|
52
|
52
09401-08411-000 CLIP |
09401-08411-000 |
from US $0.91 |
||
|
53
|
53
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
54
|
54
09401-13416-000
Clamp
|
09401-13416-000 |
— | ||
| replacement | |||||
|
54
|
54
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.60 |
||
|
55
|
55
09408-00042-000
CLIP
|
09408-00042-000 |
— | ||
|
56
|
56
09408-00148-000 CLAMP |
09408-00148-000 |
US $25.80 |
||
|
57
|
57
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
58
|
58
09408-00130-000
クランプ
|
09408-00130-000 |
— | ||
|
59
|
59
18590-50G10-000 SENSOR,PRESSURE |
18590-50G10-000 |
US $316.48 |
||
|
60
|
60
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
60
|
60
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
61
|
61
18595-50G00-000
Bracket, pressure sensor
|
18595-50G00-000 |
— | ||
|
62
|
62
09251-05006-000 CAP(OD:11)Cap, balancer cover |
09251-05006-000 |
from US $9.11 |
||
|
63
|
63
18491-61A00-000 PLATE,EGR VALVE97 MODEL:California |
18491-61A00-000 |
US $9.92 |
||
|
64
|
64
01550-06123-000
Bolt
97 MODEL:California |
01550-06123-000 |
— | ||
| replacements | |||||
|
64
|
64
01550-0612B-000 BOLTBolt, clamp 97 MODEL:California |
01550-0612B-000 |
from US $0.76 |
||
|
64
|
64
01550-0612A-000 BOLT97 MODEL:California |
01550-0612A-000 |
from US $0.76 |
||
