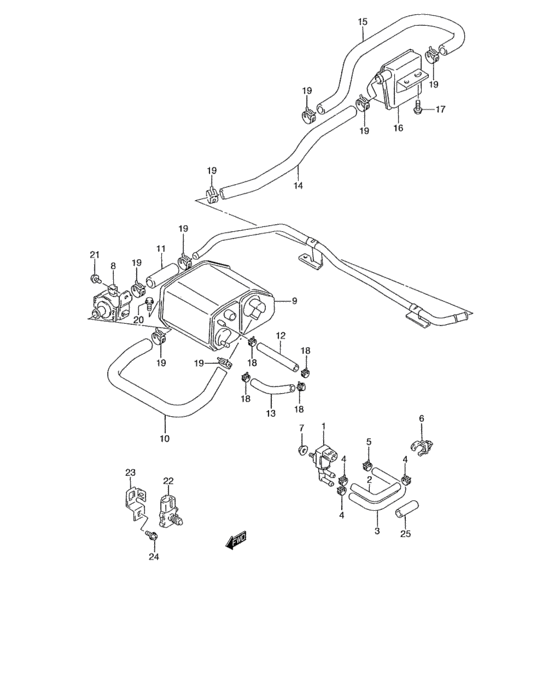

Emission control (98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge |
18117-52G00-000 |
from US $70.63 |
||
|
2
|
2
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
3
|
3
18561-52G01-000
HOSE,PURGE
|
18561-52G01-000 |
— | ||
|
4
|
4
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
5
|
5
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
6
|
6
09403-14307-000 CLAMP98 MODEL |
09403-14307-000 |
US $21.30 |
||
|
7
|
7
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
18117-51G00-000
Valve, air cut off
|
18117-51G00-000 |
— | ||
|
9
|
9
18560-51G10-000
Canister
|
18560-51G10-000 |
— | ||
|
10
|
10
18563-51G10-000
Hose, vacuum
|
18563-51G10-000 |
— | ||
|
11
|
11
18565-51G10-000
Hose, vacuum
|
18565-51G10-000 |
— | ||
|
12
|
12
18566-51G00-000
Hose, vacuum
|
18566-51G00-000 |
— | ||
|
13
|
13
18567-51G00-000
Hose, vacuum
|
18567-51G00-000 |
— | ||
|
14
|
14
18568-51G00-000
Hose, filter inlet
|
18568-51G00-000 |
— | ||
|
15
|
15
18569-51G00-000
Hose, filter outlet
|
18569-51G00-000 |
— | ||
|
16
|
16
18581-51G00-000 FILTER,CSTR AIR SUCTION |
18581-51G00-000 |
US $30.73 |
||
|
17
|
17
09116-06173-000
Bolt
|
09116-06173-000 |
— | ||
| replacement | |||||
|
17
|
17
09116-06205-000 BOLT(6X16) |
09116-06205-000 |
from US $0.96 |
||
|
18
|
18
09401-13416-000
Clamp
|
09401-13416-000 |
— | ||
| replacement | |||||
|
18
|
18
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.60 |
||
|
19
|
19
09401-22404-000
Clip
|
09401-22404-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-22405-000 CLIP |
09401-22405-000 |
US $20.20 |
||
|
20
|
20
02162-05123-000
Screw
|
02162-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0512A-000 SCREW |
02162-0512A-000 |
from US $0.80 |
||
|
21
|
21
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
21
|
21
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
22
|
22
18590-52G00-000
Sensor, map
|
18590-52G00-000 |
— | ||
|
23
|
23
18595-52G00-000
Bracket, map sensor
|
18595-52G00-000 |
— | ||
|
24
|
24
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
24
|
24
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
25
|
25
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper 98 MODEL |
09352-13162-600 |
from US $11.40 |
||
|
25
|
25
15851-51G00-000
PROTECTOR,PURGE HOSE
99 MODEL,00 MODEL,01 MODEL |
15851-51G00-000 |
— | ||
