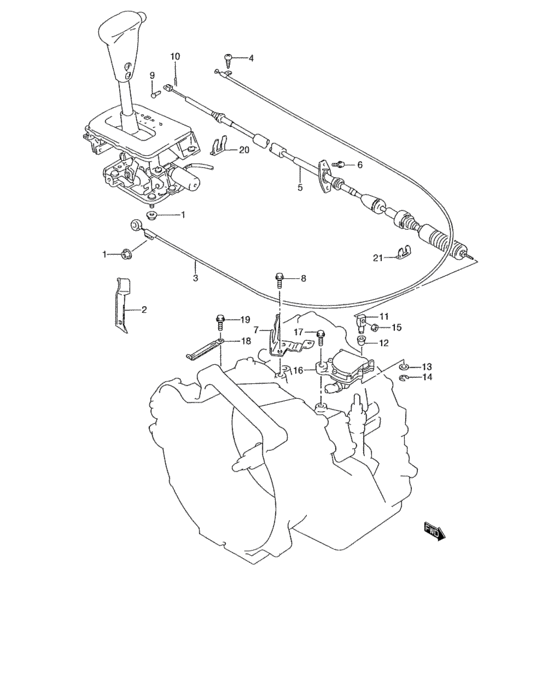

Gear shift controls (AT:95, 96 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
1
|
1
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
2
|
2
28261-62B20-000
CLAMP,MNL SELECTOR CABLE
|
28261-62B20-000 |
— | ||
|
3
|
3
28551-62E10-000
Cable comp,key interlock
95 MODEL |
28551-62E10-000 |
— | ||
|
3
|
3
28551-52G00-000
Cable, key inter lock
96 MODEL |
28551-52G00-000 |
— | ||
|
4
|
4
09125-05061-000 SCREW(5X8) |
09125-05061-000 |
US $9.60 |
||
|
5
|
5
28210-52GB0-000
Cable assy, select
95 MODEL |
28210-52GB0-000 |
— | ||
|
5
|
5
28210-52GB1-000
Cable assy, select
96 MODEL |
28210-52GB1-000 |
— | ||
|
6
|
6
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
6
|
6
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
7
|
7
28221-62B00-000
BRACKET,SELECT CABLE
|
28221-62B00-000 |
— | ||
|
8
|
8
09103-08334-000 BOLT(8X16) |
09103-08334-000 |
from US $6.56 |
||
|
9
|
9
09200-06046-000 PIN |
09200-06046-000 |
US $23.90 |
||
|
10
|
10
09385-06004-000
スナップピン
|
09385-06004-000 |
— | ||
| replacement | |||||
|
10
|
10
09385-06001-000 CLIP |
09385-06001-000 |
from US $4.69 |
||
|
11
|
11
28291-78233-000 JOINT,CABLE |
28291-78233-000 |
US $12.32 |
||
|
12
|
12
09305-08012-000 BUSH |
09305-08012-000 |
US $1.28 |
||
|
13
|
13
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
14
|
14
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
14
|
14
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
15
|
15
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
15
|
15
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
16
|
16
37720-60E01-000 SWITCH ASSY,SHIFT LEVER95 MODEL |
37720-60E01-000 |
US $159.71 |
||
|
16
|
16
37720-50G10-000 SWITCH ASSY,SHIFT LEVER96 MODEL |
37720-50G10-000 |
US $136.16 |
||
|
17
|
17
01580-08253-000
Bolt
|
01580-08253-000 |
— | ||
| replacement | |||||
|
17
|
17
01580-0825A-000 Bolt |
01580-0825A-000 |
from US $4.34 |
||
|
18
|
18
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
18
|
18
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
19
|
19
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
20
|
20
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
20
|
20
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
21
|
21
09383-19001-000 E RINGClip |
09383-19001-000 |
from US $2.72 |
||
