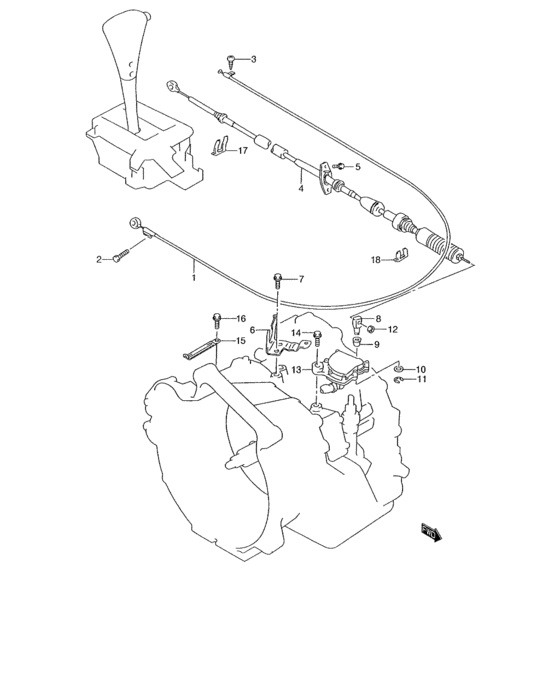

Gear shift controls (AT:97, 98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28551-52G61-000
Cable, key inter lock
|
28551-52G61-000 |
— | ||
|
2
|
2
09103-06078-000 BOLT(6X8)Plug, oil gallery |
09103-06078-000 |
from US $2.45 |
||
|
3
|
3
09125-05061-000 SCREW(5X8) |
09125-05061-000 |
US $9.60 |
||
|
4
|
4
28210-52G60-000
Cable assy, select
|
28210-52G60-000 |
— | ||
|
5
|
5
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
6
|
6
28221-62B00-000
BRACKET,SELECT CABLE
|
28221-62B00-000 |
— | ||
|
7
|
7
09103-08334-000 BOLT(8X16) |
09103-08334-000 |
from US $6.56 |
||
|
8
|
8
28291-78233-000 JOINT,CABLE |
28291-78233-000 |
US $12.32 |
||
|
9
|
9
09305-08012-000 BUSH |
09305-08012-000 |
US $1.28 |
||
|
10
|
10
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
11
|
11
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
11
|
11
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
12
|
12
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
37720-50G10-000 SWITCH ASSY,SHIFT LEVER |
37720-50G10-000 |
US $136.16 |
||
|
14
|
14
01580-08253-000
Bolt
|
01580-08253-000 |
— | ||
| replacement | |||||
|
14
|
14
01580-0825A-000 Bolt |
01580-0825A-000 |
from US $4.34 |
||
|
15
|
15
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
15
|
15
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
16
|
16
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
16
|
16
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
17
|
17
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
17
|
17
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
18
|
18
09383-19001-000 E RINGClip |
09383-19001-000 |
from US $2.72 |
||
