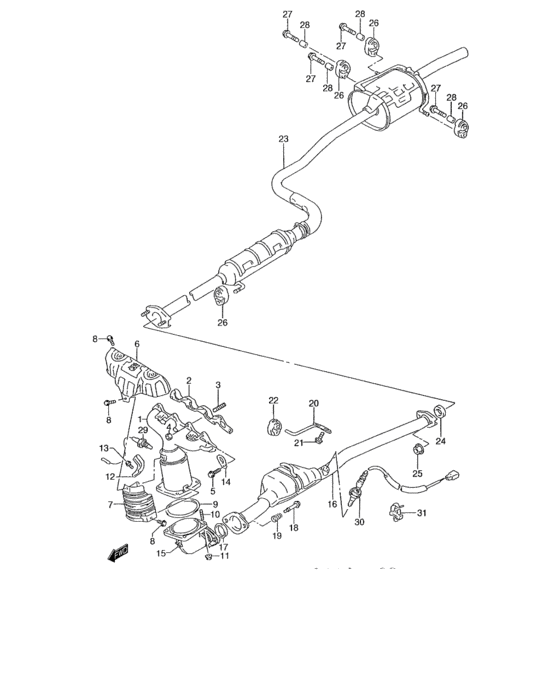

Muffler (97 MODEL:California) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-51G10-000
MANIFOLD,EXH
|
14110-51G10-000 |
— | ||
|
2
|
2
14141-51G00-000 GASKET,EXH MANF NO,1 |
14141-51G00-000 |
US $28.34 |
||
|
3
|
3
09108-08246-000 BOLT,STUD |
09108-08246-000 |
from US $1.76 |
||
|
4
|
4
09159-08083-000 NUT |
09159-08083-000 |
from US $1.28 |
||
|
5
|
5
09116-08112-000 BOLT(8X28) |
09116-08112-000 |
US $19.50 |
||
|
6
|
6
14121-51G10-000
Cover, exhaust manifold no.1
|
14121-51G10-000 |
— | ||
|
7
|
7
14171-51G10-000
COVER,EXH MANF NO.2
|
14171-51G10-000 |
— | ||
|
8
|
8
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.01 |
||
|
9
|
9
14181-51G10-000 GASKET,EXH MANF,NO.2 |
14181-51G10-000 |
US $10.82 |
||
|
10
|
10
01411-10253-000
New Genuine Part
|
01411-10253-000 |
— | ||
| replacement | |||||
|
10
|
10
01411-1025A-000 BOLT,STUD |
01411-1025A-000 |
US $1.60 |
||
|
11
|
11
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
11
|
11
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
12
|
12
14271-51G11-000
Stiffener, exhaust manifold
|
14271-51G11-000 |
— | ||
|
13
|
13
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
14
|
14
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
15
|
15
14190-51G30-000
Pipe, exhaust no.1
|
14190-51G30-000 |
— | ||
|
16
|
16
14250-51G00-000
Pipe, exhaust no.2
|
14250-51G00-000 |
— | ||
|
17
|
17
14183-50G00-000
Ring, seal
|
14183-50G00-000 |
— | ||
| replacement | |||||
|
17
|
17
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $11.57 |
||
|
18
|
18
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
19
|
19
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
19
|
19
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
20
|
20
14293-60B01-000 BRACKET,EXH PIPE BODY SIDE |
14293-60B01-000 |
US $19.69 |
||
|
21
|
21
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
21
|
21
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
22
|
22
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
22
|
22
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $9.28 |
||
|
23
|
23
14300-50G00-000
Muffler
|
14300-50G00-000 |
— | ||
|
24
|
24
14182-60B00-000
GASKET,EXH PIPE
|
14182-60B00-000 |
— | ||
| replacement | |||||
|
24
|
24
14182-60B01-000 Gasket,exh Pipe |
14182-60B01-000 |
from US $3.34 |
||
|
25
|
25
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
25
|
25
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
26
|
26
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
26
|
26
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $9.28 |
||
|
27
|
27
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
27
|
27
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
28
|
28
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
28
|
28
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
29
|
29
18213-50G00-000
Sensor, oxygen
|
18213-50G00-000 |
— | ||
| replacement | |||||
|
29
|
29
18213-50G01-000 SENSOR,OXYGEN |
18213-50G01-000 |
US $324.80 |
||
|
30
|
30
18213-50G10-000
Sensor, oxygen
|
18213-50G10-000 |
— | ||
| replacement | |||||
|
30
|
30
18213-50G11-000 SENSOR ASSY,OXYGEN |
18213-50G11-000 |
US $285.20 |
||
|
31
|
31
51771-60B00-000 CLAMP,BRAKE PIPE |
51771-60B00-000 |
US $2.13 |
||
