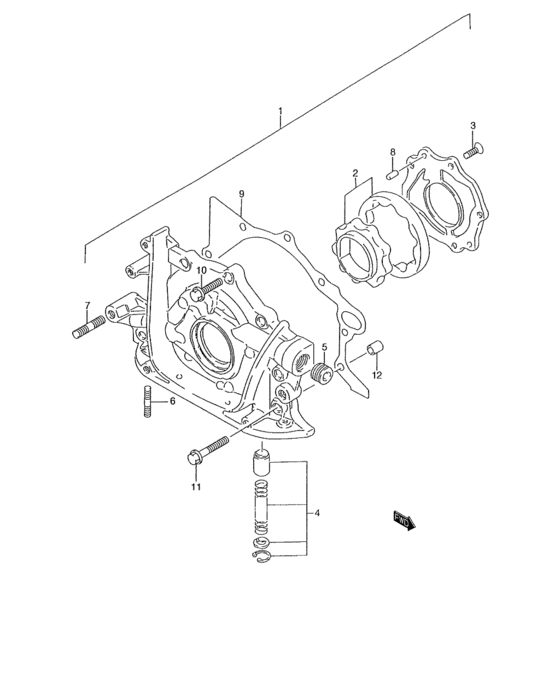

Oil pump (96, 97, 98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-61810-000
Pump set, oil
96 MODEL,97 MODEL |
16100-61810-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-61815-000
PUMP SET,OIL
96 MODEL,97 MODEL |
16100-61815-000 |
— | ||
|
1
|
1
16100-61820-000
ポンプセット,オイル
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
16100-61820-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-61825-000 PUMP SET,OIL98 MODEL,99 MODEL,00 MODEL,01 MODEL |
16100-61825-000 |
US $196.88 |
||
|
2
|
2
16130-60A00-000 ROTOR SET,OIL PUMP |
16130-60A00-000 |
US $139.20 |
||
|
3
|
3
09126-06007-000 SCREW(6X14)Bolt |
09126-06007-000 |
from US $3.21 |
||
|
4
|
4
16150-60A00-000
Valve set, relief
|
16150-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEF |
16150-60A20-000 |
US $9.12 |
||
|
5
|
5
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
6
|
6
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
7
|
7
01411-08203-000
Stud 8x20
|
01411-08203-000 |
— | ||
| replacement | |||||
|
7
|
7
01411-0820B-000 BOLT,STUD |
01411-0820B-000 |
US $1.12 |
||
|
8
|
8
09206-06005-000 PIN(4X6X11) |
09206-06005-000 |
from US $1.04 |
||
|
9
|
9
16119-60A04-000
Gasket
|
16119-60A04-000 |
— | ||
| replacement | |||||
|
9
|
9
16119-60A05-000 GASKET,OIL PUMP |
16119-60A05-000 |
US $16.80 |
||
|
10
|
10
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
10
|
10
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
11
|
11
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
11
|
11
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
12
|
12
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
