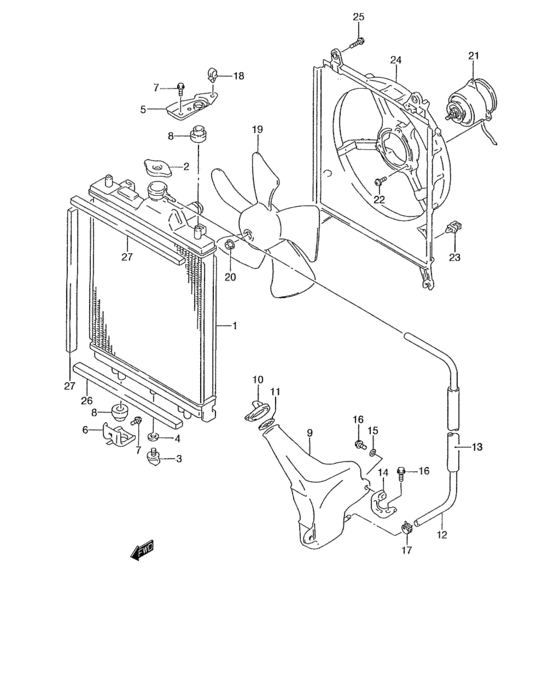

Radiator (RADIATOR) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-50G40-000
Radiator assy
AT |
17700-50G40-000 |
— | ||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.1 |
17920-66F01-000 |
from US $22.55 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
17861-50G00-000
Bracket, radiator upper
|
17861-50G00-000 |
— | ||
|
6
|
6
17863-50G00-000
Bracket, radiator lower
95 MODEL,96 MODEL,97 MODEL |
17863-50G00-000 |
— | ||
|
6
|
6
17863-50G10-000
Bracket, radiator lower
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
17863-50G10-000 |
— | ||
|
7
|
7
09103-06168-000 BOLT(6X10)95 MODEL,96 MODEL,97 MODEL |
09103-06168-000 |
from US $1.01 |
||
|
8
|
8
17879-50G00-000
Mounting, radiator
95 MODEL,96 MODEL,97 MODEL |
17879-50G00-000 |
— | ||
|
8
|
8
17812-52G00-000
Mount, radiator, upper
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
17812-52G00-000 |
— | ||
|
8
|
8
17813-52G00-000
Mount, radiator, lower
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
17813-52G00-000 |
— | ||
|
9
|
9
17931-50G00-000
TANK,WATER RESERVE
|
17931-50G00-000 |
— | ||
|
10
|
10
17932-50G00-000
Cap, water reservoir tank
|
17932-50G00-000 |
— | ||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap |
17933-60B00-000 |
from US $1.85 |
||
|
12
|
12
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) |
09352-70121-600 |
from US $4.84 |
||
|
13
|
13
17935-50G00-000
Protector, hose
|
17935-50G00-000 |
— | ||
|
14
|
14
17937-50G00-000
Bracket, water reservoir tank
|
17937-50G00-000 |
— | ||
|
15
|
15
09180-08184-000 SPACER(8.5X12X4)Spacer, rear |
09180-08184-000 |
from US $5.07 |
||
|
16
|
16
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
16
|
16
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
17
|
17
09401-11407-000
CLIP
95 MODEL,96 MODEL,97 MODEL |
09401-11407-000 |
— | ||
| replacement | |||||
|
17
|
17
09401-11415-000 CLIP95 MODEL,96 MODEL,97 MODEL |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
09401-11415-000 CLIP98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09401-11415-000 |
from US $1.06 |
||
|
18
|
18
09403-12312-000 CLUMPClamp, air vent hose |
09403-12312-000 |
from US $5.36 |
||
|
19
|
19
17111-63E00-000
FAN,ENG COOLING
|
17111-63E00-000 |
— | ||
|
20
|
20
08316-20053-000
Nut
|
08316-20053-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
21
|
21
17120-71C10-000 MOTOR,COOLING FAN |
17120-71C10-000 |
US $397.44 |
||
|
22
|
22
17129-50F10-000 SCREW,FAN MOTORScrew |
17129-50F10-000 |
US $1.60 |
||
|
23
|
23
17761-60B00-000 CLIP(BLACK) |
17761-60B00-000 |
US $2.39 |
||
|
24
|
24
17760-50G00-000
Shroud, engine cooling fan
|
17760-50G00-000 |
— | ||
|
25
|
25
09122-86003-000 SCREW(6X16)Bolt (6x16) |
09122-86003-000 |
US $11.80 |
||
|
26
|
26
17799-84010-000
SEAL,FAN SHROUD
L:360->350 |
17799-84010-000 |
— | ||
|
27
|
27
17798-71C10-000
SEAL,RADIATOR NO.2
|
17798-71C10-000 |
— | ||
