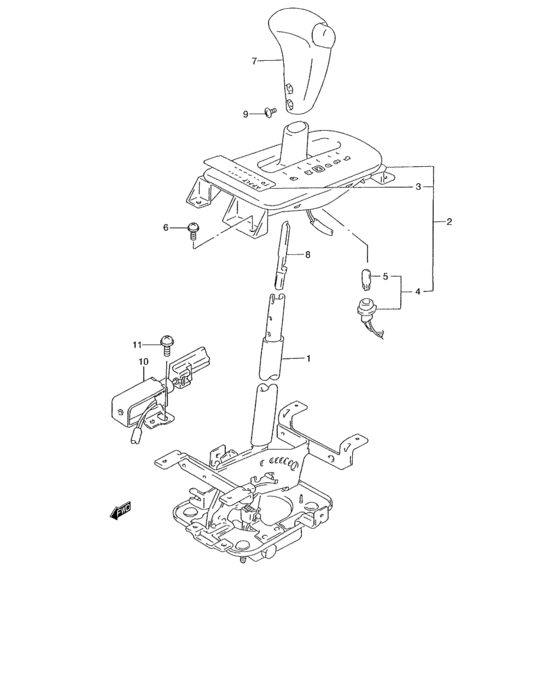

Selector lever (AT:95, 96 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-52G42-000
Lever assy,select
95 MODEL |
28110-52G42-000 |
— | ||
|
1
|
1
28110-52G43-000
Lever assy, selector
96 MODEL |
28110-52G43-000 |
— | ||
|
2
|
2
28150-52G42-000
Indicator assy, select
95 MODEL: |
28150-52G42-000 |
— | ||
|
2
|
2
28150-52G30-000
Indicator assy, select
95 MODEL:Canada |
28150-52G30-000 |
— | ||
|
3
|
3
28156-62B40-000 LABEL,BRAKE INTERLOCK95 MODEL: |
28156-62B40-000 |
US $2.10 |
||
|
3
|
3
28156-62B30-000
Emblem, shift lock
95 MODEL:Canada |
28156-62B30-000 |
— | ||
|
4
|
4
28159-62E00-000 LAMP ASSY,ILLUM |
28159-62E00-000 |
US $12.14 |
||
|
5
|
5
09471-12077-000 BULB(12V1.7W,T10,WB121) |
09471-12077-000 |
from US $1.52 |
||
|
6
|
6
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
7
|
7
28160-62B80-5ES
Knob assy, select lever
(BLACK) |
28160-62B80-5ES |
— | ||
| replacements | |||||
|
7
|
7
28160-62B80-000
KNOB ASSY,SEL LEVER
(BLACK) |
28160-62B80-000 |
— | ||
|
7
|
7
28160-62B81-000 KNOB ASSY,SEL LEVER(BLACK) |
28160-62B81-000 |
US $47.10 |
||
|
8
|
8
28164-62B80-000
GUIDE,DETENT RELEASE ROD
|
28164-62B80-000 |
— | ||
|
9
|
9
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
|
10
|
10
38890-52G41-000
SOLENOID,BACK DRIVE
|
38890-52G41-000 |
— | ||
|
11
|
11
09138-05005-000 SCREW(5X10) |
09138-05005-000 |
US $12.90 |
||
