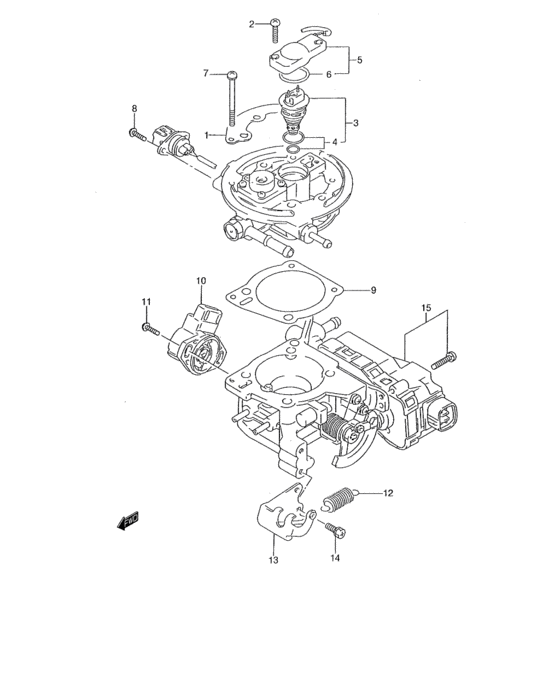

Throttle body (95, 96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13400-50G11-000
BODY ASSY,THROTTLE
|
13400-50G11-000 |
— | ||
|
1
|
1
13453-50G00-000
COVER SUB ASSY
|
13453-50G00-000 |
— | ||
|
2
|
2
13455-60B01-000 SCREW,COVER |
13455-60B01-000 |
US $1.69 |
||
|
3
|
3
15710-60B50-000 INJECTOR ASSY,FUEL |
15710-60B50-000 |
US $456 |
||
|
4
|
4
15713-60BT0-000
O-RING SET,INJECTOR
|
15713-60BT0-000 |
— | ||
|
5
|
5
13452-60B50-000 WIRE SUB ASSY,LEAD |
13452-60B50-000 |
US $39.74 |
||
|
6
|
6
15715-60B50-000
O-RING
|
15715-60B50-000 |
— | ||
|
7
|
7
02112-35453-000 SCREW |
02112-35453-000 |
US $20.20 |
||
|
8
|
8
02112-34103-000
Screw
|
02112-34103-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3410A-000 SCREW |
02112-3410A-000 |
from US $2.99 |
||
|
9
|
9
13431-50G00-000 GASKET,BODY |
13431-50G00-000 |
US $8.72 |
||
|
10
|
10
13420-50G00-000 SENSOR,THROTTLE |
13420-50G00-000 |
from US $202.01 |
||
|
11
|
11
02112-74103-000
Screw
|
02112-74103-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-7410B-000 SCREW |
02112-7410B-000 |
from US $3.71 |
||
|
12
|
12
13436-82400-000
SPRING,THROTTLE
|
13436-82400-000 |
— | ||
|
13
|
13
13446-50G00-000
BRACKET
|
13446-50G00-000 |
— | ||
|
14
|
14
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
14
|
14
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
15
|
15
13430-50G00-000
MOTOR SET,ISC
|
13430-50G00-000 |
— | ||
|
16
|
16
13408-50G00-000
GASKET SET,THROTTLE BODY
(INC.REF.NO.4, 6 AND 9.) |
13408-50G00-000 |
— | ||
