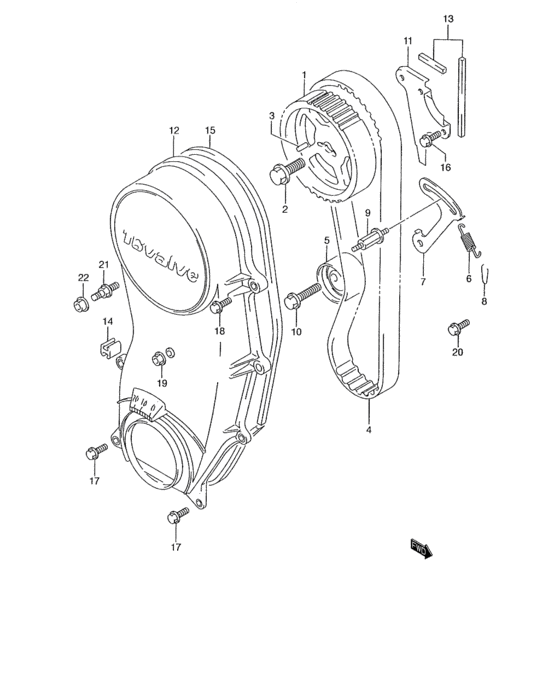

Timing belt (98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-53B01-000 PULLEY,CAMSHAFT TIMING |
12741-53B01-000 |
from US $42.89 |
||
|
2
|
2
01550-12253-000
Bolt
|
01550-12253-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1225A-000 BOLT |
01550-1225A-000 |
from US $1.28 |
||
|
3
|
3
04221-05109-000 PIN98 MODEL,99 MODEL |
04221-05109-000 |
from US $0.80 |
||
|
3
|
3
09206-05001-000 PIN(3.4X5X10)00 MODEL,01 MODEL |
09206-05001-000 |
from US $0.92 |
||
|
4
|
4
12761-70C00-000
Belt, timing
|
12761-70C00-000 |
— | ||
| replacement | |||||
|
4
|
4
11407-70C00-000 BELT SET,TIMING |
11407-70C00-000 |
from US $41.36 |
||
|
5
|
5
12810-71C02-000 TENSIONER,TIMING BELT |
12810-71C02-000 |
from US $54.45 |
||
|
6
|
6
12821-70C00-000
Spring
|
12821-70C00-000 |
— | ||
| replacement | |||||
|
6
|
6
12821-70C01-000 SPRING,TENSIONER |
12821-70C01-000 |
US $2.98 |
||
|
7
|
7
12823-82001-000 DAMPER,TENSIONER SPRING |
12823-82001-000 |
US $1.92 |
||
|
8
|
8
12822-70C00-000 PLATE,TENSIONER |
12822-70C00-000 |
US $2.28 |
||
|
9
|
9
01550-08403-000
Bolt
98 MODEL,99 MODEL,00 MODEL |
01550-08403-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0840B-000 Bolt98 MODEL,99 MODEL,00 MODEL |
01550-0840B-000 |
from US $1.12 |
||
|
9
|
9
01550-0840A-000 BOLT98 MODEL,99 MODEL,00 MODEL |
01550-0840A-000 |
from US $1.12 |
||
|
9
|
9
01550-08353-000
Bolt, rear
01 MODEL |
01550-08353-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0835B-000 BOLT01 MODEL |
01550-0835B-000 |
from US $1.12 |
||
|
9
|
9
01550-0835A-000 BOLT01 MODEL |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
12825-71C02-000 BOLT,TENSIONER PLATE |
12825-71C02-000 |
US $3.65 |
||
|
11
|
11
11360-71C00-000 COVER,TIMING BELT INSIDE |
11360-71C00-000 |
US $4.80 |
||
|
12
|
12
11390-70C00-000 COVER,TIMING BELT OUTSIDE98 MODEL,99 MODEL |
11390-70C00-000 |
from US $40.93 |
||
|
12
|
12
11390-76A00-000
Cover, outside
00 MODEL,01 MODEL |
11390-76A00-000 |
— | ||
| replacement | |||||
|
12
|
12
11390-76A01-000 COVER,TIMING BELT OUTSIDE00 MODEL,01 MODEL |
11390-76A01-000 |
from US $30.40 |
||
|
13
|
13
11480-71C00-000 SEAL SET,TIMING BELT COVER |
11480-71C00-000 |
US $6.24 |
||
|
14
|
14
11394-70B00-000 SEALL:28->18.5 |
11394-70B00-000 |
US $5.28 |
||
|
15
|
15
11396-71C00-000 SEAL,TIMING BELT COVER OUTL:1070->990 |
11396-71C00-000 |
from US $4.12 |
||
|
16
|
16
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
16
|
16
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
17
|
17
09103-06186-000
Bolt
|
09103-06186-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
18
|
18
09103-06187-000
Bolt (6x20)
98 MODEL,99 MODEL |
09103-06187-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-06207-000 BOLT98 MODEL,99 MODEL |
01550-06207-000 |
from US $0.80 |
||
|
19
|
19
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
20
|
20
01500-06253-000 BoltBolt, fuel injection bracket |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
20
|
20
01500-0625A-000 BOLTBolt, gear shift arm |
01500-0625A-000 |
from US $0.80 |
||
|
21
|
21
17512-76A00-000 BOLT,WATER PUMP STUD00 MODEL,01 MODEL |
17512-76A00-000 |
US $3.46 |
||
|
22
|
22
09159-06077-000 NUT00 MODEL,01 MODEL |
09159-06077-000 |
US $1.28 |
||
