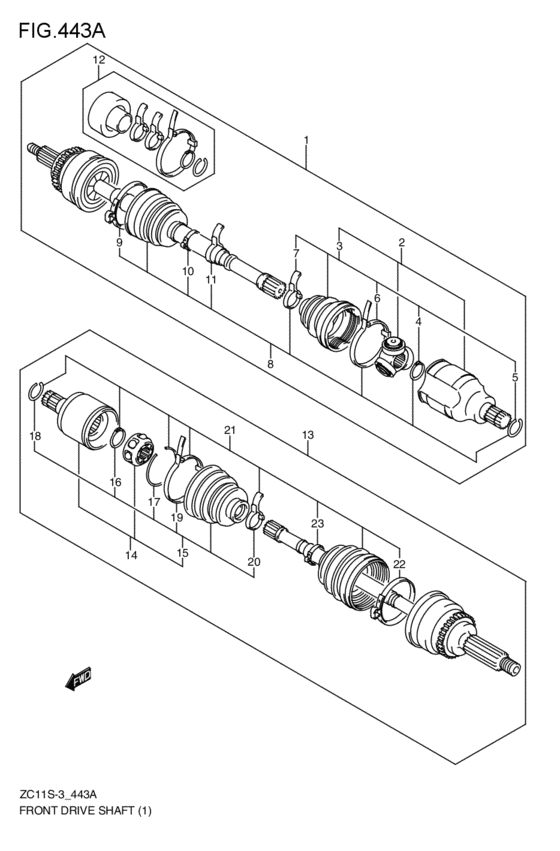

front-drive shaft (2WD:MT; 2007-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- MT
- grade
- G
- ディスチャージ
- DISCH-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-63J01-000
Shaft assy,front drive r
2WD:MT; 2007-04-01~ |
44101-63J01-000 |
— | ||
| replacements | |||||
|
1
|
1
44101-63J02-000
SHAFT ASSY,FRONT DRIVE,R
2WD:MT; 2007-04-01~ |
44101-63J02-000 |
— | ||
|
1
|
1
44101-63J03-000 SHAFT ASSY,FR DRIVE,R2WD:MT; 2007-04-01~ |
44101-63J03-000 |
US $485.76 |
||
|
2
|
2
44117-63J01-000
JOINT ASSY,DIFF SIDE
2WD:MT; 2007-04-01~ |
44117-63J01-000 |
— | ||
| replacement | |||||
|
2
|
2
44117-63J04-000 JOINT ASSY,DIFF SIDE2WD:MT; 2007-04-01~ |
44117-63J04-000 |
US $356.96 |
||
|
3
|
3
44119-63J01-000
Boot set,diff side
2WD:MT; 2007-04-01~ |
44119-63J01-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-63J04-000 BOOT SET,DIFF SIDE2WD:MT; 2007-04-01~ |
44119-63J04-000 |
US $78.75 |
||
|
4
|
4
44111-63J00-000 RING,SNAP2WD:MT; 2007-04-01~ |
44111-63J00-000 |
US $2.80 |
||
|
5
|
5
44112-58JA0-000 CIRCLIP2WD:MT; 2007-04-01~ |
44112-58JA0-000 |
US $3.97 |
||
|
6
|
6
44122-84110-000 BAND,BOOT BIG2WD:MT; 2007-04-01~ |
44122-84110-000 |
US $5.37 |
||
|
7
|
7
44123-53B10-000 BAND,BOOT SMALL2WD:MT; 2007-04-01~ |
44123-53B10-000 |
US $8.02 |
||
|
8
|
8
44118-63J01-000
Boot set,wheel side
2WD:MT; 2007-04-01~ |
44118-63J01-000 |
— | ||
| replacements | |||||
|
8
|
8
44118-63J03-000
BOOT SET,WHEEL SIDE
2WD:MT; 2007-04-01~ |
44118-63J03-000 |
— | ||
|
8
|
8
44118-63J04-000 BOOT SET,WHEEL SIDE2WD:MT; 2007-04-01~ |
44118-63J04-000 |
US $78.75 |
||
|
9
|
9
44112-63J00-000 BAND,BOOT BIG2WD:MT; 2007-04-01~ |
44112-63J00-000 |
US $7.95 |
||
|
10
|
10
44121-54G90-000 BAND,BOOT SMALL2WD:MT; 2007-04-01~ |
44121-54G90-000 |
US $7.99 |
||
|
11
|
11
44123-53B10-000 BAND,BOOT SMALL2WD:MT; 2007-04-01~ |
44123-53B10-000 |
US $8.02 |
||
|
12
|
12
44125-63J01-000
DAMPER SET
2WD:MT; 2007-04-01~ |
44125-63J01-000 |
— | ||
| replacement | |||||
|
12
|
12
44125-63J04-000 DAMPER SET2WD:MT; 2007-04-01~ |
44125-63J04-000 |
US $56.67 |
||
|
13
|
13
44102-63J51-000
Shaft assy,front drive l
2WD:MT; 2007-04-01~ |
44102-63J51-000 |
— | ||
| replacement | |||||
|
13
|
13
44102-63J53-000 SHAFT ASSY,FR DRIVE,L2WD:MT; 2007-04-01~ |
44102-63J53-000 |
US $485.76 |
||
|
14
|
14
44117-63J51-000
JOINT ASSY,DIFF SIDE
2WD:MT; 2007-04-01~ |
44117-63J51-000 |
— | ||
| replacement | |||||
|
14
|
14
44117-63J53-000 JOINT ASSY,DIFF SIDE2WD:MT; 2007-04-01~ |
44117-63J53-000 |
US $301.76 |
||
|
15
|
15
44119-63J51-000
Boot set
2WD:MT; 2007-04-01~ |
44119-63J51-000 |
— | ||
| replacement | |||||
|
15
|
15
44119-63J53-000 BOOT SET,DIFF SIDE2WD:MT; 2007-04-01~ |
44119-63J53-000 |
US $78.75 |
||
|
16
|
16
44111-53B10-000 RING,SNAP2WD:MT; 2007-04-01~ |
44111-53B10-000 |
from US $1.13 |
||
|
17
|
17
44112-53B10-000 CIRCLIP2WD:MT; 2007-04-01~ |
44112-53B10-000 |
US $4.38 |
||
|
18
|
18
44112-58JA0-000 CIRCLIP2WD:MT; 2007-04-01~ |
44112-58JA0-000 |
US $3.97 |
||
|
19
|
19
44121-53B10-000 BAND,BOOT2WD:MT; 2007-04-01~ |
44121-53B10-000 |
US $13.14 |
||
|
20
|
20
44123-53B10-000 BAND,BOOT SMALL2WD:MT; 2007-04-01~ |
44123-53B10-000 |
US $8.02 |
||
|
21
|
21
44118-63J51-000
Boot set,wheel side
2WD:MT; 2007-04-01~ |
44118-63J51-000 |
— | ||
| replacement | |||||
|
21
|
21
44118-63J53-000 BOOT SET,WHEEL SIDE2WD:MT; 2007-04-01~ |
44118-63J53-000 |
US $78.75 |
||
|
22
|
22
44112-63J00-000 BAND,BOOT BIG2WD:MT; 2007-04-01~ |
44112-63J00-000 |
US $7.95 |
||
|
23
|
23
44121-54G90-000 BAND,BOOT SMALL2WD:MT; 2007-04-01~ |
44121-54G90-000 |
US $7.99 |
||
