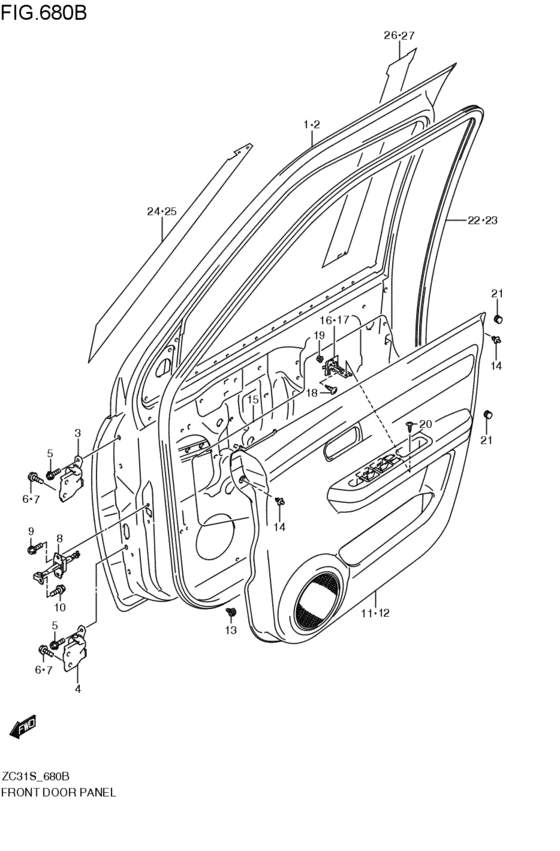

front door panel (2005-08-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- RLH
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-63J01-000 PANEL ASSY,FRONT DOOR,R2005-08-01~2007-06-01 |
68001-63J01-000 |
US $1,012.80 |
||
|
2
|
2
68002-63J01-000 PANEL ASSY,FRONT DOOR,L2005-08-01~2007-06-01 |
68002-63J01-000 |
US $587.84 |
||
|
3
|
3
69310-63J00-000 HINGE,FR DR NO.1アッパ ライト; 2005-08-01~2007-06-01 |
69310-63J00-000 |
US $38.64 |
||
|
3
|
3
69320-63J00-000 HINGE,FR DR NO.2アッパ レフト; 2005-08-01~2007-06-01 |
69320-63J00-000 |
US $38.64 |
||
|
4
|
4
69310-63J00-000 HINGE,FR DR NO.1ロア レフト; 2005-08-01~2007-06-01 |
69310-63J00-000 |
US $38.64 |
||
|
4
|
4
69320-63J00-000 HINGE,FR DR NO.2ロア ライト; 2005-08-01~2007-06-01 |
69320-63J00-000 |
US $38.64 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)2005-08-01~2007-06-01 |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
01551-0820A-000 BOLT2005-08-01~2007-06-01 |
01551-0820A-000 |
from US $0.96 |
||
|
7
|
7
09113-08001-000 BOLT(8X20)2005-08-01~2007-06-01 |
09113-08001-000 |
US $14.40 |
||
|
8
|
8
81810-54G01-000
ストップ,サイドドアオープン
2005-08-01~2007-06-01 |
81810-54G01-000 |
— | ||
| replacement | |||||
|
8
|
8
81810-54G04-000 STOP,SIDE DOOR OPEN2005-08-01~2007-06-01 |
81810-54G04-000 |
US $33.60 |
||
|
9
|
9
09122-86004-000 SCREW(6X20)2005-08-01~2007-06-01 |
09122-86004-000 |
US $11.80 |
||
|
10
|
10
09112-08004-000 BOLT(8X25)2005-08-01~2007-06-01 |
09112-08004-000 |
US $1.22 |
||
|
11
|
11
83710-63J40-EJP
トリム,フロントドア,ライト
ブラック/レッド/グレー; RLH; 2006-11-01~2007-06-01 |
83710-63J40-EJP |
— | ||
| replacement | |||||
|
11
|
11
83710-63J41-EJP
TRIM,FRONT DOOR,R
ブラック/レッド/グレー; RLH; 2006-11-01~2007-06-01 |
83710-63J41-EJP |
— | ||
|
12
|
12
83720-63J40-EJP
トリム,フロントドア,レフト
ブラック/レッド/グレー; RLH; 2006-11-01~2007-06-01 |
83720-63J40-EJP |
— | ||
| replacement | |||||
|
12
|
12
83720-63J41-EJP
New Genuine Part
ブラック/レッド/グレー; RLH; 2006-11-01~2007-06-01 |
83720-63J41-EJP |
— | ||
|
13
|
13
09409-10312-000 CLIP2005-08-01~2007-06-01 |
09409-10312-000 |
from US $1.08 |
||
|
14
|
14
09409-06314-P4Z CLIP(GRAY)グレ-; 2005-08-01~2007-06-01 |
09409-06314-P4Z |
US $1.60 |
||
|
15
|
15
83911-63J00-000
カバー,フロントドアシーリング
2005-08-01~2007-06-01 |
83911-63J00-000 |
— | ||
| replacement | |||||
|
15
|
15
83911-63J10-000 COVER,FR DR SEALING2005-08-01~2007-06-01 |
83911-63J10-000 |
US $5.67 |
||
|
16
|
16
83751-63J00-000 BRACKET,FR DR TRIM,R2005-08-01~2007-06-01 |
83751-63J00-000 |
US $4.20 |
||
|
17
|
17
83756-63J00-000 BRACKET,FR DR TRIM,L2005-08-01~2007-06-01 |
83756-63J00-000 |
US $4.20 |
||
|
18
|
18
03241-0612A-000 SCREW2005-08-01~2007-06-01 |
03241-0612A-000 |
US $0.80 |
||
|
19
|
19
09148-06007-000 NUT2005-08-01~2007-06-01 |
09148-06007-000 |
from US $0.88 |
||
|
20
|
20
09132-05058-000 SCREW(5X12)2005-08-01~2007-06-01 |
09132-05058-000 |
US $12.50 |
||
|
21
|
21
82711-65J00-000 CUSHION2005-08-01~2007-06-01 |
82711-65J00-000 |
from US $1.51 |
||
|
22
|
22
84641-63J00-000 WEATHERSTRIP,FR DR OPNG,R2005-08-01~2007-06-01 |
84641-63J00-000 |
US $157.60 |
||
|
23
|
23
84651-63J00-000 WEATHERSTRIP,FR DR OPNG,L2005-08-01~2007-06-01 |
84651-63J00-000 |
US $157.60 |
||
|
24
|
24
83921-63J00-0CE TAPE,FR DOOR OUTER FR,Rブラック; 2005-08-01~2007-06-01 |
83921-63J00-0CE |
US $149.60 |
||
|
25
|
25
83922-63J00-0CE TAPE,FR DOOR OUTER FR,Lブラック; 2005-08-01~2007-06-01 |
83922-63J00-0CE |
US $149.60 |
||
|
26
|
26
83923-63J00-0CE TAPE,FR DOOR OUTER RR,Rブラック; 2005-08-01~2007-06-01 |
83923-63J00-0CE |
US $40.48 |
||
|
27
|
27
83924-63J00-0CE TAPE,FR DOOR OUTER RR,Lブラック; 2005-08-01~2007-06-01 |
83924-63J00-0CE |
US $40.48 |
||
