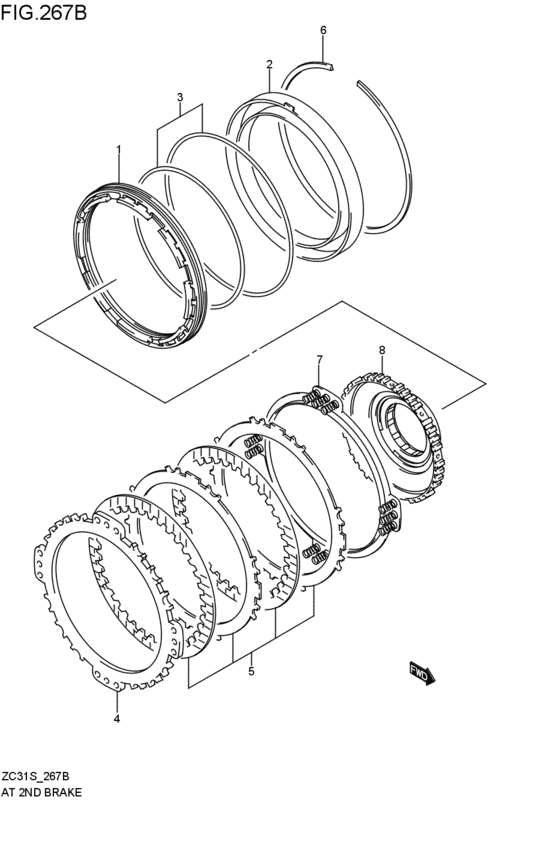

at - second brakes (AT; 2005-08-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- R
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26731-70H10-000 PISTON,2ND BRAKEAT; 2005-08-01~2007-06-01 |
26731-70H10-000 |
US $35.20 |
||
|
2
|
2
26732-79C10-000 CYLINDER,2ND BRAKE PISTONAT; 2005-08-01~2007-06-01 |
26732-79C10-000 |
US $20.79 |
||
|
3
|
3
26733-79CT0-000 O-RING SET,2ND BRAKEAT; 2005-08-01~2007-06-01 |
26733-79CT0-000 |
from US $4.43 |
||
|
4
|
4
26741-79C10-000 PLATE,2ND BRAKE RETAINERAT; 2005-08-01~2007-06-01 |
26741-79C10-000 |
US $24.80 |
||
|
5
|
5
26742-68JT0-000 DISC SET,2ND BRAKEAT; 2005-08-01~2007-06-01 |
26742-68JT0-000 |
US $37.60 |
||
|
6
|
6
26744-79C10-000 RING,2ND BRAKE PLATEAT; 2005-08-01~2007-06-01 |
26744-79C10-000 |
from US $4.07 |
||
|
7
|
7
26750-79C10-000 SPRING ASSY,2ND BRAKEAT; 2005-08-01~2007-06-01 |
26750-79C10-000 |
US $9.20 |
||
|
8
|
8
26760-68J10-000 CLUTCH ASSY,2ND BKAT; 2005-08-01~2007-06-01 |
26760-68J10-000 |
US $100 |
