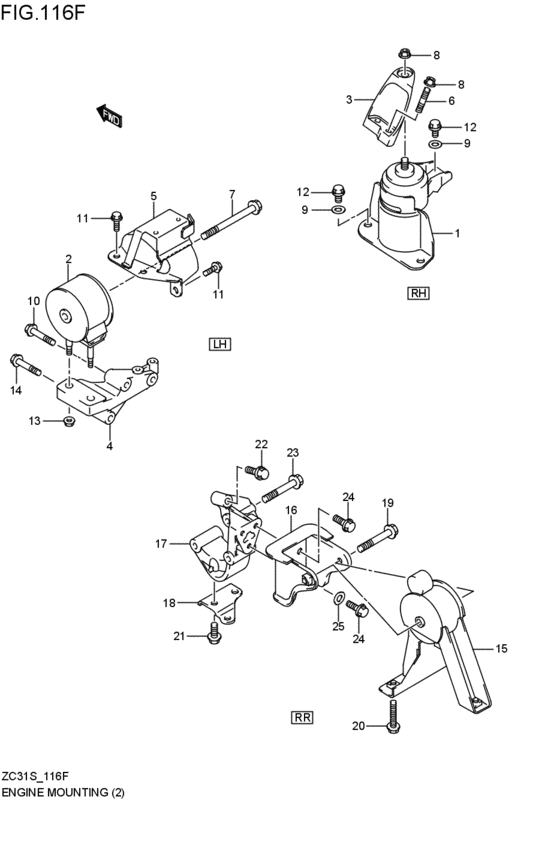

engine mounting (AT; 2005-08-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- R
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-63J00-000
Mounting,eng rh
AT; 2005-08-01~2007-06-01 |
11610-63J00-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-63J10-000 MOUNTING,ENG,RAT; 2005-08-01~2007-06-01 |
11610-63J10-000 |
from US $81.52 |
||
|
2
|
2
11620-63J00-000 MOUNTING,ENGAT; 2005-08-01~2007-06-01 |
11620-63J00-000 |
from US $58.64 |
||
|
3
|
3
11641-63J00-000 BRACKET,ENG MTG,RAT; 2005-08-01~2007-06-01 |
11641-63J00-000 |
US $54.40 |
||
|
4
|
4
11651-63J10-000 BRACKET,ENG MTG,LAT; 2005-08-01~2007-06-01 |
11651-63J10-000 |
US $61.09 |
||
|
5
|
5
11671-73K00-000 BRACKET,ENG MTG,LAT; 2005-08-01~2007-06-01 |
11671-73K00-000 |
US $42.69 |
||
|
6
|
6
09108-10136-000 BOLT,STUD(10X50)AT; 2005-08-01~2007-06-01 |
09108-10136-000 |
US $2.40 |
||
|
7
|
7
09113-12001-000 BOLT(12X150)AT; 2005-08-01~2007-06-01 |
09113-12001-000 |
from US $5.28 |
||
|
8
|
8
09159-10115-000 NUTAT; 2005-08-01~2007-06-01 |
09159-10115-000 |
from US $2.58 |
||
|
9
|
9
09160-10143-000 WASHER(10.5X22X1.6)AT; 2005-08-01~2007-06-01 |
09160-10143-000 |
from US $0.91 |
||
|
10
|
10
01550-1060A-000 BoltAT; 2005-08-01~2007-06-01 |
01550-1060A-000 |
from US $1.60 |
||
|
11
|
11
01551-0825A-000 BOLTAT; 2005-08-01~2007-06-01 |
01551-0825A-000 |
from US $1.12 |
||
|
12
|
12
01551-1025A-000 BoltAT; 2005-08-01~2007-06-01 |
01551-1025A-000 |
US $1.12 |
||
|
13
|
13
08316-1010A-000 NUTNut, kick starter AT; 2005-08-01~2007-06-01 |
08316-1010A-000 |
from US $0.76 |
||
|
14
|
14
01550-1050A-000 BOLTBolt, exhaust tube AT; 2005-08-01~2007-06-01 |
01550-1050A-000 |
from US $1.28 |
||
|
15
|
15
11710-63J30-000 MOUNTING,ENG RRAT; 2005-08-01~2007-06-01 |
11710-63J30-000 |
from US $93.29 |
||
|
16
|
16
11740-63J00-000 BRACKET,ENG RR MTGAT; 2005-08-01~2007-06-01 |
11740-63J00-000 |
US $27.78 |
||
|
17
|
17
11749-63J11-000 BRACKET,ENG MTG RRAT; 2005-08-01~2007-06-01 |
11749-63J11-000 |
US $109.66 |
||
|
18
|
18
11751-63J00-000 STIFFENER,ENG MTG BRKT RRAT; 2005-08-01~2007-06-01 |
11751-63J00-000 |
US $10.05 |
||
|
19
|
19
09103-10337-000 BOLT(10X85)AT; 2005-08-01~2007-06-01 |
09103-10337-000 |
from US $2.90 |
||
|
20
|
20
09113-10004-000 BOLT(10X85)AT; 2005-08-01~2007-06-01 |
09113-10004-000 |
US $21.70 |
||
|
21
|
21
01550-1025A-000 BOLTBolt, drive gear AT; 2005-08-01~2007-06-01 |
01550-1025A-000 |
from US $1.06 |
||
|
22
|
22
01550-1050A-000 BOLTBolt, exhaust tube AT; 2005-08-01~2007-06-01 |
01550-1050A-000 |
from US $1.28 |
||
|
23
|
23
01550-1075A-000 BoltAT; 2005-08-01~2007-06-01 |
01550-1075A-000 |
US $1.60 |
||
|
24
|
24
09103-10405-000 BOLT(10X30)AT; 2005-08-01~2007-06-01 |
09103-10405-000 |
from US $1.82 |
||
|
25
|
25
09160-10093-000 WASHER(10.5X24X2.3)AT; 2005-08-01~2007-06-01 |
09160-10093-000 |
from US $1.35 |
||
