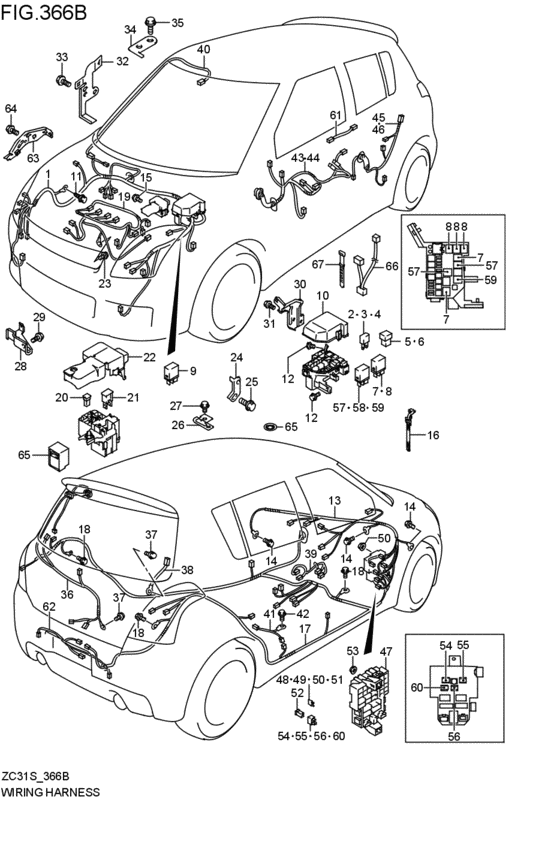

wire ring harness (エンジン / ボデイ; 2005-08-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- R
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-57K10-000
Harness assy,main
ノーマルバルブ; AT; 2005-08-01~2007-06-01 |
36610-57K10-000 |
— | ||
|
1
|
1
36610-57K30-000
ハーネスアッシ,メイン
デイスチャージ; AT; 2005-08-01~2007-06-01 |
36610-57K30-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A)2005-08-01~2007-06-01 |
09481-10501-000 |
from US $1.01 |
||
|
3
|
3
09481-15501-000 FUSE(15A)2005-08-01~2007-06-01 |
09481-15501-000 |
from US $1.28 |
||
|
4
|
4
09481-30501-000 FUSE(30A)2005-08-01~2007-06-01 |
09481-30501-000 |
from US $1.08 |
||
|
5
|
5
09481-30401-000 FUSE(30A)2005-08-01~2007-06-01 |
09481-30401-000 |
from US $6.08 |
||
|
6
|
6
09481-50401-000 FUSE(50A)2005-08-01~2007-06-01 |
09481-50401-000 |
US $46 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor スタータモータ リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータ ファン リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor デイスチャージ,ヘッドランプ リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
10
|
10
36717-63J00-000 COVER,RELAY BOX2005-08-01~2007-06-01 |
36717-63J00-000 |
US $17.26 |
||
|
11
|
11
09115-06005-000 BOLT(6X16)2005-08-01~2007-06-01 |
09115-06005-000 |
US $1.28 |
||
|
12
|
12
02162-0616A-000 SCREW2005-08-01~2007-06-01 |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
12
|
12
02162-0616B-000 SCREWBolt, adjust 2005-08-01~2007-06-01 |
02162-0616B-000 |
from US $0.80 |
||
|
13
|
13
36620-57K01-000
HARNESS ASSY,I/P
2AB; 2005-08-01~2007-06-01 |
36620-57K01-000 |
— | ||
|
14
|
14
09115-06005-000 BOLT(6X16)2005-08-01~2007-06-01 |
09115-06005-000 |
US $1.28 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 2005-08-01~2007-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
09407-12404-000 CLAMP(L:140)2005-08-01~2007-06-01 |
09407-12404-000 |
US $2.08 |
||
|
17
|
17
36630-57K00-000
ハーネスアッシ,フロア
2AB; 2005-08-01~2007-06-01 |
36630-57K00-000 |
— | ||
|
18
|
18
09115-06005-000 BOLT(6X16)2005-08-01~2007-06-01 |
09115-06005-000 |
US $1.28 |
||
|
19
|
19
36650-57K10-000
Harness assy,eng
AT; 2005-08-01~2007-06-01 |
36650-57K10-000 |
— | ||
|
20
|
20
09481-50401-000 FUSE(50A)2005-08-01~2007-06-01 |
09481-50401-000 |
US $46 |
||
|
21
|
21
09481-80301-000 FUSE(80A)2005-08-01~2007-06-01 |
09481-80301-000 |
from US $5.74 |
||
|
22
|
22
36694-63J00-000 COVER,BATTERY TERMINAL2005-08-01~2007-06-01 |
36694-63J00-000 |
US $14.40 |
||
|
23
|
23
01550-0612A-000 BOLT2005-08-01~2007-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
36651-57K00-000
BRACKET,ENG HARN INTAKE
2005-08-01~2007-06-01 |
36651-57K00-000 |
— | ||
|
25
|
25
01550-0612A-000 BOLT2005-08-01~2007-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
36652-60J00-000 BRACKET,ENG HARN T/M2005-08-01~2007-06-01 |
36652-60J00-000 |
US $2.72 |
||
|
27
|
27
01550-0812A-000 BOLT2005-08-01~2007-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
30
|
30
36653-63J00-000
ブラケット,エンジンハーネスボディ
2005-08-01~2007-06-01 |
36653-63J00-000 |
— | ||
| replacement | |||||
|
30
|
30
36653-63J10-000 BRACKET,ENG HARN BODY2005-08-01~2007-06-01 |
36653-63J10-000 |
US $4.64 |
||
|
31
|
31
01550-0612A-000 BOLT2005-08-01~2007-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
36653-80G00-000 BRACKET,O2 CONN2005-08-01~2007-06-01 |
36653-80G00-000 |
US $4.01 |
||
|
33
|
33
01550-0612A-000 BOLT2005-08-01~2007-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
36995-77E21-000 BRACKET,ENG HARN2005-08-01~2007-06-01 |
36995-77E21-000 |
US $1.69 |
||
|
35
|
35
01550-0812A-000 BOLT2005-08-01~2007-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
36
|
36
36680-63J10-000 HARNESS ASSY,BACK DOOR2005-08-01~2007-06-01 |
36680-63J10-000 |
US $83.54 |
||
|
37
|
37
09132-06023-000 SCREW(6X16)2005-08-01~2007-06-01 |
09132-06023-000 |
US $16.90 |
||
|
38
|
38
36891-80G00-000 WIRE,RR DF GND2005-08-01~2007-06-01 |
36891-80G00-000 |
US $4.16 |
||
|
39
|
39
36615-63J00-000 WIRE,EPS2005-08-01~2007-06-01 |
36615-63J00-000 |
US $76.18 |
||
|
40
|
40
36820-63J00-000 WIRE,DOME LAMP2005-08-01~2007-06-01 |
36820-63J00-000 |
US $21.90 |
||
|
41
|
41
36840-63J00-000
Wire comp,fuel pump
2005-08-01~2005-11-01 |
36840-63J00-000 |
— | ||
|
41
|
41
36840-63J20-000 WIRE,FUEL PUMP2005-11-01~2007-06-01 |
36840-63J20-000 |
US $41.95 |
||
|
42
|
42
09115-06001-000
Bolt, lh
2005-11-01~2007-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
42
|
42
09115-06005-000 BOLT(6X16)2005-11-01~2007-06-01 |
09115-06005-000 |
US $1.28 |
||
|
43
|
43
36756-63JC0-000
ワイヤ,パワーウィンドメイン
2005-08-01~2007-06-01 |
36756-63JC0-000 |
— | ||
|
44
|
44
36757-63J10-000 WIRE,P/W SUB2005-08-01~2007-06-01 |
36757-63J10-000 |
US $129.54 |
||
|
45
|
45
36751-63J00-000 WIRE,RR DR SIDE,R2005-08-01~2007-06-01 |
36751-63J00-000 |
US $51.15 |
||
|
46
|
46
36751-63JA0-000 WIRE,RR DR SIDE,L2005-08-01~2007-06-01 |
36751-63JA0-000 |
US $61.46 |
||
|
47
|
47
36780-62J01-000 BOX ASSY,JUNCTION2005-08-01~2005-11-01 |
36780-62J01-000 |
US $404.80 |
||
|
47
|
47
36780-62J04-000
Box assy,junction
2005-11-01~2007-06-01 |
36780-62J04-000 |
— | ||
| replacement | |||||
|
47
|
47
36780-62J05-000 BOX SET,J/B&BCM2005-11-01~2007-06-01 |
36780-62J05-000 |
US $404.80 |
||
|
48
|
48
09481-10501-000 FUSE(10A)2005-08-01~2007-06-01 |
09481-10501-000 |
from US $1.01 |
||
|
49
|
49
09481-15501-000 FUSE(15A)2005-08-01~2007-06-01 |
09481-15501-000 |
from US $1.28 |
||
|
50
|
50
09481-20501-000 FUSE(20A)2005-08-01~2007-06-01 |
09481-20501-000 |
from US $2.28 |
||
|
51
|
51
09481-25501-000 FUSE(25A)2005-08-01~2007-06-01 |
09481-25501-000 |
from US $2.28 |
||
|
52
|
52
09481-30401-000 FUSE(30A)2005-08-01~2007-06-01 |
09481-30401-000 |
from US $6.08 |
||
|
53
|
53
08316-1008A-000 NUTNut, idle gear shaft 2005-08-01~2007-06-01 |
08316-1008A-000 |
from US $0.76 |
||
|
54
|
54
38860-76F01-000 RELAY ASSYRelay, starting motor ヒータ リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
55
|
55
38860-76F01-000 RELAY ASSYRelay, starting motor ホーン リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
56
|
56
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ デフオッガ リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
57
|
57
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
58
|
58
38860-76F01-000 RELAY ASSYRelay, starting motor ATリレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
59
|
59
38860-76F01-000 RELAY ASSYRelay, starting motor フオグランプ リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
60
|
60
38860-76F01-000 RELAY ASSYRelay, starting motor リヤワイパ リレー; 2005-08-01~2007-06-01 |
38860-76F01-000 |
from US $23.92 |
||
|
61
|
61
36882-57K00-000
ワイヤ,リヤハイトセンサ
2005-08-01~2007-06-01 |
36882-57K00-000 |
— | ||
|
62
|
62
36843-57K00-000 WIRE,BUMPER2005-08-01~2007-06-01 |
36843-57K00-000 |
US $61.46 |
||
|
63
|
63
36651-79J60-000 BRACKET,ENG HARN HOOK2005-08-01~2007-06-01 |
36651-79J60-000 |
US $6.40 |
||
|
64
|
64
01550-0612A-000 BOLT2005-08-01~2007-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
65
|
65
32810-58J00-000 SENSOR ASSY,CURRENT2005-08-01~2007-06-01 |
32810-58J00-000 |
US $55.94 |
||
|
66
|
66
36691-63J00-000 WIRE,A/BOPT; 2005-08-01~2007-06-01 |
36691-63J00-000 |
US $73.97 |
||
|
67
|
67
09407-18402-000 CLAMP(L:165)Clamp (l:165) OPT; 2005-08-01~2007-06-01 |
09407-18402-000 |
from US $1.98 |
||
