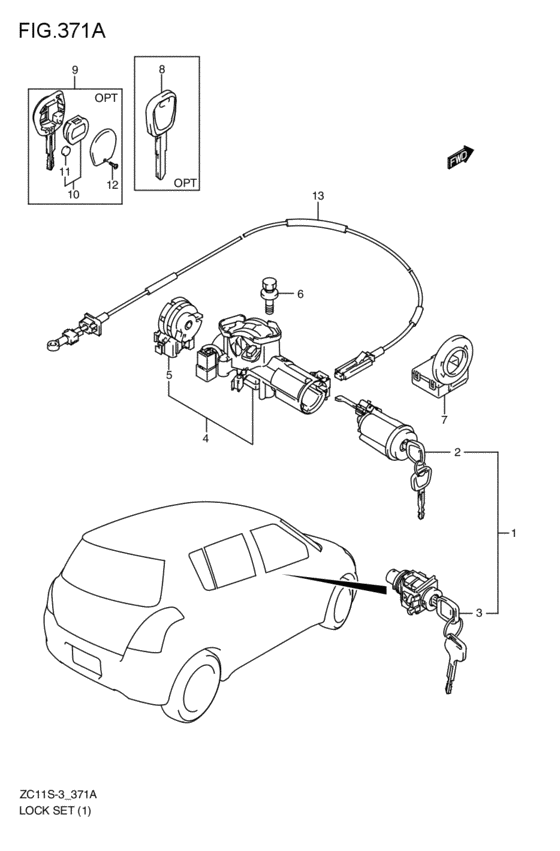

lock set (E; 2007-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- K12B
- drive
- 2WD
- transmission
- CVT
- grade
- E
- ディスチャージ
- DISCH-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37104-58840-000 LOCK SETE; 2007-04-01~ |
37104-58840-000 |
US $338.56 |
||
|
2
|
2
37106-63890-000 LOCK ASSY,STEERINGE; 2007-04-01~ |
37106-63890-000 |
US $172.22 |
||
|
3
|
3
82270-63810-000 CYLINDER,FR DR LATCH,RE; 2007-04-01~ |
82270-63810-000 |
US $53.36 |
||
|
4
|
4
37101-62J20-000 BODY,STEERING LOCKE; 2007-04-01~ |
37101-62J20-000 |
US $110.40 |
||
|
5
|
5
37111-58J00-000 Ignition switchE; 2007-04-01~ |
37111-58J00-000 |
US $48.94 |
||
|
6
|
6
37152-84G00-000 BOLT, STRG LOCKE; 2007-04-01~ |
37152-84G00-000 |
from US $2.98 |
||
|
7
|
7
33970-62J00-000 CONTROLLER ASSY,IMMOBILIZERE; 2007-04-01~ |
33970-62J00-000 |
US $239.20 |
||
|
8
|
8
37145-57J10-000 KEY,BLANK IMMOBILIZERオプシヨン; E; 2007-04-01~ |
37145-57J10-000 |
US $41.95 |
||
|
9
|
9
37145-55J50-000 KEY,BLANK IMM/KEYLESSオプシヨン; E; 2007-04-01~ |
37145-55J50-000 |
US $278.40 |
||
|
10
|
10
37182-62J00-000 SWITCH ASSY,TRANSMITTERE; 2007-04-01~ |
37182-62J00-000 |
US $100.46 |
||
|
11
|
11
37185-62J00-000
バッテリ,リチユーム,CR1620
E; 2007-04-01~ |
37185-62J00-000 |
— | ||
|
12
|
12
37186-81A00-000 SCREWE; 2007-04-01~ |
37186-81A00-000 |
US $1.60 |
||
|
13
|
13
28551-62J10-000 CABLE,KEY INTER LOCKE; 2007-04-01~ |
28551-62J10-000 |
US $32.57 |
