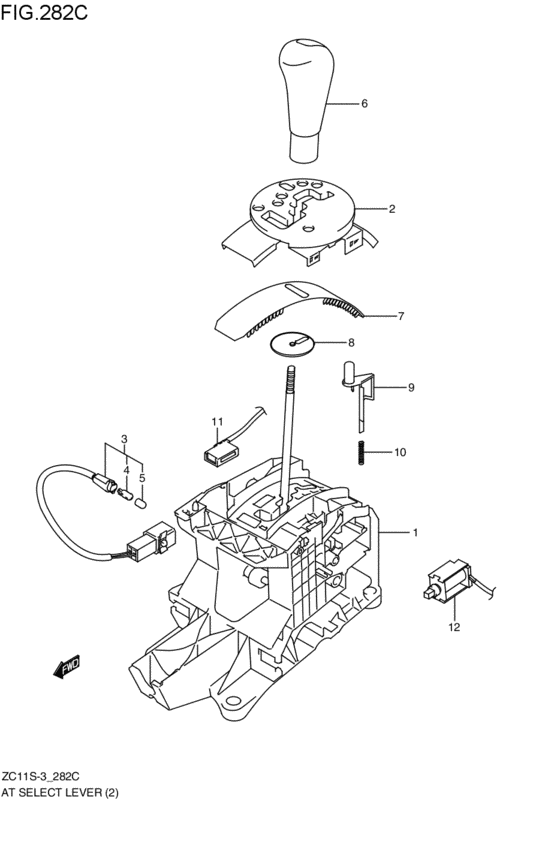

select lever (CVT; 2007-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- K12B
- drive
- 2WD
- transmission
- CVT
- grade
- G
- ディスチャージ
- DISCH-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-73KR0-000
レバーアッシ,セレクト
CVT; 2007-04-01~ |
28110-73KR0-000 |
— | ||
|
2
|
2
28151-73KR0-000
インジケータ,セレクトレバー
CVT; 2007-04-01~ |
28151-73KR0-000 |
— | ||
|
3
|
3
28180-62J10-000 LAMP ASSY,ILLUMCVT; 2007-04-01~ |
28180-62J10-000 |
US $10.82 |
||
|
4
|
4
28181-62J10-000 BULBCVT; 2007-04-01~ |
28181-62J10-000 |
from US $2.05 |
||
|
5
|
5
28182-62J10-000 FILTERCVT; 2007-04-01~ |
28182-62J10-000 |
US $1.91 |
||
|
6
|
6
28160-62J10-BWK
ノブアッシ,セレクトレバー
ブラック/グレー/クローム; CVT:(E,G,GL,GV); 2007-04-01~ |
28160-62J10-BWK |
— | ||
| replacement | |||||
|
6
|
6
28160-62J12-BWK KNOB ASSY,SELECT LEVERブラック/グレー/クローム; CVT:(E,G,GL,GV); 2007-04-01~ |
28160-62J12-BWK |
from US $32.56 |
||
|
7
|
7
28154-62J10-000 SLIDER,UPPERCVT; 2007-04-01~ |
28154-62J10-000 |
US $11.20 |
||
|
8
|
8
28155-62J10-000
SLIDER,LOWER
CVT; 2007-04-01~ |
28155-62J10-000 |
— | ||
|
9
|
9
28156-62J10-000 BUTTON,SHIFT LOCKCVT; 2007-04-01~ |
28156-62J10-000 |
US $3.81 |
||
|
10
|
10
28158-62J10-000 SPRINGCVT; 2007-04-01~ |
28158-62J10-000 |
US $1.91 |
||
|
11
|
11
28167-62J10-000 SWITCH ASSY,O/DCVT; 2007-04-01~ |
28167-62J10-000 |
US $29.60 |
||
|
12
|
12
28610-62J10-000 SOLENOID ASSY,SHIFT LOCKCVT; 2007-04-01~ |
28610-62J10-000 |
US $91.20 |
||
