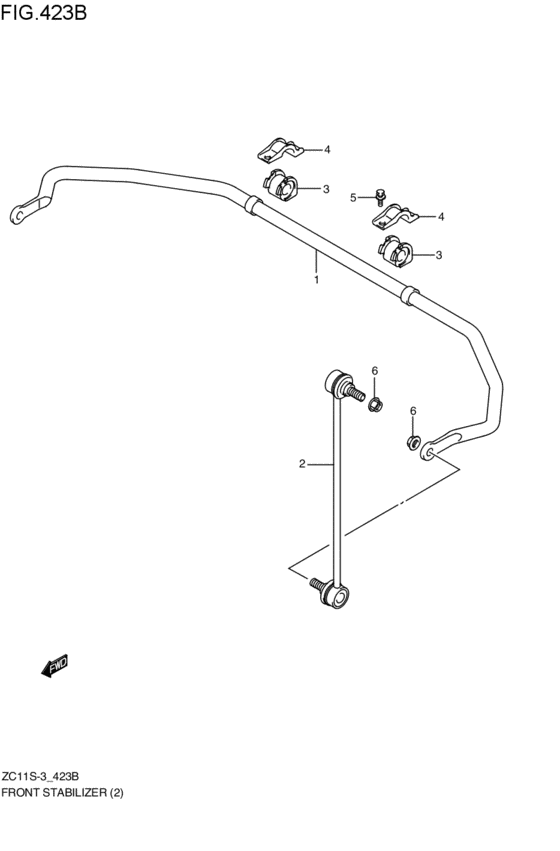

front stabilizer (2WD:CVT; 2007-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- K12B
- drive
- 2WD
- transmission
- CVT
- grade
- GL
- ディスチャージ
- DISCH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-73K10-000
バー,フロントスタビライザ
2WD:CVT; 2007-04-01~ |
42311-73K10-000 |
— | ||
|
2
|
2
42420-63J00-000
JOINT,FR STABILIZER BAR
2WD:CVT; 2007-04-01~ |
42420-63J00-000 |
— | ||
| replacement | |||||
|
2
|
2
42420-63J01-000 JOINT COMP FR STABILIZER BAR2WD:CVT; 2007-04-01~ |
42420-63J01-000 |
from US $35.48 |
||
|
3
|
3
42431-57K20-000 MOUNT,FR STAB BAR2WD:CVT; 2007-04-01~ |
42431-57K20-000 |
US $16.80 |
||
|
4
|
4
42441-63J21-000 BRACKET,FR STABILIZER MOUNT2WD:CVT; 2007-04-01~ |
42441-63J21-000 |
US $8.76 |
||
|
5
|
5
09117-08101-000 BOLT(8X25)2WD:CVT; 2007-04-01~ |
09117-08101-000 |
US $1.92 |
||
|
6
|
6
08316-1010A-000 NUTNut, kick starter 2WD:CVT; 2007-04-01~ |
08316-1010A-000 |
from US $0.76 |
||
