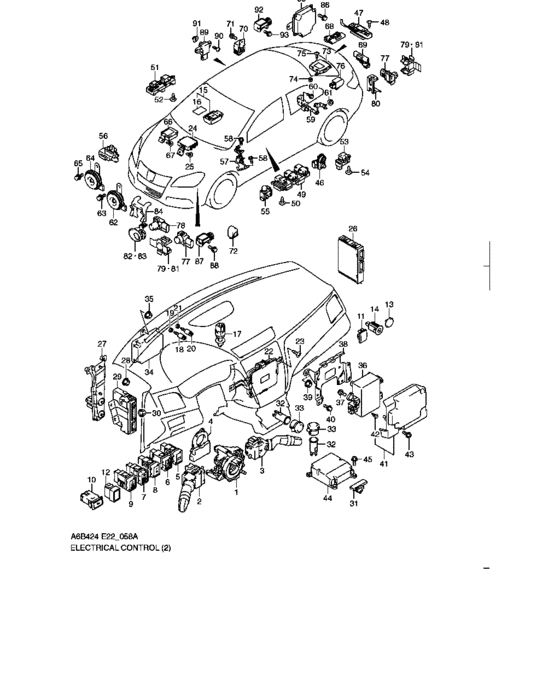

Electrical control (LHD:W/REAR SPOILER) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37480-57L00-000 CABLE ASSY,CONTACT COIL |
37480-57L00-000 |
US $164.86 |
||
|
2
|
2
37210-57L00-000 SWITCH ASSY,LIGHTING&TURNChile,Saudi Arabia:N/AUTO LIGHT |
37210-57L00-000 |
US $144.26 |
||
|
2
|
2
37210-57L10-000 SWITCH ASSY,LIGHTING&TURNChile,Saudi Arabia:W/AUTO LIGHT |
37210-57L10-000 |
US $144.26 |
||
|
2
|
2
37210-57L20-000 SWITCH ASSY,LIGHTING&TURNGermany,Israel,Russia:N/AUTO LIGHT |
37210-57L20-000 |
US $155.66 |
||
|
2
|
2
37210-57L30-000 SWITCH ASSY,LIGHTING&TURNGermany,Israel,Russia:W/AUTO LIGHT |
37210-57L30-000 |
US $155.66 |
||
|
3
|
3
37310-57L00-000 SWITCH ASSY,WIPER&WASHERN/RAIN & LIGHT SENSOR |
37310-57L00-000 |
US $154.56 |
||
|
3
|
3
37310-57L10-000
SWITCH ASSY,WIPER&WASHER
W/RAIN & LIGHT SENSOR |
37310-57L10-000 |
— | ||
|
4
|
4
37440-57L00-000 SENSOR ASSY,STEERING ANGLE |
37440-57L00-000 |
US $795.20 |
||
|
5
|
5
37790-57L00-000 SWITCH ASSY,4WD SELECT4WD |
37790-57L00-000 |
US $39.74 |
||
|
6
|
6
37585-57L00-000 SWITCH ASSY,ESP OFFN/PARKING SENSOR |
37585-57L00-000 |
US $67.20 |
||
|
6
|
6
37585-57L90-000 SWITCH,ESP OFF&PARK SNSRW/PARKING SENSOR |
37585-57L90-000 |
US $76.54 |
||
|
7
|
7
35180-51K00-000 SWITCH ASSY,HEADLAMP LEVELINGN/DISCHARGE HEADLAMP,W/HEADLAMP LEVELING |
35180-51K00-000 |
US $53.73 |
||
|
8
|
8
37270-57L00-000 SWITCH ASSY,FR FOGW/FRONT FOG LAMP |
37270-57L00-000 |
US $39.74 |
||
|
9
|
9
37930-57L00-000 SWITCH ASSY,HEADLAMP CLEANERW/HEADLAMP WASHER |
37930-57L00-000 |
US $39.74 |
||
|
10
|
10
37530-81J20-000 SWITCH ASSY,TRUNK OPENER |
37530-81J20-000 |
US $50.05 |
||
|
11
|
11
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
US $2.80 |
||
|
12
|
12
37285-62J00-000 CAP,OPTION SW HOLE |
37285-62J00-000 |
US $2.56 |
||
|
13
|
13
38975-57L00-000 CAP,A/B ON OFF SWITCH HOLEGermany,Israel,Russia |
38975-57L00-000 |
US $2.72 |
||
|
14
|
14
38970-57L00-000 SWITCH ASSY,AIR BAG ON OFFChile,Saudi Arabia |
38970-57L00-000 |
US $50.05 |
||
|
15
|
15
37320-57L00-000
SENSOR ASSY,RAIN&LIGHT
W/RAIN & LIGHT SENSOR |
37320-57L00-000 |
— | ||
| replacement | |||||
|
15
|
15
37320-57L01-000 Sensor Assy,rain&lightW/RAIN & LIGHT SENSOR |
37320-57L01-000 |
US $167.07 |
||
|
16
|
16
37324-57L00-000 SHEETW/RAIN & LIGHT SENSOR |
37324-57L00-000 |
US $16.80 |
||
|
17
|
17
37740-75H10-000
SWITCH ASSY,STOP LAMP
|
37740-75H10-000 |
— | ||
| replacements | |||||
|
17
|
17
37741-75H10-000 Switch Assy,stop Lamp |
37741-75H10-000 |
US $17.49 |
||
|
17
|
17
37742-75H10-000 Bush,stop Lamp Sw |
37742-75H10-000 |
US $4.64 |
||
|
18
|
18
37970-64J00-000 SWITCH ASSY,CLUTCHMT |
37970-64J00-000 |
US $31.92 |
||
|
19
|
19
09140-10043-000 NUTNut, tie rod rh thread MT |
09140-10043-000 |
from US $0.91 |
||
|
20
|
20
37970-68J00-000 SWITCH ASSY,CLUTCHMT |
37970-68J00-000 |
US $27.36 |
||
|
21
|
21
09140-10043-000 NUTNut, tie rod rh thread MT |
09140-10043-000 |
from US $0.91 |
||
|
22
|
22
39530-57LC0-000 CONTROLLER UNIT,AUTO A/CChile,Saudi Arabia |
39530-57LC0-000 |
US $397.44 |
||
|
22
|
22
39530-57L60-000 CONTROLLER UNIT,AUTO A/CGermany,Israel,Russia |
39530-57L60-000 |
US $329.36 |
||
|
23
|
23
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
24
|
24
38620-57L00-000 CONTROLLER ASSY,AUTO LEVELINGW/DISCHARGE HEADLAMP |
38620-57L00-000 |
US $351.44 |
||
|
25
|
25
03241-0512A-000 SCREWW/DISCHARGE HEADLAMP |
03241-0512A-000 |
from US $0.68 |
||
|
26
|
26
36770-57L21-000
Controller assy, body electric
Chile |
36770-57L21-000 |
— | ||
| replacement | |||||
|
26
|
26
36770-57L25-000 CONTROLLER ASSY,BODY ELECChile |
36770-57L25-000 |
US $404.80 |
||
|
26
|
26
36770-57L41-000
Controller assy, body electric
Saudi Arabia |
36770-57L41-000 |
— | ||
| replacement | |||||
|
26
|
26
36770-57L45-000 CONTROLLER ASSY,BODY ELECSaudi Arabia |
36770-57L45-000 |
US $404.80 |
||
|
26
|
26
36770-57LA1-000
Controller assy, body electric
Germany,Israel,Russia |
36770-57LA1-000 |
— | ||
| replacement | |||||
|
26
|
26
36770-57LA5-000 CONTROLLER ASSY,BODY ELECGermany,Israel,Russia |
36770-57LA5-000 |
US $404.80 |
||
|
27
|
27
36772-57L00-000 BRACKET,KLS CONT,L |
36772-57L00-000 |
US $20.24 |
||
|
28
|
28
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
29
|
29
37171-57L01-000
Controller assy, kls
|
37171-57L01-000 |
— | ||
| replacements | |||||
|
29
|
29
37171-57L04-000
CONTROLLER ASSY,KLS
|
37171-57L04-000 |
— | ||
|
29
|
29
37171-57L05-000 Controller Assy,kls |
37171-57L05-000 |
US $1,680 |
||
|
30
|
30
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
31
|
31
37175-57L00-000 ANTENNA ASSY,KLS INSIDE |
37175-57L00-000 |
US $39.01 |
||
|
32
|
32
39420-76F00-000 BODY,SOCKET |
39420-76F00-000 |
US $14.08 |
||
|
33
|
33
39441-63J01-P4Z COVER,SOCKET |
39441-63J01-P4Z |
US $4.96 |
||
|
34
|
34
38880-57L80-000
Controller assy, cvt
CVT:Chile,Saudi Arabia |
38880-57L80-000 |
— | ||
| replacements | |||||
|
34
|
34
38880-57L84-000
CONTROLLER ASSY,CVT
CVT:Chile,Saudi Arabia |
38880-57L84-000 |
— | ||
|
34
|
34
38880-57L85-000 Controller Assy,cvtCVT:Chile,Saudi Arabia |
38880-57L85-000 |
US $1,034.88 |
||
|
34
|
34
38880-57L30-000
Controller assy, cvt
CVT:Germany,Australia,Russia:4WD |
38880-57L30-000 |
— | ||
| replacement | |||||
|
34
|
34
38880-57L34-000 CONTROLLER ASSY,CVTCVT:Germany,Australia,Russia:4WD |
38880-57L34-000 |
US $1,034.88 |
||
|
35
|
35
09159-06076-000 NUTCVT |
09159-06076-000 |
from US $1.28 |
||
|
36
|
36
38720-57LA0-000
Controller assy,eps
|
38720-57LA0-000 |
— | ||
| replacement | |||||
|
36
|
36
38720-57LA1-000 CONTROLLER ASSY,EPS |
38720-57LA1-000 |
US $799.04 |
||
|
37
|
37
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
37
|
37
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
38
|
38
38721-57L00-000 BRACKET,EPS CONT |
38721-57L00-000 |
US $10.67 |
||
|
39
|
39
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
40
|
40
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
41
|
41
38722-57L00-000
COVER,EPS CONT
|
38722-57L00-000 |
— | ||
|
42
|
42
09409-08340-000 CLIP |
09409-08340-000 |
US $17.30 |
||
|
43
|
43
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
44
|
44
38910-57L40-000
Controller assy,a/b
N/KNEE AIR BAG |
38910-57L40-000 |
— | ||
| replacement | |||||
|
44
|
44
38910-57L41-000 CONTROLLER ASSY,A/BN/KNEE AIR BAG |
38910-57L41-000 |
US $989.12 |
||
|
44
|
44
38910-57L80-000
Controller assy,a/b
W/KNEE AIR BAG |
38910-57L80-000 |
— | ||
| replacement | |||||
|
44
|
44
38910-57L81-000 CONTROLLER ASSY,A/BW/KNEE AIR BAG |
38910-57L81-000 |
US $989.12 |
||
|
45
|
45
09115-06004-000 BOLT(6X16) |
09115-06004-000 |
US $12.50 |
||
|
46
|
46
37670-57L00-000 SWITCH ASSY,DOOR |
37670-57L00-000 |
US $17.60 |
||
|
47
|
47
37178-57L00-000 SWITCH ASSY,BACK DOOR |
37178-57L00-000 |
US $108.68 |
||
|
48
|
48
03541-0416A-000 SCREWScrew, trunk box lamp |
03541-0416A-000 |
from US $0.76 |
||
|
49
|
49
37990-57L00-000 SWITCH ASSY,P/W MAIN |
37990-57L00-000 |
US $131.38 |
||
|
50
|
50
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
51
|
51
37995-57L10-000 SWITCH ASSY,P/W SUB |
37995-57L10-000 |
US $32.38 |
||
|
52
|
52
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
53
|
53
37995-57L20-000 SWITCH ASSY,P/W SUB |
37995-57L20-000 |
US $26.86 |
||
|
54
|
54
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
55
|
55
37950-57L00-000 SWITCH ASSY,MIRRORN/POWER FOLDING MIRROR |
37950-57L00-000 |
US $26.50 |
||
|
55
|
55
37950-57L10-000 SWITCH ASSY,MIRRORW/POWER FOLDING MIRROR |
37950-57L10-000 |
US $35.70 |
||
|
56
|
56
95643-58J00-000 SENSOR,AIR TEMP |
95643-58J00-000 |
from US $54.91 |
||
|
57
|
57
38640-57L00-000 SENSOR ASSY,FR HEIGHTW/DISCHARGE HEADLAMP |
38640-57L00-000 |
US $253.92 |
||
|
58
|
58
02162-0612A-000 SCREWBolt, bracket W/DISCHARGE HEADLAMP |
02162-0612A-000 |
from US $0.80 |
||
|
59
|
59
38640-57L10-000 SENSOR ASSY,RR HEIGHTW/DISCHARGE HEADLAMP |
38640-57L10-000 |
US $253.92 |
||
|
60
|
60
01551-0812A-000 BoltW/DISCHARGE HEADLAMP |
01551-0812A-000 |
US $13.20 |
||
|
61
|
61
08316-1008A-000 NUTNut, idle gear shaft W/DISCHARGE HEADLAMP |
08316-1008A-000 |
from US $0.76 |
||
|
62
|
62
38500-51K00-000
Horn assy
Chile,Germany,Israel,Russia |
38500-51K00-000 |
— | ||
| replacement | |||||
|
62
|
62
38500-51K01-000 HORN ASSYChile,Germany,Israel,Russia |
38500-51K01-000 |
US $82.40 |
||
|
62
|
62
38500-57L00-000 HORN ASSY,HIGH PITCHEDSaudi Arabia |
38500-57L00-000 |
US $73.97 |
||
|
63
|
63
09115-08001-000 BOLT(8X18) |
09115-08001-000 |
US $15.10 |
||
|
64
|
64
38500-73H10-000
Horn assy
Chile,Germany,Israel,Russia |
38500-73H10-000 |
— | ||
| replacement | |||||
|
64
|
64
38500-73H11-000 HORN ASSY,LOW PITCHEDChile,Germany,Israel,Russia |
38500-73H11-000 |
US $71.39 |
||
|
64
|
64
38500-80J00-000 HORN ASSY,LOW PITCHEDSaudi Arabia |
38500-80J00-000 |
US $73.97 |
||
|
65
|
65
09115-08001-000 BOLT(8X18) |
09115-08001-000 |
US $15.10 |
||
|
66
|
66
39145-57L00-000 RELAY ASSY,HLC CONTROLLERW/HEADLAMP WASHER |
39145-57L00-000 |
US $182.16 |
||
|
67
|
67
03241-0512A-000 SCREWW/HEADLAMP WASHER |
03241-0512A-000 |
from US $0.68 |
||
|
68
|
68
37175-57L00-000 ANTENNA ASSY,KLS INSIDE |
37175-57L00-000 |
US $39.01 |
||
|
69
|
69
37175-57L10-000 ANTENNA ASSY,KLS BACK DR |
37175-57L10-000 |
US $39.01 |
||
|
70
|
70
37190-57L10-000 RECEIVER ASSY,KEYLESS |
37190-57L10-000 |
US $241.04 |
||
|
71
|
71
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
72
|
72
38590-82K00-000
ブザーアッシ,キーレススタート
|
38590-82K00-000 |
— | ||
| replacement | |||||
|
72
|
72
38590-82K01-000 BUZZER ASSY,KLS |
38590-82K01-000 |
US $31.65 |
||
|
73
|
73
37730-57L20-000 CONTROLLER ASSY,PARK SNSRW/PARKING SENSOR |
37730-57L20-000 |
US $253.92 |
||
|
74
|
74
09148-05031-000 NUTW/PARKING SENSOR |
09148-05031-000 |
US $1.28 |
||
|
75
|
75
03541-0512B-000 SCREWW/PARKING SENSOR |
03541-0512B-000 |
from US $0.76 |
||
|
76
|
76
37734-57L00-000
Buzzer,park snsr
W/PARKING SENSOR |
37734-57L00-000 |
— | ||
| replacement | |||||
|
76
|
76
37734-57L01-000 BUZZER,PARKING SENSORW/PARKING SENSOR |
37734-57L01-000 |
US $35.70 |
||
|
77
|
77
37735-57L00-ZMT SENSOR ASSY,PARK SNSRW/PARKING SENSOR |
37735-57L00-ZMT |
US $288.80 |
||
|
77
|
77
37735-57L00-ZMU SENSOR ASSY,CLEARANCEW/PARKING SENSOR |
37735-57L00-ZMU |
US $200.56 |
||
|
77
|
77
37735-57L00-ZMV SENSOR ASSY,PARK SNSRW/PARKING SENSOR |
37735-57L00-ZMV |
US $288.80 |
||
|
77
|
77
37735-57L00-ZMW SENSOR ASSY,PARK SNSRW/PARKING SENSOR |
37735-57L00-ZMW |
US $446.40 |
||
|
77
|
77
37735-57L00-ZMZ SENSOR ASSY,CLEARANCEW/PARKING SENSOR |
37735-57L00-ZMZ |
US $200.56 |
||
|
77
|
77
37735-57L00-ZNA SENSOR ASSY,CLEARANCEW/PARKING SENSOR |
37735-57L00-ZNA |
US $165.97 |
||
|
77
|
77
37735-57L00-ZNB SENSOR ASSY,CLEARANCEW/PARKING SENSOR |
37735-57L00-ZNB |
US $200.56 |
||
|
77
|
77
37735-57L00-ZNC SENSOR ASSY,PARK SNSRW/PARKING SENSOR |
37735-57L00-ZNC |
US $200.56 |
||
|
77
|
77
37735-57L00-ZPM SENSOR ASSY,CLEARANCEW/PARKING SENSOR |
37735-57L00-ZPM |
US $165.97 |
||
|
78
|
78
37735-57L10-ZMT
SENSOR ASSY,PARK
W/PARKING SENSOR |
37735-57L10-ZMT |
— | ||
|
78
|
78
37735-57L10-ZMU SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZMU |
US $165.97 |
||
|
78
|
78
37735-57L10-ZMV SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZMV |
US $200.56 |
||
|
78
|
78
37735-57L10-ZMW SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZMW |
US $200.56 |
||
|
78
|
78
37735-57L10-ZMZ SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZMZ |
US $165.97 |
||
|
78
|
78
37735-57L10-ZNA SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZNA |
US $165.97 |
||
|
78
|
78
37735-57L10-ZNB SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZNB |
US $200.56 |
||
|
78
|
78
37735-57L10-ZNC SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZNC |
US $200.56 |
||
|
78
|
78
37735-57L10-ZPM SENSOR ASSY,PARKW/PARKING SENSOR |
37735-57L10-ZPM |
US $165.97 |
||
|
79
|
79
37736-57L00-000 BRACKET,PARK SNSRW/PARKING SENSOR |
37736-57L00-000 |
US $10.67 |
||
|
80
|
80
37736-57L10-000 BRACKET,PARK SENSOR HARNESSW/PARKING SENSOR |
37736-57L10-000 |
US $1.91 |
||
|
81
|
81
37736-57L20-000 BRACKET,PARK SENSOR HARNESSW/PARKING SENSOR |
37736-57L20-000 |
US $10.67 |
||
|
82
|
82
37737-57L00-ZMT BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZMT |
US $50.05 |
||
|
82
|
82
37737-57L00-ZMU BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZMU |
US $41.58 |
||
|
82
|
82
37737-57L00-ZMV BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZMV |
US $50.05 |
||
|
82
|
82
37737-57L00-ZMW BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZMW |
US $50.05 |
||
|
82
|
82
37737-57L00-ZMZ BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZMZ |
US $41.58 |
||
|
82
|
82
37737-57L00-ZNA BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZNA |
US $41.58 |
||
|
82
|
82
37737-57L00-ZNB BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZNB |
US $50.05 |
||
|
82
|
82
37737-57L00-ZNC BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZNC |
US $50.05 |
||
|
82
|
82
37737-57L00-ZPM BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L00-ZPM |
US $41.58 |
||
|
83
|
83
37737-57L10-ZMT
BEZEL,PARK SNSR
W/PARKING SENSOR |
37737-57L10-ZMT |
— | ||
|
83
|
83
37737-57L10-ZMU BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZMU |
US $41.58 |
||
|
83
|
83
37737-57L10-ZMV BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZMV |
US $50.05 |
||
|
83
|
83
37737-57L10-ZMW
BEZEL,PARK SNSR
W/PARKING SENSOR |
37737-57L10-ZMW |
— | ||
|
83
|
83
37737-57L10-ZMZ BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZMZ |
US $41.58 |
||
|
83
|
83
37737-57L10-ZNA BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZNA |
US $41.58 |
||
|
83
|
83
37737-57L10-ZNB BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZNB |
US $41.58 |
||
|
83
|
83
37737-57L10-ZNC BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZNC |
US $50.05 |
||
|
83
|
83
37737-57L10-ZPM BEZEL,PARK SNSRW/PARKING SENSOR |
37737-57L10-ZPM |
US $41.58 |
||
|
84
|
84
37737-57L20-000 RETAINER,PARK SNSRW/PARKING SENSOR |
37737-57L20-000 |
US $13.62 |
||
|
85
|
85
38885-57L00-000 CONTROLLER ASSY,ACTIVE 4WD4WD |
38885-57L00-000 |
US $364.32 |
||
|
86
|
86
09115-06005-000 BOLT(6X16)4WD |
09115-06005-000 |
US $1.28 |
||
|
87
|
87
38930-57L00-000 SENSOR ASSY,FORWARD |
38930-57L00-000 |
US $107.82 |
||
|
88
|
88
07120-0616A-000 BOLT |
07120-0616A-000 |
from US $4 |
||
|
89
|
89
38930-57L10-000 SENSOR ASSY,SIDE AIR BAG |
38930-57L10-000 |
US $129.54 |
||
|
90
|
90
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
91
|
91
09148-05031-000 NUT |
09148-05031-000 |
US $1.28 |
||
|
92
|
92
38930-57L20-000 SENSOR ASSY,SIDE AIR BAG |
38930-57L20-000 |
US $129.54 |
||
|
93
|
93
09115-06004-000 BOLT(6X16) |
09115-06004-000 |
US $12.50 |
||
