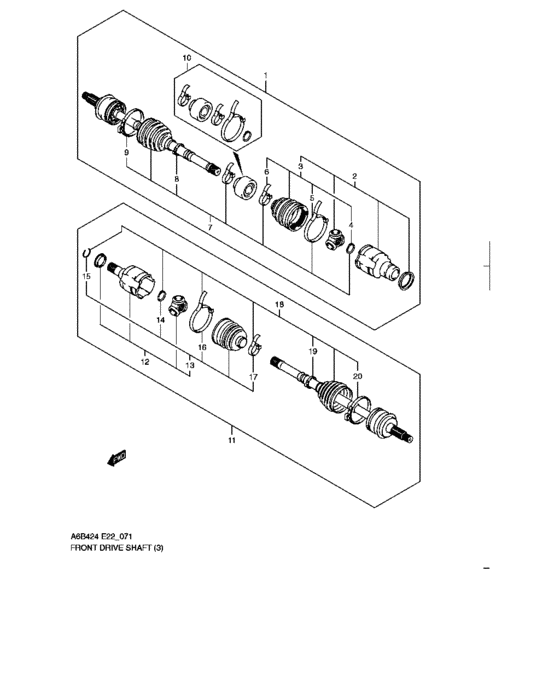

Front drive shaft (4WD) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-57LB0-000
Shaft assy,front drive,r
->44101-57LB1,USED WITH 27861-54L00 |
44101-57LB0-000 |
— | ||
| replacements | |||||
|
1
|
1
27861-54L01-000 RING,DRIVE SHAFT SNAP->44101-57LB1,USED WITH 27861-54L00 |
27861-54L01-000 |
US $1.60 |
||
|
1
|
1
44101-57LB2-000 SHAFT ASSY,FRONT DRIVE,R->44101-57LB1,USED WITH 27861-54L00 |
44101-57LB2-000 |
US $696.96 |
||
|
2
|
2
44117-57L80-000
Joint assy, diff side
->44117-57L81,USED WITH 27861-54L00 |
44117-57L80-000 |
— | ||
| replacements | |||||
|
2
|
2
27861-54L01-000 RING,DRIVE SHAFT SNAP->44117-57L81,USED WITH 27861-54L00 |
27861-54L01-000 |
US $1.60 |
||
|
2
|
2
44117-57L81-000
JOINT ASSY,DIFF SIDE
->44117-57L81,USED WITH 27861-54L00 |
44117-57L81-000 |
— | ||
|
2
|
2
44117-57L82-000 JOINT ASSY,DIFF SIDE->44117-57L81,USED WITH 27861-54L00 |
44117-57L82-000 |
US $432.96 |
||
|
3
|
3
44119-57L00-000
BOOT SET,DIFF SIDE
|
44119-57L00-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-57L01-000 BOOT SET,DIFF SIDE |
44119-57L01-000 |
US $111.20 |
||
|
4
|
4
44111-54L40-000 RING,SNAP |
44111-54L40-000 |
US $1.60 |
||
|
5
|
5
44121-78E00-000 CLAMP,BOOT |
44121-78E00-000 |
US $11.36 |
||
|
6
|
6
44123-54L40-000 BAND,BOOT |
44123-54L40-000 |
US $9.20 |
||
|
7
|
7
44118-57L10-000
BOOT SET,WHEEL SIDE
|
44118-57L10-000 |
— | ||
| replacement | |||||
|
7
|
7
44118-57L11-000 BOOT SET,WHEEL SIDE |
44118-57L11-000 |
US $96.53 |
||
|
8
|
8
44122-54L40-000 BAND,BOOT |
44122-54L40-000 |
US $10.56 |
||
|
9
|
9
44122-57L00-000 CLAMP |
44122-57L00-000 |
US $10.49 |
||
|
10
|
10
44125-57L10-000
DAMPER SET
JSAFRF91S00100619~ |
44125-57L10-000 |
— | ||
| replacement | |||||
|
10
|
10
44125-57L11-000 DAMPER SETJSAFRF91S00100619~ |
44125-57L11-000 |
US $66.88 |
||
|
11
|
11
44102-57L10-000
Shaft assy, front drive lh
|
44102-57L10-000 |
— | ||
| replacement | |||||
|
11
|
11
44102-57L12-000 SHAFT ASSY,FRONT DRIVE,L |
44102-57L12-000 |
US $696.96 |
||
|
12
|
12
44117-57L70-000
Joint assy,diff side
|
44117-57L70-000 |
— | ||
| replacements | |||||
|
12
|
12
44117-57L71-000
JOINT ASSY,DIFF SIDE
|
44117-57L71-000 |
— | ||
|
12
|
12
44117-57L72-000 JOINT ASSY,DIFF SIDE |
44117-57L72-000 |
US $432.96 |
||
|
13
|
13
44119-57L70-000
BOOT SET,DIFF SIDE
|
44119-57L70-000 |
— | ||
| replacement | |||||
|
13
|
13
44119-57L71-000 BOOT SET,DIFF SIDE |
44119-57L71-000 |
US $95.76 |
||
|
14
|
14
44111-54L40-000 RING,SNAP |
44111-54L40-000 |
US $1.60 |
||
|
15
|
15
44112-54L50-000 CIRCLIP |
44112-54L50-000 |
US $5.26 |
||
|
16
|
16
44121-78E00-000 CLAMP,BOOT |
44121-78E00-000 |
US $11.36 |
||
|
17
|
17
44123-54L40-000 BAND,BOOT |
44123-54L40-000 |
US $9.20 |
||
|
18
|
18
44118-57L70-000
BOOT SET,WHEEL SIDE
|
44118-57L70-000 |
— | ||
| replacement | |||||
|
18
|
18
44118-57L71-000 BOOT SET,WHEEL SIDE |
44118-57L71-000 |
US $123.20 |
||
|
19
|
19
44122-54L40-000 BAND,BOOT |
44122-54L40-000 |
US $10.56 |
||
|
20
|
20
44122-57L00-000 CLAMP |
44122-57L00-000 |
US $10.49 |
||
