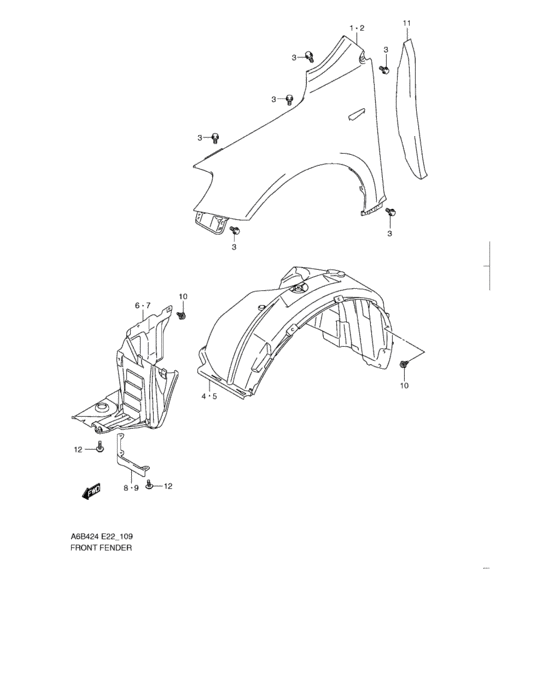

Front fender (FRONT FENDER) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57600-57810-000 PANEL SET,FR FENDER,RH |
57600-57810-000 |
US $276 |
||
|
2
|
2
57700-57810-000 PANEL SET,FR FENDER,LH |
57700-57810-000 |
US $276 |
||
|
3
|
3
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
72321-57L00-000 LINING,FR FENDER,R |
72321-57L00-000 |
US $136 |
||
|
5
|
5
72322-57L00-000 LINING,FR FENDER,L |
72322-57L00-000 |
US $136 |
||
|
6
|
6
72323-57L00-000 LINING,FR FENDER LWR,RN/REAR SPOILER |
72323-57L00-000 |
US $110.40 |
||
|
6
|
6
72320-57L00-000
LINING,FR FENDER LWR,R
W/REAR SPOILER |
72320-57L00-000 |
— | ||
|
7
|
7
72324-57L00-000 LINING,FR FENDER LWR,LN/REAR SPOILER |
72324-57L00-000 |
US $100 |
||
|
7
|
7
72350-57L00-000
LINING,FR FENDER LWR,L
W/REAR SPOILER |
72350-57L00-000 |
— | ||
|
8
|
8
72325-57L00-000 STRAKE,FRONT FENDER,R |
72325-57L00-000 |
US $22.40 |
||
|
9
|
9
72326-57L00-000 STRAKE,FRONT FENDER,L |
72326-57L00-000 |
US $24.80 |
||
|
10
|
10
09409-07340-000 CLIP |
09409-07340-000 |
US $1.22 |
||
|
11
|
11
72351-57L00-000 PAD,FR FENDER REAR |
72351-57L00-000 |
US $52.62 |
||
|
12
|
12
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
