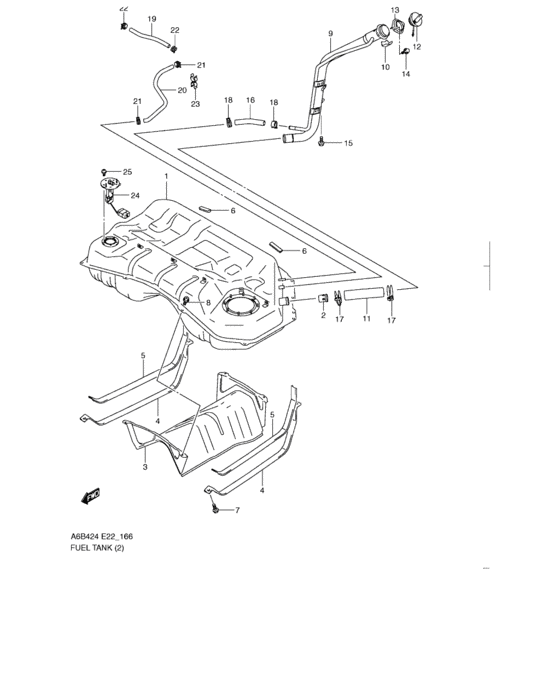

Fuel tank (4WD) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-57L50-000
Tank assy,fuel
|
89101-57L50-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-57L70-000 TANK ASSY,FUEL |
89101-57L70-000 |
US $1,105.28 |
||
|
2
|
2
89270-75F00-000 VALVE,FUEL TANK INLET |
89270-75F00-000 |
US $7.90 |
||
|
3
|
3
89310-57L50-000 PROTECTOR,FUEL TANK |
89310-57L50-000 |
US $137.63 |
||
|
4
|
4
89360-57L50-000 BELT,FUEL TANK FIXER |
89360-57L50-000 |
US $70.40 |
||
|
5
|
5
89385-57L00-000 PAD,FUEL TANK BELT |
89385-57L00-000 |
US $32.80 |
||
|
6
|
6
89445-60G00-000 PROTECTOR,TANK FLANGE |
89445-60G00-000 |
US $6.48 |
||
|
7
|
7
09118-10073-000 BOLT(10X30) |
09118-10073-000 |
US $1.44 |
||
|
8
|
8
02162-0612C-000 SCREW |
02162-0612C-000 |
US $9.60 |
||
|
9
|
9
89201-57L10-000
NECK ASSY,FUEL FILLER
|
89201-57L10-000 |
— | ||
|
10
|
10
89232-57L00-000 COVER,FUEL FILLER NECK |
89232-57L00-000 |
US $2.91 |
||
|
11
|
11
89241-57L00-000 HOSE,FUEL TANK FILLER |
89241-57L00-000 |
US $15.53 |
||
|
12
|
12
89260-77K01-000 CAP ASSY,FUEL FILLER |
89260-77K01-000 |
from US $29.93 |
||
|
13
|
13
89285-58J00-000 PACKING,FUEL FILLER |
89285-58J00-000 |
US $6.24 |
||
|
14
|
14
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
15
|
15
09116-06205-000 BOLT(6X16) |
09116-06205-000 |
from US $0.96 |
||
|
16
|
16
09355-13208-600 HOSE(13X19.8X600)L:600->200 |
09355-13208-600 |
US $13.69 |
||
|
17
|
17
09400-45411-000 CLAMP |
09400-45411-000 |
US $28.70 |
||
|
18
|
18
09401-18406-000 CLIP |
09401-18406-000 |
US $17.70 |
||
|
19
|
19
09355-56128-600 HOSE(5.6X12.4X600)L:600->210 |
09355-56128-600 |
US $8.64 |
||
|
20
|
20
09355-56128-600 HOSE(5.6X12.4X600)L:600->400 |
09355-56128-600 |
US $8.64 |
||
|
21
|
21
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
22
|
22
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
23
|
23
09408-00050-000 CLAMP |
09408-00050-000 |
from US $1.28 |
||
|
24
|
24
34810-57L10-000 GAUGE ASSY,FUEL LEVEL |
34810-57L10-000 |
US $153.60 |
||
|
25
|
25
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
