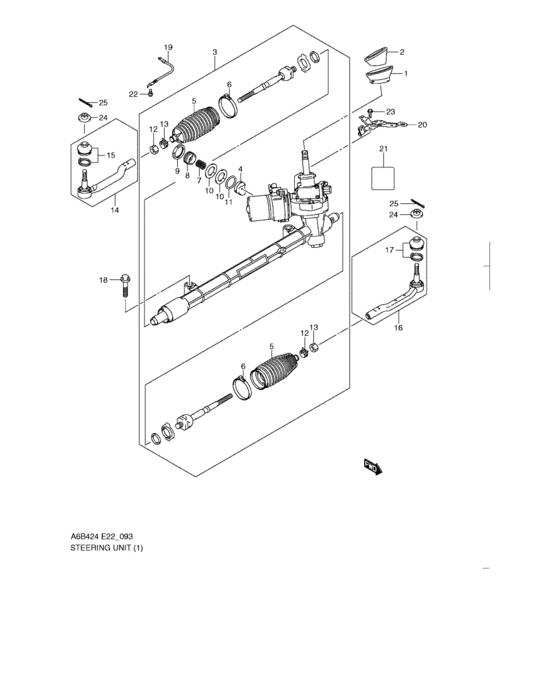

Steering unit (LHD) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48451-57L50-000 GROMMET,STEERING GEAR CASE |
48451-57L50-000 |
US $18.33 |
||
|
2
|
2
48491-57L50-000 PACKING,STEERING GEAR CASE |
48491-57L50-000 |
US $11.48 |
||
|
3
|
3
48580-57L50-000
BOX ASSY,STRG GEAR
|
48580-57L50-000 |
— | ||
|
4
|
4
48534-57L00-000 PRESSURE PAD KIT |
48534-57L00-000 |
US $48.58 |
||
|
5
|
5
48571-57L00-000 BOOT KIT |
48571-57L00-000 |
US $42.40 |
||
|
6
|
6
48575-57L00-000 BAND |
48575-57L00-000 |
US $8.16 |
||
|
7
|
7
48591-57L00-000 COIL SPRING |
48591-57L00-000 |
US $5.85 |
||
|
8
|
8
48592-57L00-000 ADJUST COVER |
48592-57L00-000 |
US $14.57 |
||
|
9
|
9
48593-57L00-000
NUT,LOCK
|
48593-57L00-000 |
— | ||
|
10
|
10
48595-57L00-000 CONICAL SPRING |
48595-57L00-000 |
US $5.23 |
||
|
11
|
11
48596-57L00-000 O-RING KIT |
48596-57L00-000 |
US $17.63 |
||
|
12
|
12
48817-57L00-000 NUT,TIE-ROD END LOCK |
48817-57L00-000 |
US $2.24 |
||
|
13
|
13
48871-57L00-000 CLIP |
48871-57L00-000 |
US $2.24 |
||
|
14
|
14
48810-57L00-000 END,STEERING TIE-ROD,R |
48810-57L00-000 |
from US $82.80 |
||
|
15
|
15
48811-57810-000
SEAL SET,DUST
|
48811-57810-000 |
— | ||
| replacement | |||||
|
15
|
15
48811-57811-000 Seal Set,dust |
48811-57811-000 |
US $26.40 |
||
|
16
|
16
48820-57L00-000 END,STEERING TIE-ROD,L |
48820-57L00-000 |
from US $73.35 |
||
|
17
|
17
48811-57810-000
SEAL SET,DUST
|
48811-57810-000 |
— | ||
| replacement | |||||
|
17
|
17
48811-57811-000 Seal Set,dust |
48811-57811-000 |
US $26.40 |
||
|
18
|
18
48528-57L00-000 BOLT,STRG GEAR BOX NO.1 |
48528-57L00-000 |
US $9.64 |
||
|
19
|
19
48531-57L00-000 WIRE,EARTH |
48531-57L00-000 |
US $18.11 |
||
|
20
|
20
48574-57L50-000 BRACKET,EPS MOTOR HARNESS |
48574-57L50-000 |
US $8.83 |
||
|
21
|
21
48599-57L00-000 SEAL,PROTECTOR |
48599-57L00-000 |
US $4.97 |
||
|
22
|
22
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
23
|
23
01550-0616C-000 Bolt |
01550-0616C-000 |
US $0.77 |
||
|
24
|
24
48837-57L00-000 NUT,TIE-ROD END CASTLE |
48837-57L00-000 |
US $8.57 |
||
|
25
|
25
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
