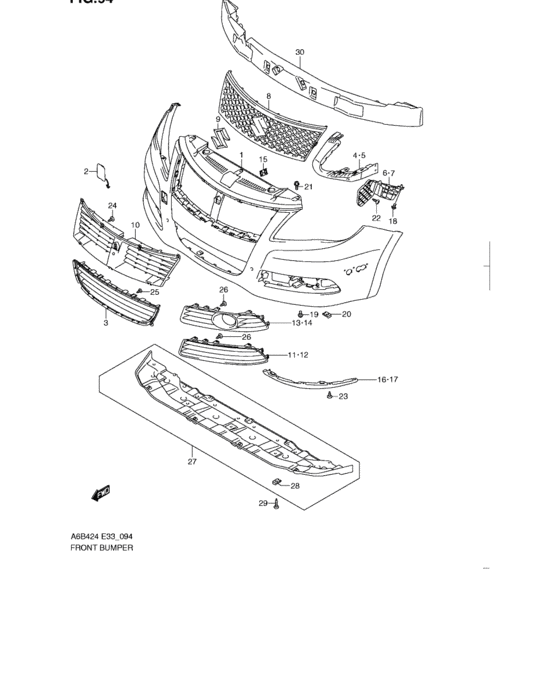

Front bumper (FRONT BUMPER) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- U.S.A.
- drive
- 4WD
- transmission
- MT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71700-57810-T2G
BUMPER,FR(MATERIAL COLOR)
PAINT TO MATCH |
71700-57810-T2G |
— | ||
|
2
|
2
71712-57L00-000 CAP,FR BUMPERPAINT TO MATCH |
71712-57L00-000 |
from US $6.59 |
||
|
3
|
3
71721-57L00-5PK GRILLE,RDTR LWR |
71721-57L00-5PK |
US $85.12 |
||
|
4
|
4
71731-57L00-000 HOLDER,FR BUMPER FR,R |
71731-57L00-000 |
from US $23.11 |
||
|
5
|
5
71732-57L00-000 HOLDER,FR BUMPER FR,L |
71732-57L00-000 |
from US $22.05 |
||
|
6
|
6
71733-57L00-000 HOLDER,FR BUMPER SIDE,R |
71733-57L00-000 |
from US $11.75 |
||
|
7
|
7
71734-57L00-000 HOLDER,FR BUMPER SIDE,L |
71734-57L00-000 |
from US $11.27 |
||
|
8
|
8
71741-57L00-ZNE GRILLE,RDTR UPR |
71741-57L00-ZNE |
US $627.20 |
||
|
9
|
9
77811-65J00-0PG EMBLEM,MARK S |
77811-65J00-0PG |
from US $17.64 |
||
|
10
|
10
71745-57L00-000 COVER,RADIATOR UPR GRILLE |
71745-57L00-000 |
from US $73.85 |
||
|
11
|
11
71751-57L00-5PK BEZEL,FR FOG LAMP,RN/FOG LAMP |
71751-57L00-5PK |
US $35.73 |
||
|
12
|
12
71752-57L00-5PK BEZEL,FR FOG LAMP,LN/FOG LAMP |
71752-57L00-5PK |
from US $26.91 |
||
|
13
|
13
71751-57L10-5PK BEZEL,FR FOG LAMP,RW/FOG LAMP |
71751-57L10-5PK |
US $35.20 |
||
|
14
|
14
71752-57L10-5PK BEZEL,FR FOG LAMP,LW/FOG LAMP |
71752-57L10-5PK |
US $30.54 |
||
|
15
|
15
71771-75F00-000 RETAINER,LICENSE PLATE |
71771-75F00-000 |
US $3.08 |
||
|
16
|
16
71772-57L00-000 SKIRT,FR AIR DAM,R |
71772-57L00-000 |
from US $23.02 |
||
|
17
|
17
71773-57L00-000 SKIRT,FR AIR DAM,L |
71773-57L00-000 |
from US $25.25 |
||
|
18
|
18
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
19
|
19
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
20
|
20
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
|
21
|
21
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
22
|
22
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.65 |
||
|
23
|
23
09132-05046-000 SCREW(5X12) |
09132-05046-000 |
from US $1.01 |
||
|
24
|
24
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
25
|
25
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
26
|
26
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
27
|
27
72390-57L10-000
Cover, fr bumper lower
|
72390-57L10-000 |
— | ||
| replacement | |||||
|
27
|
27
72390-57L11-000 COVER,FR BUMPER LWR |
72390-57L11-000 |
US $55.06 |
||
|
28
|
28
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
|
29
|
29
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
30
|
30
72511-57L10-000 ABSORBER,FR BUMPER UPR |
72511-57L10-000 |
US $180.69 |
||
