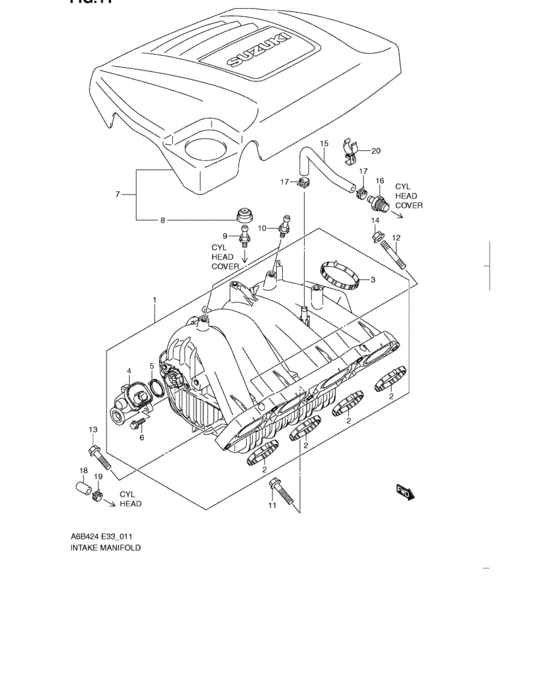

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- U.S.A.
- drive
- 4WD
- transmission
- MT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-57L10-000 MANIFOLD,INTK |
13110-57L10-000 |
US $584.32 |
||
|
2
|
2
13119-80J00-000 GASKET,INTK MANF |
13119-80J00-000 |
from US $4.57 |
||
|
3
|
3
13421-57L10-000 GASKET,THROTTLE BODY |
13421-57L10-000 |
US $15.52 |
||
|
4
|
4
13471-80J00-000 ACTUATOR,INTK CONT VALVE |
13471-80J00-000 |
US $137.57 |
||
|
5
|
5
13473-80J00-000 GASKET,VALVE ACTUATOR |
13473-80J00-000 |
US $5.85 |
||
|
6
|
6
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
7
|
7
13170-57L00-000 COVER,ENGINE |
13170-57L00-000 |
US $198.72 |
||
|
8
|
8
13175-79K00-000 BUSH,ENG COVER |
13175-79K00-000 |
US $5.59 |
||
|
9
|
9
13176-57L00-000 BOLT,ENG COVER LONG |
13176-57L00-000 |
US $5.92 |
||
|
10
|
10
13176-67J00-000 BOLT,ENG COVER |
13176-67J00-000 |
US $4.42 |
||
|
11
|
11
09103-08440-000 BOLT(8X35) |
09103-08440-000 |
US $19.10 |
||
|
12
|
12
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.44 |
||
|
13
|
13
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.12 |
||
|
14
|
14
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
15
|
15
11192-57L00-000 HOSE,PCV |
11192-57L00-000 |
US $19.20 |
||
|
16
|
16
18118-78K00-000 VALVE,PCV |
18118-78K00-000 |
US $47.20 |
||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
18
|
18
09251-07004-000 CAP |
09251-07004-000 |
US $43.40 |
||
|
19
|
19
09401-11420-000 CLIP |
09401-11420-000 |
US $1.52 |
||
|
20
|
20
09408-00157-000 CLAMP |
09408-00157-000 |
US $20.20 |
