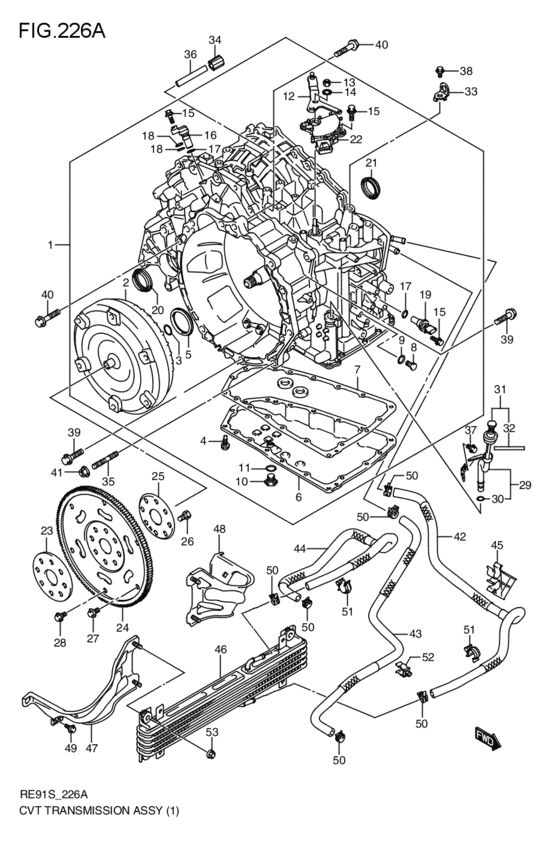

cvt - transmission assy (2WD; 2009-06-01~) Diagram Suzuki KIZASHI
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-57LV0-000
Auto transmission assy, cvt
2WD; 2009-06-01~ |
21000-57LV0-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-57LV2-000 T/M ASSY,AUTOMATIC2WD; 2009-06-01~ |
21000-57LV2-000 |
US $13,350.64 |
||
|
2
|
2
22710-57L10-000 CONVERTER,TORQUE2WD; 2009-06-01~ |
22710-57L10-000 |
US $1,482.64 |
||
|
3
|
3
24112-54LS0-000 O-RING,INPUT SHAFT2WD; 2009-06-01~ |
24112-54LS0-000 |
US $4.34 |
||
|
4
|
4
24362-54LS0-000 BOLT,OIL PAN2WD; 2009-06-01~ |
24362-54LS0-000 |
US $3.86 |
||
|
5
|
5
24722-54LS0-000 SEAL,INPUT OIL2WD; 2009-06-01~ |
24722-54LS0-000 |
from US $14.42 |
||
|
6
|
6
24761-54LS0-000 Oil Pan, unused2WD; 2009-06-01~ |
24761-54LS0-000 |
US $127.68 |
||
|
7
|
7
24762-54LS0-000 GASKET,OIL PAN2WD; 2009-06-01~ |
24762-54LS0-000 |
from US $38.36 |
||
|
8
|
8
24791-54LS0-000 PLUG,THD2WD; 2009-06-01~ |
24791-54LS0-000 |
US $6.59 |
||
|
9
|
9
24792-54LS0-000 O-RING,THD PLUG2WD; 2009-06-01~ |
24792-54LS0-000 |
US $3.28 |
||
|
10
|
10
24823-54LS0-000 PLUG,DRAIN2WD; 2009-06-01~ |
24823-54LS0-000 |
US $4.80 |
||
|
11
|
11
24824-54LS0-000 GASKET,DRAIN PLUG2WD; 2009-06-01~ |
24824-54LS0-000 |
from US $3.65 |
||
|
12
|
12
25942-54LS0-000 LEVER,SELECT2WD; 2009-06-01~ |
25942-54LS0-000 |
US $40.85 |
||
|
13
|
13
25943-54LS0-000 NUT2WD; 2009-06-01~ |
25943-54LS0-000 |
US $3.09 |
||
|
14
|
14
25944-54LS0-000 WASHER,SELECT LEVER2WD; 2009-06-01~ |
25944-54LS0-000 |
US $3.46 |
||
|
15
|
15
25948-54LS0-000 Bolt2WD; 2009-06-01~ |
25948-54LS0-000 |
US $4.12 |
||
|
16
|
16
26141-54LS0-000
SENSOR,REVOLUTION
2WD; 2009-06-01~ |
26141-54LS0-000 |
— | ||
| replacement | |||||
|
16
|
16
26141-65KF1-000 SENSOR ASSY,REVOLUTION2WD; 2009-06-01~ |
26141-65KF1-000 |
US $56.80 |
||
|
17
|
17
26142-54LS0-000 O-RING2WD; 2009-06-01~ |
26142-54LS0-000 |
from US $2.66 |
||
|
18
|
18
26143-54LS0-000 WASHER2WD; 2009-06-01~ |
26143-54LS0-000 |
from US $3.29 |
||
|
19
|
19
26151-54LS0-000
SENSOR,REVOLUTION
2WD; 2009-06-01~ |
26151-54LS0-000 |
— | ||
| replacement | |||||
|
19
|
19
26151-54LS1-000 SENSOR,REVOLUTION2WD; 2009-06-01~ |
26151-54LS1-000 |
US $42.56 |
||
|
20
|
20
27432-54LS0-000
Seal,diff side oil rh
2WD; 2009-06-01~ |
27432-54LS0-000 |
— | ||
| replacement | |||||
|
20
|
20
27431-54LS0-000 SEAL,DIFF SIDE OIL2WD; 2009-06-01~ |
27431-54LS0-000 |
from US $8.51 |
||
|
21
|
21
27431-54LS0-000 SEAL,DIFF SIDE OIL2WD; 2009-06-01~ |
27431-54LS0-000 |
from US $8.51 |
||
|
22
|
22
37720-54LS0-000 SWITCH,SHIFT2WD; 2009-06-01~ |
37720-54LS0-000 |
US $191.52 |
||
|
23
|
23
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR2WD; 2009-06-01~ |
22611-85FA0-000 |
US $31.20 |
||
|
24
|
24
22620-78K10-000 PLATE,TC DRIVE2WD; 2009-06-01~ |
22620-78K10-000 |
from US $171.72 |
||
|
25
|
25
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR2WD; 2009-06-01~ |
22631-85FA0-000 |
US $25.60 |
||
|
26
|
26
09103-10282-000 BOLT(10X18.5)2WD; 2009-06-01~ |
09103-10282-000 |
US $2.08 |
||
|
27
|
27
09103-08516-000 BOLT(8X9.5)2WD; 2009-06-01~ |
09103-08516-000 |
from US $1.12 |
||
|
28
|
28
09103-08517-000 BOLT(8X9.5)2WD; 2009-06-01~ |
09103-08517-000 |
from US $3.65 |
||
|
29
|
29
24770-54LS0-000 TUBE ASSY,T/M OIL FILLER2WD; 2009-06-01~ |
24770-54LS0-000 |
US $52.45 |
||
|
30
|
30
09280-09008-000 O RING(D:2.1,ID:8.8)O ring (d:2.1,id:8.8) 2WD; 2009-06-01~ |
09280-09008-000 |
from US $1.49 |
||
|
31
|
31
24830-54LS0-000 GAUGE,T/M OIL LEVEL2WD; 2009-06-01~ |
24830-54LS0-000 |
US $27.60 |
||
|
32
|
32
24839-65KF1-000 EMBLEM,CVTF2WD; 2009-06-01~ |
24839-65KF1-000 |
US $3.28 |
||
|
33
|
33
24855-54LS0-000 HOOK,TRANSMISSION2WD; 2009-06-01~ |
24855-54LS0-000 |
US $3.46 |
||
|
34
|
34
27991-65D01-000 PLUG,BREATHER2WD; 2009-06-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
35
|
35
09108-12012-000 BOLT,STUD2WD; 2009-06-01~ |
09108-12012-000 |
from US $2.50 |
||
|
36
|
36
09352-60103-600
HOSE(6X10X600)
L:600>50; 2WD; 2009-06-01~ |
09352-60103-600 |
— | ||
| replacement | |||||
|
36
|
36
09352-60104-600 Hose(6X10X600)L:600>50; 2WD; 2009-06-01~ |
09352-60104-600 |
from US $12.12 |
||
|
37
|
37
01550-0612A-000 BOLT2WD; 2009-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
38
|
38
01550-1020A-000 BOLTBolt, bal sprocket 2WD; 2009-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
39
|
39
01550-1245A-000 BOLT2WD; 2009-06-01~ |
01550-1245A-000 |
US $1.44 |
||
|
40
|
40
01550-1255A-000 Bolt2WD; 2009-06-01~ |
01550-1255A-000 |
US $21.70 |
||
|
41
|
41
08316-1012A-000 NUT2WD; 2009-06-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
42
|
42
22931-57L10-000 HOSE,OIL COOLER NO.12WD; 2009-06-01~ |
22931-57L10-000 |
US $72.50 |
||
|
43
|
43
22932-57L10-000 HOSE,OIL COOLER NO.22WD; 2009-06-01~ |
22932-57L10-000 |
US $51.52 |
||
|
44
|
44
22933-57L10-000 HOSE,OIL COOLER NO.32WD; 2009-06-01~ |
22933-57L10-000 |
US $69.17 |
||
|
45
|
45
22938-57L10-000 CLAMP,OIL COOLER HOSE NO.22WD; 2009-06-01~ |
22938-57L10-000 |
US $3.28 |
||
|
46
|
46
24931-57L10-000 COOLER,CVT OIL2WD; 2009-06-01~ |
24931-57L10-000 |
US $587.84 |
||
|
47
|
47
24932-57L10-000 BRACKET,OIL COOLER,R2WD; 2009-06-01~ |
24932-57L10-000 |
US $29.81 |
||
|
48
|
48
24933-57L10-000 BRACKET,OIL COOLER,L2WD; 2009-06-01~ |
24933-57L10-000 |
US $29.81 |
||
|
49
|
49
09116-08111-000 BOLT(8X16)Bolt, fender front 2WD; 2009-06-01~ |
09116-08111-000 |
from US $5.17 |
||
|
50
|
50
09401-15410-000 CLIP2WD; 2009-06-01~ |
09401-15410-000 |
from US $2.24 |
||
|
51
|
51
09403-16307-000 CLAMP2WD; 2009-06-01~ |
09403-16307-000 |
from US $1.12 |
||
|
52
|
52
09403-16310-000 CLAMP2WD; 2009-06-01~ |
09403-16310-000 |
US $16.20 |
||
|
53
|
53
08316-1008A-000 NUTNut, idle gear shaft 2WD; 2009-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
