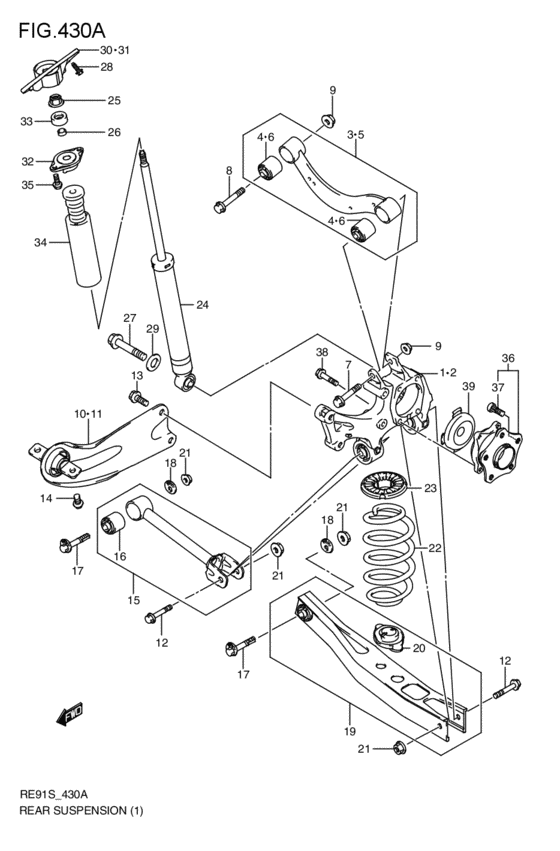

rear suspension (2WD; 2009-06-01~) Diagram Suzuki KIZASHI
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- BGW
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-57L00-000 KNUCKLE ASSY,RR SPNSN,R2WD; 2009-06-01~ |
46110-57L00-000 |
US $482.24 |
||
|
2
|
2
46150-57L00-000 KNUCKLE ASSY,RR SPNSN,L2WD; 2009-06-01~ |
46150-57L00-000 |
US $482.24 |
||
|
3
|
3
46201-57L00-000 ARM ASSY,RR SPNSN UPR,R2WD; 2009-06-01~ |
46201-57L00-000 |
US $171.86 |
||
|
4
|
4
46120-57L00-000 BUSH,RR SPNSN ARM2WD; 2009-06-01~ |
46120-57L00-000 |
from US $41.36 |
||
|
5
|
5
46202-57L00-000 ARM ASSY,RR SPNSN UPR,L2WD; 2009-06-01~ |
46202-57L00-000 |
US $171.86 |
||
|
6
|
6
46120-57L00-000 BUSH,RR SPNSN ARM2WD; 2009-06-01~ |
46120-57L00-000 |
from US $41.36 |
||
|
7
|
7
46213-57L00-000 BOLT,RR SPNSN UPPER ARM2WD; 2009-06-01~ |
46213-57L00-000 |
US $9.60 |
||
|
8
|
8
46214-57L00-000 BOLT,RR SPNSN ARM MOUNT2WD; 2009-06-01~ |
46214-57L00-000 |
US $9.28 |
||
|
9
|
9
09159-12064-000 NUT2WD; 2009-06-01~ |
09159-12064-000 |
from US $1.51 |
||
|
10
|
10
46205-57L00-000 ARM ASSY,RR SPNSN TRAILING,R2WD; 2009-06-01~ |
46205-57L00-000 |
from US $117.90 |
||
|
11
|
11
46206-57L00-000 ARM ASSY,RR SPNSN TRAILING,L2WD; 2009-06-01~ |
46206-57L00-000 |
from US $118.85 |
||
|
12
|
12
46214-57L00-000 BOLT,RR SPNSN ARM MOUNT2WD; 2009-06-01~ |
46214-57L00-000 |
US $9.28 |
||
|
13
|
13
46272-57L00-000 BOLT,RR SPNSN TRAILING ARM RR2WD; 2009-06-01~ |
46272-57L00-000 |
US $5.37 |
||
|
14
|
14
46273-57L00-000 BOLT,RR SPNSN TRAILING ARM FR2WD; 2009-06-01~ |
46273-57L00-000 |
US $4.34 |
||
|
15
|
15
46300-57L10-000 ROD ASSY,RR SPNSN CONTROL2WD; 2009-06-01~ |
46300-57L10-000 |
from US $96.93 |
||
|
16
|
16
46120-57L00-000 BUSH,RR SPNSN ARM2WD; 2009-06-01~ |
46120-57L00-000 |
from US $41.36 |
||
|
17
|
17
46330-57L00-000 BOLT,RR SPNSN ARM INNER2WD; 2009-06-01~ |
46330-57L00-000 |
from US $10.37 |
||
|
18
|
18
46333-57L00-000 WASHER,RR SPNSN ARM INR2WD; 2009-06-01~ |
46333-57L00-000 |
from US $2.40 |
||
|
19
|
19
46350-57L00-000 ARM ASSY,RR SPNSN,LWR2WD; 2009-06-01~ |
46350-57L00-000 |
from US $398.30 |
||
|
20
|
20
41320-57L00-000 SEAT,RR SPRING LOWER2WD; 2009-06-01~ |
41320-57L00-000 |
US $41.60 |
||
|
21
|
21
09159-12064-000 NUT2WD; 2009-06-01~ |
09159-12064-000 |
from US $1.51 |
||
|
22
|
22
41311-57L20-000
Spring,rear coil
2WD; 2009-06-01~ |
41311-57L20-000 |
— | ||
| replacement | |||||
|
22
|
22
41311-57L21-000 SPRING,RR COIL2WD; 2009-06-01~ |
41311-57L21-000 |
US $118.86 |
||
|
23
|
23
41341-80J00-000 SEAT,REAR SPRING UPPER2WD; 2009-06-01~ |
41341-80J00-000 |
US $26.40 |
||
|
24
|
24
41810-57L00-000 ABSORBER ASSY,RR SHOCK2WD; 2009-06-01~ |
41810-57L00-000 |
US $240.16 |
||
|
25
|
25
41814-57L00-000 NUT,RR SHOCK ABSORBER UPR2WD; 2009-06-01~ |
41814-57L00-000 |
US $8.64 |
||
|
26
|
26
41815-57L00-000 WASHER,RR SHOCK ABSORBER UPR2WD; 2009-06-01~ |
41815-57L00-000 |
US $17.60 |
||
|
27
|
27
41891-57L00-000 BOLT,RR SHOCK LOWER2WD; 2009-06-01~ |
41891-57L00-000 |
US $21.60 |
||
|
28
|
28
41892-57L00-000 BOLT,RR SHOCK SUPPORT2WD; 2009-06-01~ |
41892-57L00-000 |
US $1.76 |
||
|
29
|
29
41893-57L00-000 WASHER,RR SHOCK LWR2WD; 2009-06-01~ |
41893-57L00-000 |
US $10.40 |
||
|
30
|
30
41911-57L00-000 SUPPORT,REAR STRUT,R2WD; 2009-06-01~ |
41911-57L00-000 |
US $172.80 |
||
|
31
|
31
41912-57L00-000 SUPPORT,REAR STRUT,L2WD; 2009-06-01~ |
41912-57L00-000 |
from US $92.63 |
||
|
32
|
32
41913-57L00-000 CAP,RR SHOCK SUPPORT2WD; 2009-06-01~ |
41913-57L00-000 |
US $35.72 |
||
|
33
|
33
41920-57L00-000 MOUNT,RR SHOCK SUPPORT2WD; 2009-06-01~ |
41920-57L00-000 |
US $35.20 |
||
|
34
|
34
42250-57L00-000
Stopper assy, rear bump
2WD; 2009-06-01~ |
42250-57L00-000 |
— | ||
| replacement | |||||
|
34
|
34
42250-57L03-000 STOPPER ASSY,RR BUMP2WD; 2009-06-01~ |
42250-57L03-000 |
from US $27 |
||
|
35
|
35
46644-57L00-000 BOLT,RR SHOCK UPPER2WD; 2009-06-01~ |
46644-57L00-000 |
US $2.24 |
||
|
36
|
36
43402-57L00-000
Hub assy,rear wheel
2WD; 2009-06-01~ |
43402-57L00-000 |
— | ||
| replacement | |||||
|
36
|
36
43402-57L01-000 HUB ASSY,RR WHL2WD; 2009-06-01~ |
43402-57L01-000 |
from US $334.40 |
||
|
37
|
37
09119-12012-000 BOLT(12X38)2WD; 2009-06-01~ |
09119-12012-000 |
US $2.72 |
||
|
38
|
38
43403-57L00-000 BOLT,RR HUB MOUNT2WD; 2009-06-01~ |
43403-57L00-000 |
US $2.59 |
||
|
39
|
39
43411-57L00-000 COVER,AXLE PLATE2WD; 2009-06-01~ |
43411-57L00-000 |
US $5.63 |
||
