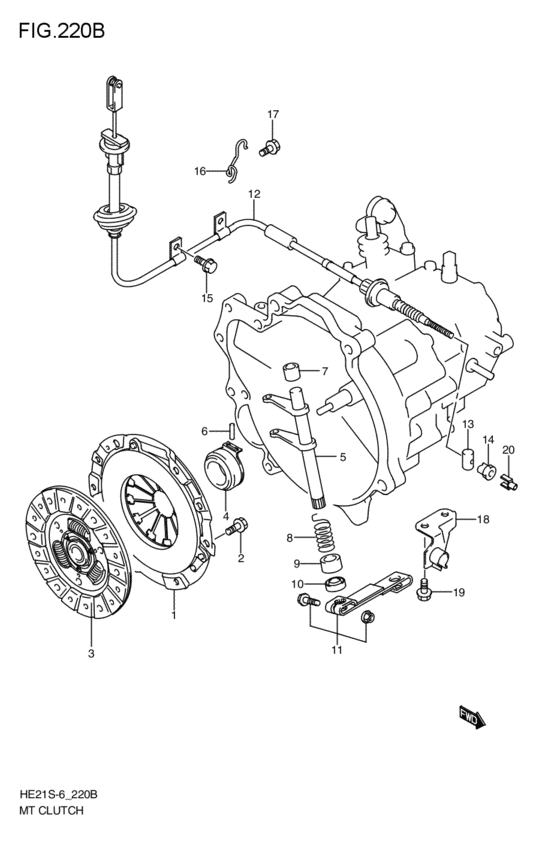

mt - clutch (MT; 2007-04-01~) Diagram Suzuki LAPIN
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-75F00-000
Cover assy,clutch
MT; 2007-04-01~ |
22100-75F00-000 |
— | ||
| replacement | |||||
|
1
|
1
22100-75F01-000 COVER ASSY,CLUTCHMT; 2007-04-01~ |
22100-75F01-000 |
US $174.40 |
||
|
2
|
2
09117-08096-000 BOLT(8X16)MT; 2007-04-01~ |
09117-08096-000 |
from US $1.28 |
||
|
3
|
3
22400-75FD0-000
Disc comp,clutch
MT:2WD; 2007-04-01~ |
22400-75FD0-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-75FD1-000 DISC COMP,CLUTCHMT:2WD; 2007-04-01~ |
22400-75FD1-000 |
US $107.82 |
||
|
4
|
4
09269-28004-000 BEARING(28X58X22)MT; 2007-04-01~ |
09269-28004-000 |
US $50.92 |
||
|
5
|
5
23260-73B20-000
Shaft comp,clutch release
MT; 2007-04-01~ |
23260-73B20-000 |
— | ||
| replacement | |||||
|
5
|
5
23260-73B21-000 SHAFT,CLUTCH RELEASEMT; 2007-04-01~ |
23260-73B21-000 |
US $43.79 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock MT; 2007-04-01~ |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
09300-14016-000 BUSH(14X18X20)MT; 2007-04-01~ |
09300-14016-000 |
US $2.24 |
||
|
8
|
8
23269-73B00-000 SPRING,RELEASE SHAFT RETURNMT; 2007-04-01~ |
23269-73B00-000 |
US $3.09 |
||
|
9
|
9
09300-14017-000 BUSH(14X22X15)MT; 2007-04-01~ |
09300-14017-000 |
from US $2.13 |
||
|
10
|
10
09283-14006-000 SEAL,OIL(14X22X6)MT; 2007-04-01~ |
09283-14006-000 |
from US $3.74 |
||
|
11
|
11
23250-73B10-000 ARM ASSY,CLUTCH RELEASEMT; 2007-04-01~ |
23250-73B10-000 |
US $52.80 |
||
|
12
|
12
23710-75H00-000 CABLE ASSY,CLUTCHMT; 2007-04-01~ |
23710-75H00-000 |
from US $59.65 |
||
|
13
|
13
09209-13018-000 PIN(13X18)MT; 2007-04-01~ |
09209-13018-000 |
from US $1.82 |
||
|
14
|
14
09150-06010-000 NUTMT; 2007-04-01~ |
09150-06010-000 |
from US $1.44 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket MT; 2007-04-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
23915-73B02-000 CLAMP,CLUTCH CABLEMT; 2007-04-01~ |
23915-73B02-000 |
US $3.72 |
||
|
17
|
17
09135-06027-000 BOLT(6X12)MT; 2007-04-01~ |
09135-06027-000 |
from US $1.12 |
||
|
18
|
18
23910-78G00-000 BRACKET,CLUTCH CABLEMT; 2007-04-01~ |
23910-78G00-000 |
US $13.38 |
||
|
19
|
19
09103-08266-000 BOLT(8X20)Bolt, lower MT; 2007-04-01~ |
09103-08266-000 |
from US $0.91 |
||
|
20
|
20
23922-76G00-000 CAP,CLUTCH CABLE JOINT LOCKMT; 2007-04-01~ |
23922-76G00-000 |
US $1.25 |
||
