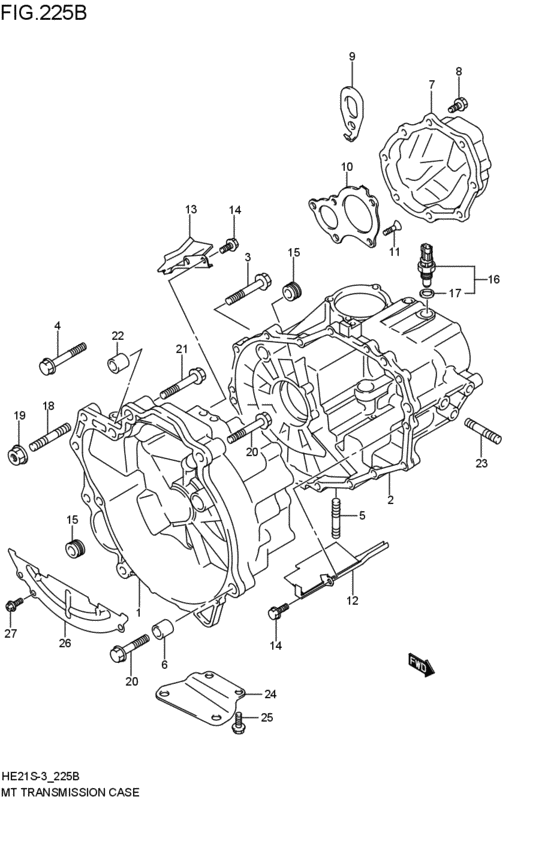

mt - transmission case (MT; 2004-10-01~2005-11-01) Diagram Suzuki LAPIN
- Year
- 2004 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-78G40-000 CASE,T/M,RMT; 2004-10-01~2005-11-01 |
24711-78G40-000 |
US $926.40 |
||
|
2
|
2
24721-78G40-000
Case,transmission,l
MT; 2004-10-01~2005-11-01 |
24721-78G40-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-78G41-000 CASE,T/M,LMT; 2004-10-01~2005-11-01 |
24721-78G41-000 |
US $499.84 |
||
|
3
|
3
01550-08403-000
Bolt
MT; 2004-10-01~2005-11-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 BoltMT; 2004-10-01~2005-11-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLTMT; 2004-10-01~2005-11-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-0855A-000 BOLTBolt, gear holder MT; 2004-10-01~2005-11-01 |
01550-0855A-000 |
from US $1.22 |
||
|
5
|
5
09108-08221-000 BOLT,STUDMT; 2004-10-01~2005-11-01 |
09108-08221-000 |
US $24.30 |
||
|
6
|
6
04211-13149-000 PINMT; 2004-10-01~2005-11-01 |
04211-13149-000 |
from US $1.28 |
||
|
7
|
7
24730-78G02-000 COVER,T/M SIDEMT; 2004-10-01~2005-11-01 |
24730-78G02-000 |
US $52.99 |
||
|
8
|
8
09135-06022-000
Bolt
MT; 2004-10-01~2005-11-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
8
|
8
09135-06027-000 BOLT(6X12)MT; 2004-10-01~2005-11-01 |
09135-06027-000 |
from US $1.12 |
||
|
9
|
9
24855-76G20-000 HOOK,TRANSMISSIONMT; 2004-10-01~2005-11-01 |
24855-76G20-000 |
US $4.12 |
||
|
10
|
10
24725-58J00-000 PLATE,T/M LEFT CASEMT; 2004-10-01~2005-11-01 |
24725-58J00-000 |
US $18.95 |
||
|
11
|
11
24728-65G40-000 SCREW,T/M LEFT CASE PLATEMT; 2004-10-01~2005-11-01 |
24728-65G40-000 |
US $2.58 |
||
|
12
|
12
24810-78G01-000 GUTTER,INPUT OILMT; 2004-10-01~2005-11-01 |
24810-78G01-000 |
US $9.57 |
||
|
13
|
13
24815-78G20-000 GUTTER,OILMT; 2004-10-01~2005-11-01 |
24815-78G20-000 |
US $3.90 |
||
|
14
|
14
09103-06083-000
Bolt (6x12)
MT; 2004-10-01~2005-11-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-06285-000 BOLT(6X12)Bolt (6x12) MT; 2004-10-01~2005-11-01 |
09103-06285-000 |
from US $1.28 |
||
|
15
|
15
09246-16010-000 PLUGMT; 2004-10-01~2005-11-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
15
|
15
09246-16021-000 Plug,t/m Oil DrainMT; 2004-10-01~2005-11-01 |
09246-16021-000 |
from US $4.01 |
||
|
16
|
16
37610-76G10-000 SWITCH ASSY,BACK UPMT; 2004-10-01~2005-11-01 |
37610-76G10-000 |
US $17.49 |
||
|
17
|
17
09280-11002-000 O RING(D:1.9,ID:11.4)MT; 2004-10-01~2005-11-01 |
09280-11002-000 |
from US $0.88 |
||
|
18
|
18
01421-10353-000
Stud 10x1.25x55
MT; 2004-10-01~2005-11-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
18
|
18
01421-1035A-000 BOLT,STUDMT; 2004-10-01~2005-11-01 |
01421-1035A-000 |
from US $4.13 |
||
|
18
|
18
01421-1035B-000 BOLT,STUDMT; 2004-10-01~2005-11-01 |
01421-1035B-000 |
US $17.30 |
||
|
19
|
19
08316-10103-000
Nut
MT; 2004-10-01~2005-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1010B-000 NUTMT; 2004-10-01~2005-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
20
|
20
01550-10553-000
Bolt
MT; 2004-10-01~2005-11-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1055B-000 BoltMT; 2004-10-01~2005-11-01 |
01550-1055B-000 |
from US $1.44 |
||
|
21
|
21
01550-10603-000
Bolt
MT; 2004-10-01~2005-11-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-1060B-000 BoltMT; 2004-10-01~2005-11-01 |
01550-1060B-000 |
US $1.60 |
||
|
21
|
21
01550-1060A-000 BoltMT; 2004-10-01~2005-11-01 |
01550-1060A-000 |
from US $1.60 |
||
|
22
|
22
04211-13149-000 PINMT; 2004-10-01~2005-11-01 |
04211-13149-000 |
from US $1.28 |
||
|
23
|
23
09108-10138-000 BOLT,STUDMT; 2004-10-01~2005-11-01 |
09108-10138-000 |
from US $3.83 |
||
|
24
|
24
24791-58J10-000 スチフナ,エンジン/トランスミッションMT; 2004-10-01~2005-11-01 |
24791-58J10-000 |
US $6.96 |
||
|
25
|
25
01550-10253-000
Bolt
MT; 2004-10-01~2005-11-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1025B-000 BoltBolt, rr swgarm bracket, l MT; 2004-10-01~2005-11-01 |
01550-1025B-000 |
from US $5.59 |
||
|
25
|
25
01550-1025A-000 BOLTBolt, drive gear MT; 2004-10-01~2005-11-01 |
01550-1025A-000 |
from US $1.06 |
||
|
26
|
26
29531-58J00-000
プレート,クラッチハウジング,ロア
MT; 2004-10-01~2005-11-01 |
29531-58J00-000 |
— | ||
| replacement | |||||
|
26
|
26
24793-65KF0-000
プレート,クラッチハウジングロア
MT; 2004-10-01~2005-11-01 |
24793-65KF0-000 |
— | ||
|
27
|
27
02162-06103-000
Bolt
MT; 2004-10-01~2005-11-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
27
|
27
02162-0610A-000 SCREWMT; 2004-10-01~2005-11-01 |
02162-0610A-000 |
from US $0.64 |
||
