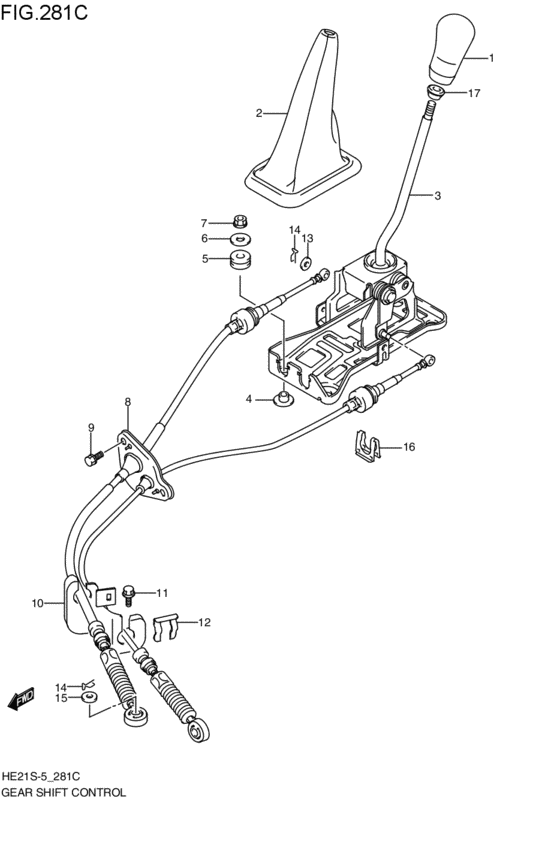

gearlever control (MT; 2006-04-01~2007-06-01) Diagram Suzuki LAPIN
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-78G20-AHA
KNOB,GEAR SHIFT CONTROL
MT; 2006-04-01~2007-06-01 |
28113-78G20-AHA |
— | ||
| replacement | |||||
|
1
|
1
28113-78G21-AHA KNOB,GEAR SHIFT CONTROLMT; 2006-04-01~2007-06-01 |
28113-78G21-AHA |
US $31.28 |
||
|
2
|
2
28130-75H01-JA6
ブーツアッシ,ギヤシフトコントロール
MT; 2006-04-01~2007-06-01 |
28130-75H01-JA6 |
— | ||
|
3
|
3
28101-75H21-000
レバーアッシ,ギヤシフトコントロール
MT; 2006-04-01~2007-06-01 |
28101-75H21-000 |
— | ||
|
4
|
4
28367-72J20-000 SPACER,GEAR CONT GUIDE CUSHIONMT; 2006-04-01~2007-06-01 |
28367-72J20-000 |
US $2.76 |
||
|
5
|
5
09320-12036-000 CUSHIONCushion, holder MT; 2006-04-01~2007-06-01 |
09320-12036-000 |
from US $1.92 |
||
|
6
|
6
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT; 2006-04-01~2007-06-01 |
09160-08151-000 |
from US $0.91 |
||
|
7
|
7
08316-1008A-000 NUTNut, idle gear shaft MT; 2006-04-01~2007-06-01 |
08316-1008A-000 |
from US $0.76 |
||
|
8
|
8
28300-78G03-000 CABLE ASSY,GEAR SHIFT CONTROLMT; 2006-04-01~2007-06-01 |
28300-78G03-000 |
US $228.16 |
||
|
9
|
9
02162-0620C-000 SCREWMT; 2006-04-01~2007-06-01 |
02162-0620C-000 |
from US $0.77 |
||
|
10
|
10
28391-78G02-000 BRACKET,T/M CONT CABLEMT; 2006-04-01~2007-06-01 |
28391-78G02-000 |
US $18.95 |
||
|
11
|
11
01550-0820A-000 BOLTBolt, funnel bracket MT; 2006-04-01~2007-06-01 |
01550-0820A-000 |
from US $0.96 |
||
|
12
|
12
09383-19001-000 E RINGClip MT; 2006-04-01~2007-06-01 |
09383-19001-000 |
from US $2.72 |
||
|
13
|
13
08322-0108A-000 WASHERMT; 2006-04-01~2007-06-01 |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
09385-08007-000 PIN,SNAPClip MT; 2006-04-01~2007-06-01 |
09385-08007-000 |
from US $1.09 |
||
|
15
|
15
09160-08143-000 WASHER(8.5X38X1.6)MT; 2006-04-01~2007-06-01 |
09160-08143-000 |
from US $0.96 |
||
|
16
|
16
29365-79A40-000 CLIPMT; 2006-04-01~2007-06-01 |
29365-79A40-000 |
US $4 |
||
|
17
|
17
28139-80G20-000
Holder,gr shf cont lever boot
MT; 2006-04-01~2007-06-01 |
28139-80G20-000 |
— | ||
| replacement | |||||
|
17
|
17
28139-80G21-000 HOLDER,GR SHF CONT LEVER BOOTMT; 2006-04-01~2007-06-01 |
28139-80G21-000 |
US $2.24 |
||
