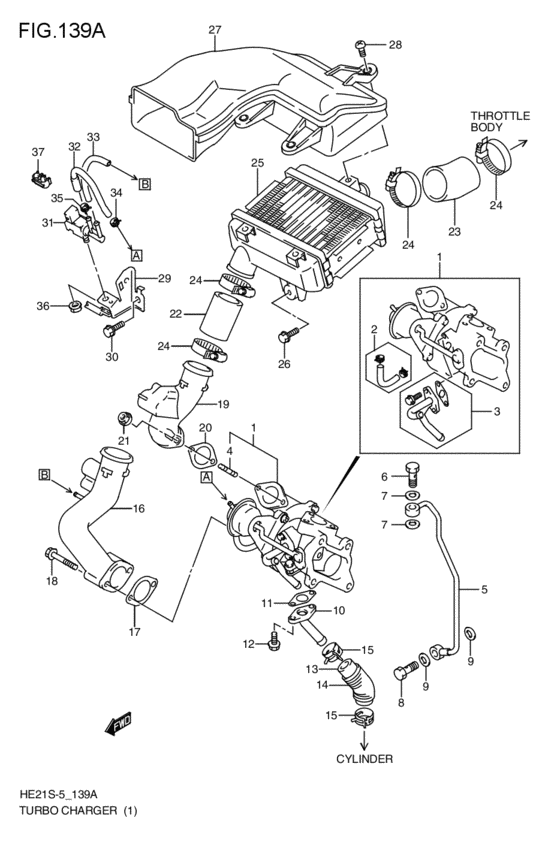

turbo charger (TURBO:T; 2006-04-01~2007-06-01) Diagram Suzuki LAPIN
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- T
- abs
- ABS
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13900-83G61-000
チャージャアッシ,ターボ
TURBO:T; 2006-04-01~2007-06-01 |
13900-83G61-000 |
— | ||
| replacement | |||||
|
1
|
1
13900-83G64-000 CHARGER ASSY,TURBOTURBO:T; 2006-04-01~2007-06-01 |
13900-83G64-000 |
US $2,352 |
||
|
2
|
2
13913-83GA0-000 HOSE SET,WASTEGATEISHIKAWAJIMA; TURBO:T; 2006-04-01~2007-06-01 |
13913-83GA0-000 |
US $22.63 |
||
|
2
|
2
13913-83G50-000 HOSE,WASTEGATEHITACHI; TURBO:T; 2006-04-01~2007-06-01 |
13913-83G50-000 |
US $18.77 |
||
|
3
|
3
13919-83GA0-000 PIPE SET,WATERISHIKAWAJIMA; TURBO:T; 2006-04-01~2007-06-01 |
13919-83GA0-000 |
US $98.62 |
||
|
3
|
3
13919-83G50-000
パイプセット,ウォータ
HITACHI; TURBO:T; 2006-04-01~2007-06-01 |
13919-83G50-000 |
— | ||
| replacement | |||||
|
3
|
3
13919-83G53-000 PIPE SET,WATERHITACHI; TURBO:T; 2006-04-01~2007-06-01 |
13919-83G53-000 |
US $98.62 |
||
|
4
|
4
09108-06119-000 BOLT,STUDTURBO:T; 2006-04-01~2007-06-01 |
09108-06119-000 |
US $23.60 |
||
|
5
|
5
13930-83G51-000
パイプ,ターボオイルインテーク
TURBO:T; 2006-04-01~2007-06-01 |
13930-83G51-000 |
— | ||
| replacement | |||||
|
5
|
5
13930-83G52-000 PIPE,TURBO OIL INTAKETURBO:T; 2006-04-01~2007-06-01 |
13930-83G52-000 |
US $29.62 |
||
|
6
|
6
13948-85560-000 BOLT,UNION 8X20TURBO:T; 2006-04-01~2007-06-01 |
13948-85560-000 |
US $4.80 |
||
|
7
|
7
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) TURBO:T; 2006-04-01~2007-06-01 |
09168-08016-000 |
from US $1.22 |
||
|
8
|
8
13948-58J50-000 BOLT,UNION W/FLTR 10X20-23TURBO:T; 2006-04-01~2007-06-01 |
13948-58J50-000 |
US $8.35 |
||
|
9
|
9
09161-10009-000 WASHER(10X15X1.5)Lock washer TURBO:T; 2006-04-01~2007-06-01 |
09161-10009-000 |
from US $1.06 |
||
|
10
|
10
13940-83G50-000 JOINT,OIL DRAINTURBO:T; 2006-04-01~2007-06-01 |
13940-83G50-000 |
US $15.31 |
||
|
11
|
11
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain TURBO:T; 2006-04-01~2007-06-01 |
13945-70G50-000 |
from US $4.68 |
||
|
12
|
12
01550-0612A-000 BOLTTURBO:T; 2006-04-01~2007-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
13946-83G50-000 HOSE,TURBO OIL DRAINTURBO:T; 2006-04-01~2007-06-01 |
13946-83G50-000 |
US $29.07 |
||
|
14
|
14
13947-83G50-000 PROTECTORTURBO:T; 2006-04-01~2007-06-01 |
13947-83G50-000 |
US $9.16 |
||
|
15
|
15
09401-15404-000 CLIPTURBO:T; 2006-04-01~2007-06-01 |
09401-15404-000 |
from US $1.06 |
||
|
16
|
16
13950-75H50-000 PIPE,TURBO INTAKE AIRTURBO:T; 2006-04-01~2007-06-01 |
13950-75H50-000 |
US $81.70 |
||
|
17
|
17
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe TURBO:T; 2006-04-01~2007-06-01 |
13955-56F00-000 |
from US $2.32 |
||
|
18
|
18
01550-0655A-000 BoltTURBO:T; 2006-04-01~2007-06-01 |
01550-0655A-000 |
US $13.20 |
||
|
19
|
19
13960-75H50-000 PIPE,TURBO OUTLET AIRTURBO:T; 2006-04-01~2007-06-01 |
13960-75H50-000 |
US $70.29 |
||
|
20
|
20
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe TURBO:T; 2006-04-01~2007-06-01 |
13965-56F00-000 |
from US $2.09 |
||
|
21
|
21
08316-1006A-000 NUTTURBO:T; 2006-04-01~2007-06-01 |
08316-1006A-000 |
from US $0.80 |
||
|
22
|
22
13966-75H50-000
ホース,インタクーラ,NO.1
TURBO:T; 2006-04-01~2007-06-01 |
13966-75H50-000 |
— | ||
|
23
|
23
13967-73H50-000 HOSE,INTER COOLER NO.2TURBO:T; 2006-04-01~2007-06-01 |
13967-73H50-000 |
US $18.22 |
||
|
24
|
24
09402-57511-000 CLAMPTURBO:T; 2006-04-01~2007-06-01 |
09402-57511-000 |
from US $6.24 |
||
|
25
|
25
13620-75H50-000
クーラ,インタ
TURBO:T; 2006-04-01~2007-06-01 |
13620-75H50-000 |
— | ||
|
26
|
26
01550-0625A-000 BOLTBolt TURBO:T; 2006-04-01~2007-06-01 |
01550-0625A-000 |
from US $0.96 |
||
|
27
|
27
13987-75H50-000
ガイド,インタクーラ
TURBO:T; 2006-04-01~2007-06-01 |
13987-75H50-000 |
— | ||
|
28
|
28
02142-0616A-000 SCREWTURBO:T; 2006-04-01~2007-06-01 |
02142-0616A-000 |
from US $0.76 |
||
|
29
|
29
18116-78G51-000 BRACKET,ABV&W/G VSVTURBO:T; 2006-04-01~2007-06-01 |
18116-78G51-000 |
US $6.15 |
||
|
30
|
30
01550-0816A-000 BOLTBolt, rear TURBO:T; 2006-04-01~2007-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
31
|
31
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge TURBO:T; 2006-04-01~2007-06-01 |
18117-52G00-000 |
from US $70.63 |
||
|
32
|
32
09359-40801-600 HOSEHose, w/g cont inlet L:600>180; TURBO:T; 2006-04-01~2007-06-01 |
09359-40801-600 |
US $16.04 |
||
|
33
|
33
09359-40801-600 HOSEHose, w/g cont inlet L:600>100; TURBO:T; 2006-04-01~2007-06-01 |
09359-40801-600 |
US $16.04 |
||
|
34
|
34
09401-08409-000 CLIPTURBO:T; 2006-04-01~2007-06-01 |
09401-08409-000 |
from US $0.73 |
||
|
35
|
35
09401-08411-000 CLIPTURBO:T; 2006-04-01~2007-06-01 |
09401-08411-000 |
from US $0.91 |
||
|
36
|
36
08316-1006A-000 NUTTURBO:T; 2006-04-01~2007-06-01 |
08316-1006A-000 |
from US $0.80 |
||
|
37
|
37
09408-00175-000 CLAMPTURBO:T; 2006-04-01~2006-09-01 |
09408-00175-000 |
from US $2.87 |
||
|
37
|
37
09408-00246-000 CLAMPTURBO:T; 2006-09-01~2007-06-01 |
09408-00246-000 |
US $17.70 |
||
