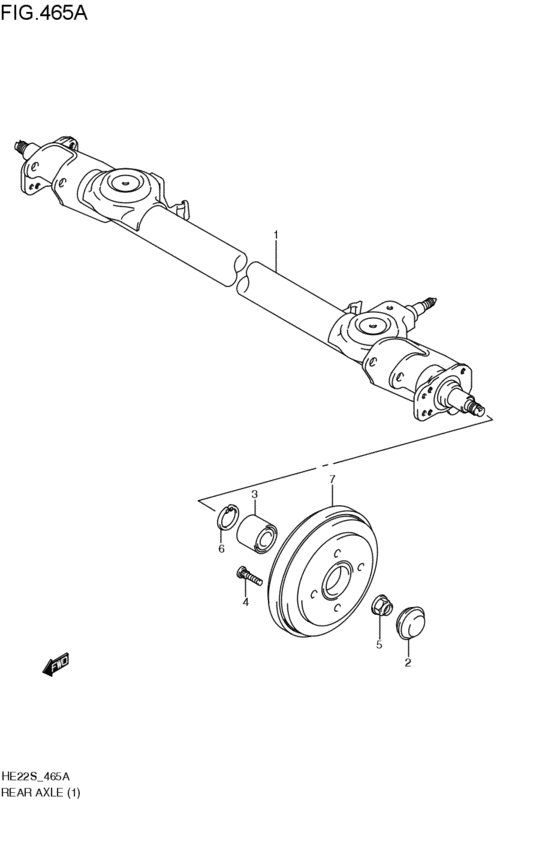

rear axle (2WD:G; 2008-09-01~) Diagram Suzuki LAPIN
- Year
- 2008 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- G
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-82K00-000
アクスル,リヤ
2WD:G; 2008-09-01~ |
46510-82K00-000 |
— | ||
| replacement | |||||
|
1
|
1
46510-64L00-000
New Genuine Part
2WD:G; 2008-09-01~ |
46510-64L00-000 |
— | ||
|
2
|
2
43241-79002-000 CAP,SPINDLE2WD:G; 2008-09-01~ |
43241-79002-000 |
US $5.92 |
||
|
3
|
3
46860-76G03-000
Bearing,rear wheel
2WD:G; 2008-09-01~ |
46860-76G03-000 |
— | ||
| replacement | |||||
|
3
|
3
46860-76G04-000 BEARING,RR WHEEL2WD:G; 2008-09-01~ |
46860-76G04-000 |
US $72.50 |
||
|
4
|
4
09119-12016-000 BOLT(12X33)2WD:G; 2008-09-01~ |
09119-12016-000 |
from US $2.21 |
||
|
5
|
5
09159-18017-000
Nut
2WD:G; 2008-09-01~ |
09159-18017-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-18026-000 NUT2WD:G; 2008-09-01~ |
09159-18026-000 |
from US $3.33 |
||
|
6
|
6
08331-4152A-000
Circlip, cntr, l
2WD:G; 2008-09-01~ |
08331-4152A-000 |
— | ||
| replacement | |||||
|
6
|
6
08331-41529-000 CIRCLIP2WD:G; 2008-09-01~ |
08331-41529-000 |
from US $6.07 |
||
|
7
|
7
43511-76G50-000 DRUM,BRAKE RR2WD:G; 2008-09-01~ |
43511-76G50-000 |
US $289.60 |
||
