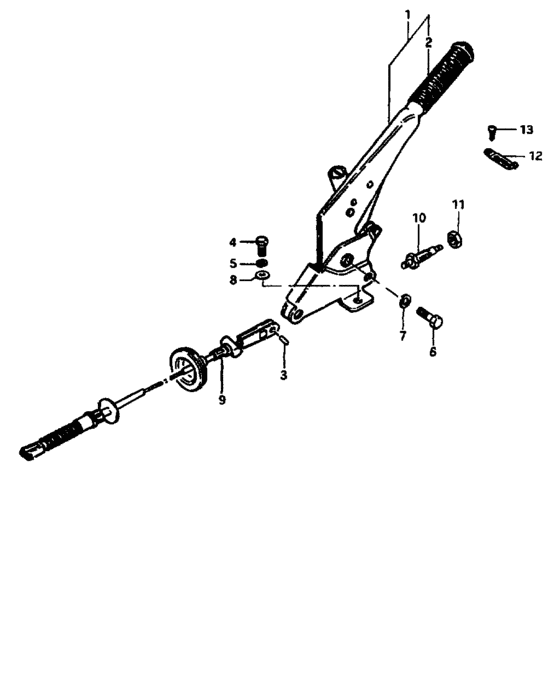

Parking brake (PARKING BRAKE) Diagram Suzuki LJ80
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54500-73641-000
Lever assy, center brake
FROM 54500-73640 |
54500-73641-000 |
— | ||
|
2
|
2
54112-72000-000 CLIP |
54112-72000-000 |
US $12.77 |
||
|
3
|
3
09202-06003-000
Pin, center cable
|
09202-06003-000 |
— | ||
|
4
|
4
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
5
|
5
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
7
|
7
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
8
|
8
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
9
|
9
54640-63210-000
CABLE,CENTER BRAKE
|
54640-63210-000 |
— | ||
|
10
|
10
37670-55110-000
SWITCH ASSY,DOOR
|
37670-55110-000 |
— | ||
|
11
|
11
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
12
|
12
09404-06412-000
Clamp
|
09404-06412-000 |
— | ||
| replacements | |||||
|
12
|
12
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
12
|
12
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
13
|
13
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
13
|
13
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
