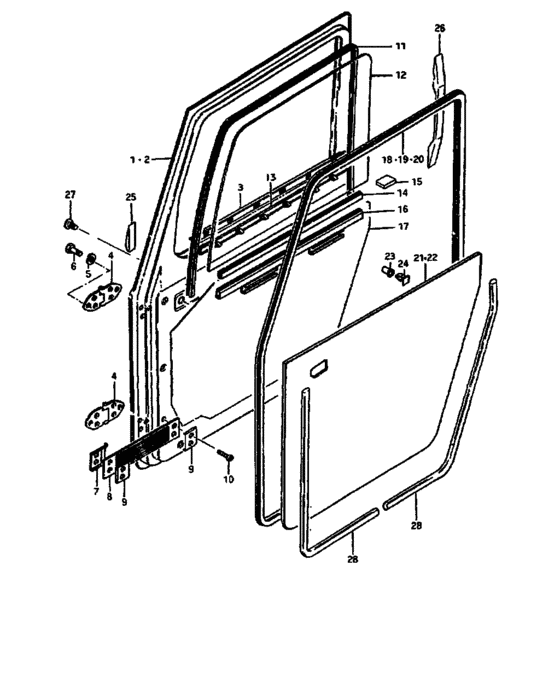

Front door (FRONT DOOR) Diagram Suzuki LJ80
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75101-63660-000
Panel, front door rh
|
75101-63660-000 |
— | ||
|
2
|
2
75102-63660-000
Panel, front door lh
|
75102-63660-000 |
— | ||
|
3
|
3
79411-63101-000
WEATHERSTRIP,SCALP
|
79411-63101-000 |
— | ||
|
4
|
4
76110-63101-000
Hinge, front door
|
76110-63101-000 |
— | ||
| replacement | |||||
|
4
|
4
76110-63110-000
HINGE,FR DOOR
|
76110-63110-000 |
— | ||
|
5
|
5
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
7
|
7
76182-63100-000
Prutector, trim
|
76182-63100-000 |
— | ||
| replacement | |||||
|
7
|
7
76182-63101-000 PROTECTOR,OPENING TRIM |
76182-63101-000 |
US $13.60 |
||
|
8
|
8
76181-58002-000
BAND,DR OPEN STOPPER
|
76181-58002-000 |
— | ||
|
9
|
9
76182-58001-000
Garnish
|
76182-58001-000 |
— | ||
| replacement | |||||
|
9
|
9
76182-58002-000 GARNISH,DR OPEN STOPPER |
76182-58002-000 |
US $1.82 |
||
|
10
|
10
02132-05208-000
Screw
|
02132-05208-000 |
— | ||
| replacement | |||||
|
10
|
10
02122-0520A-000 SCREW |
02122-0520A-000 |
from US $0.80 |
||
|
11
|
11
79141-63102-000
Channel, glass run
|
79141-63102-000 |
— | ||
| replacement | |||||
|
11
|
11
79141-631V0-000
RUN,FR DOOR GLASS
|
79141-631V0-000 |
— | ||
|
12
|
12
79111-63113-000
Glass, door
|
79111-63113-000 |
— | ||
| replacement | |||||
|
12
|
12
79111-631V1-000
Glass,door
|
79111-631V1-000 |
— | ||
|
13
|
13
79450-63111-000
SCRAPE,DOOR INSIDE
|
79450-63111-000 |
— | ||
|
14
|
14
79154-70000-000
Rubber, bottom channel
L:455 |
79154-70000-000 |
— | ||
| replacement | |||||
|
14
|
14
78812-78400-000 RUBBER,CHANNELL:455 |
78812-78400-000 |
from US $2.12 |
||
|
14
|
14
78811-69000-000
Rubber, bottom channel
L:180 |
78811-69000-000 |
— | ||
| replacement | |||||
|
14
|
14
78812-78400-000 RUBBER,CHANNELL:180 |
78812-78400-000 |
from US $2.12 |
||
|
15
|
15
78821-67000-000 PAD |
78821-67000-000 |
from US $2.17 |
||
|
16
|
16
78750-63122-000
Channel, bottom
USED TO REF.NO.14-1,TO 78750-63123, USED WITH 78811-690 |
78750-63122-000 |
— | ||
| replacements | |||||
|
16
|
16
78750-63123-000
CHANNEL,BOTTOM
USED TO REF.NO.14-1,TO 78750-63123, USED WITH 78811-690 |
78750-63123-000 |
— | ||
|
16
|
16
78812-78400-000 RUBBER,CHANNELUSED TO REF.NO.14-1,TO 78750-63123, USED WITH 78811-690 |
78812-78400-000 |
from US $2.12 |
||
|
16
|
16
78750-63123-000
CHANNEL,BOTTOM
USED TO REF.NO.14-2 |
78750-63123-000 |
— | ||
|
17
|
17
79811-63102-000
Film, water proof
|
79811-63102-000 |
— | ||
|
18
|
18
79211-63110-000
Weatherstrip, front door
|
79211-63110-000 |
— | ||
| replacement | |||||
|
18
|
18
79241-63X00-000
WEATHERSTRIP,FR DR
|
79241-63X00-000 |
— | ||
|
19
|
19
79841-63100-000
WEATHERSTRIP,OPNG,R
|
79841-63100-000 |
— | ||
|
20
|
20
79842-63100-000
WEATHERSTRIP,OPNG,L
|
79842-63100-000 |
— | ||
|
21
|
21
79210-73100-877
Trim, front door rh
|
79210-73100-877 |
— | ||
|
22
|
22
79220-73100-877
Trim, front door lh
|
79220-73100-877 |
— | ||
|
23
|
23
09251-07002-000 CAP |
09251-07002-000 |
US $1.60 |
||
|
24
|
24
09409-08303-000 CLIP |
09409-08303-000 |
from US $0.97 |
||
|
25
|
25
79843-63100-000
Spacer, door front
|
79843-63100-000 |
— | ||
|
26
|
26
79844-63100-000
Spacer, door rear
|
79844-63100-000 |
— | ||
|
27
|
27
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
27
|
27
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
28
|
28
79211-63005-000
WEATHERSTRIP,FR DR
|
79211-63005-000 |
— | ||
