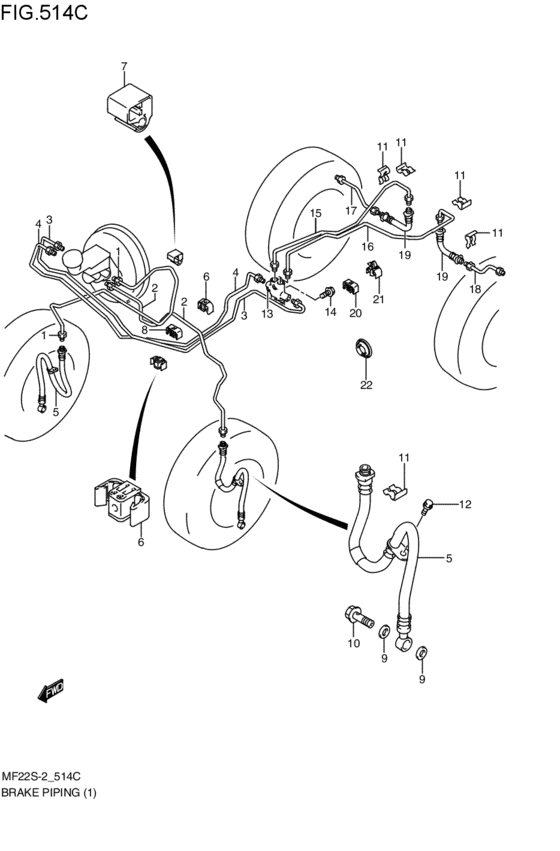

brakes piping (ABS-N; 2007-04-01~) Diagram Suzuki MR WAGON
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- grade
- G
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-65K50-000
パイプ,マスタプライマリツーブレーキホース,ライト
ABS-N; 2007-04-01~ |
51410-65K50-000 |
— | ||
|
2
|
2
51420-65K50-000
パイプ,マスタセカンダリツーブレーキホース,レフト
ABS-N; 2007-04-01~ |
51420-65K50-000 |
— | ||
|
3
|
3
51460-65K50-000
パイプ,マスタプライマリツーバルブ,レフト
ABS-N; 2007-04-01~ |
51460-65K50-000 |
— | ||
|
4
|
4
51450-65K50-000
パイプ,マスタセカンダリツーバルブ,ライト
ABS-N; 2007-04-01~ |
51450-65K50-000 |
— | ||
|
5
|
5
51550-72J00-000
ホース,フロントディスクフレキシブル
ABS-N; 2007-04-01~ |
51550-72J00-000 |
— | ||
| replacement | |||||
|
5
|
5
51550-72J02-000
HOSE,FR DISC FLEXIBLE
ABS-N; 2007-04-01~ |
51550-72J02-000 |
— | ||
|
6
|
6
51751-76G00-000 CLAMP,BK PIPE DASHABS-N; 2007-04-01~ |
51751-76G00-000 |
US $1.60 |
||
|
7
|
7
51752-70B00-000 CLAMP,BK PIPEABS-N; 2007-04-01~ |
51752-70B00-000 |
US $1.60 |
||
|
8
|
8
51751-75F00-000 CLAMP,BK PIPE MAIN FL DOUBLEABS-N; 2007-04-01~ |
51751-75F00-000 |
US $2.28 |
||
|
9
|
9
09161-10009-000 WASHER(10X15X1.5)Lock washer ABS-N; 2007-04-01~ |
09161-10009-000 |
from US $1.06 |
||
|
10
|
10
09360-10026-000 Union boltABS-N; 2007-04-01~ |
09360-10026-000 |
from US $1.85 |
||
|
11
|
11
09383-13003-000 E-RINGABS-N; 2007-04-01~ |
09383-13003-000 |
from US $1.60 |
||
|
12
|
12
01551-0816C-000 BoltABS-N; 2007-04-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
13
|
13
51910-76G00-000 VALVE ASSY,PROPORTIONINGABS-N; 2007-04-01~ |
51910-76G00-000 |
US $109.30 |
||
|
14
|
14
01550-0640A-000 BoltBolt (l:40) ABS-N; 2007-04-01~ |
01550-0640A-000 |
from US $3.83 |
||
|
15
|
15
51470-73H10-000 パイプ,バルブツーリヤブレーキホース,ライトABS-N; 2007-04-01~ |
51470-73H10-000 |
US $10.82 |
||
|
16
|
16
51480-73H10-000 パイプ,バルブツーリヤブレーキホース,レフトABS-N; 2007-04-01~ |
51480-73H10-000 |
US $11.92 |
||
|
17
|
17
51510-73H10-000 PIPE,RR BK HOSE TO WHL CYL RABS-N; 2007-04-01~ |
51510-73H10-000 |
US $9.16 |
||
|
18
|
18
51520-73H10-000 PIPE,RR BK HOSE TO WHL CYL LABS-N; 2007-04-01~ |
51520-73H10-000 |
US $9.16 |
||
|
19
|
19
51570-73H50-000 HOSE,RR BRAKE FLEXIBLEABS-N; 2007-04-01~ |
51570-73H50-000 |
US $20.61 |
||
|
20
|
20
51751-75F00-000 CLAMP,BK PIPE MAIN FL DOUBLEABS-N; 2007-04-01~ |
51751-75F00-000 |
US $2.28 |
||
|
21
|
21
51761-70F00-000 CLAMP,BK PIPE SIDE MEMBERABS-N; 2007-04-01~ |
51761-70F00-000 |
US $1.52 |
||
|
22
|
22
09250-16008-000 PLUG(OD:24)ABS-N; 2007-04-01~ |
09250-16008-000 |
US $1.44 |
||
