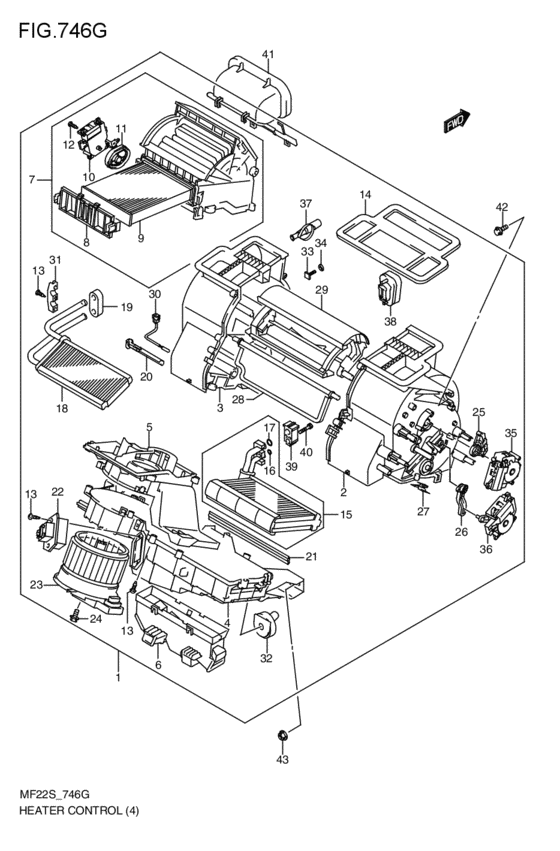

ヒ - タユニット (ゴクカンレイチ シヨウ; G:COLD-H; 2005-12-01~2007-04-01) Diagram Suzuki MR WAGON
- Year
- 2005 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- grade
- G
- abs
- ABS
- 寒冷地
- COLD-H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-58J94-000
ヒータユニット
G:COLD-H; 2005-12-01~2007-04-01 |
74100-58J94-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-58J96-000
New Genuine Part
G:COLD-H; 2005-12-01~2007-04-01 |
74100-58J96-000 |
— | ||
|
2
|
2
74111-58J80-000
ケース,ヒータ,ライト
G:COLD-H; 2005-12-01~2007-04-01 |
74111-58J80-000 |
— | ||
|
3
|
3
74112-58J80-000
ケース,ヒータ,レフト
G:COLD-H; 2005-12-01~2007-04-01 |
74112-58J80-000 |
— | ||
|
4
|
4
74113-58J00-000
ケース,ブロワ,ロア
G:COLD-H; 2005-12-01~2007-04-01 |
74113-58J00-000 |
— | ||
| replacement | |||||
|
4
|
4
74113-58J01-000
ケース,ブロワロア
G:COLD-H; 2005-12-01~2007-04-01 |
74113-58J01-000 |
— | ||
|
5
|
5
74114-58J00-000
ケース,ブロワ,アッパ
G:COLD-H; 2005-12-01~2007-04-01 |
74114-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
74114-58J01-000
ケース,ブロワアッパ
G:COLD-H; 2005-12-01~2007-04-01 |
74114-58J01-000 |
— | ||
|
6
|
6
74115-66K90-000
ダクト,フット
G:COLD-H; 2005-12-01~2007-04-01 |
74115-66K90-000 |
— | ||
|
7
|
7
74200-58J80-000
ケース,ブロワ
G:COLD-H; 2005-12-01~2007-04-01 |
74200-58J80-000 |
— | ||
| replacement | |||||
|
7
|
7
74200-58J81-000
New Genuine Part
G:COLD-H; 2005-12-01~2007-04-01 |
74200-58J81-000 |
— | ||
|
8
|
8
95423-58J00-000
ホルダ,フィルタ
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95423-58J00-000 |
— | ||
| replacement | |||||
|
8
|
8
95423-66K01-000
New Genuine Part
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95423-66K01-000 |
— | ||
|
9
|
9
95860-58J00-000
Filter
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95860-58J00-000 |
— | ||
| replacement | |||||
|
9
|
9
95860-58J01-000 FILTERDENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95860-58J01-000 |
US $24.32 |
||
|
10
|
10
95652-58J00-000
アクチュエータ,フレッシュエア
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95652-58J00-000 |
— | ||
|
11
|
11
74282-58J00-000
プレート,アクチュエータ
G:COLD-H; 2005-12-01~2007-04-01 |
74282-58J00-000 |
— | ||
|
12
|
12
03111-0416A-000 SCREWG:COLD-H; 2005-12-01~2007-04-01 |
03111-0416A-000 |
US $0.80 |
||
|
13
|
13
03111-0416A-000 SCREWG:COLD-H; 2005-12-01~2007-04-01 |
03111-0416A-000 |
US $0.80 |
||
|
14
|
14
74116-58J00-000
パッキング,フェイス/デフロスタ
G:COLD-H; 2005-12-01~2007-04-01 |
74116-58J00-000 |
— | ||
|
15
|
15
95410-58J90-000
エバポレータ
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95410-58J90-000 |
— | ||
|
16
|
16
95895-50G00-000 O-RING,D:2.4 ID:10.8G:COLD-H; 2005-12-01~2007-04-01 |
95895-50G00-000 |
US $1.28 |
||
|
17
|
17
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) G:COLD-H; 2005-12-01~2007-04-01 |
95896-50G00-000 |
US $1.28 |
||
|
18
|
18
74120-58J00-000
コア,ヒータ
G:COLD-H; 2005-12-01~2007-04-01 |
74120-58J00-000 |
— | ||
|
19
|
19
74117-58J00-000
パッキング,ヒータ
G:COLD-H; 2005-12-01~2007-04-01 |
74117-58J00-000 |
— | ||
|
20
|
20
95452-58J00-000
クランプ,サーミスタ
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95452-58J00-000 |
— | ||
|
21
|
21
95461-58J00-000
PACKING,EVAP LWR
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95461-58J00-000 |
— | ||
|
22
|
22
95626-58J80-000
パワートランジスタ
G:COLD-H; 2005-12-01~2007-04-01 |
95626-58J80-000 |
— | ||
|
23
|
23
74150-58J00-000
モータアッシ,ブロワ
G:COLD-H; 2005-12-01~2007-04-01 |
74150-58J00-000 |
— | ||
|
24
|
24
74135-82000-000 SCREW,MOTORG:COLD-H; 2005-12-01~2007-04-01 |
74135-82000-000 |
US $1.73 |
||
|
25
|
25
74187-66K80-000
レバー,モード
G:COLD-H; 2005-12-01~2007-04-01 |
74187-66K80-000 |
— | ||
|
26
|
26
74185-58J80-000
レバー,エアミクスチャ
G:COLD-H; 2005-12-01~2007-04-01 |
74185-58J80-000 |
— | ||
|
27
|
27
74151-50F00-000 CABLEG:COLD-H; 2005-12-01~2007-04-01 |
74151-50F00-000 |
US $3.09 |
||
|
28
|
28
74171-58J00-000
ドア,エアミクスチャ
G:COLD-H; 2005-12-01~2007-04-01 |
74171-58J00-000 |
— | ||
|
29
|
29
74172-58J03-000
ドア,モード
G:COLD-H; 2005-12-01~2007-04-01 |
74172-58J03-000 |
— | ||
|
30
|
30
95541-54G01-000 THERMISTORG:COLD-H; 2005-12-01~2007-04-01 |
95541-54G01-000 |
US $33.86 |
||
|
31
|
31
74131-58J00-000
ブラケット,ヒータパイプ
G:COLD-H; 2005-12-01~2007-04-01 |
74131-58J00-000 |
— | ||
|
32
|
32
95481-58J00-000
ホース,ドレーン
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95481-58J00-000 |
— | ||
|
33
|
33
74115-65D00-000 BoltG:COLD-H; 2005-12-01~2007-04-01 |
74115-65D00-000 |
US $3.61 |
||
|
34
|
34
74119-78F00-000 WASHER,RBRG:COLD-H; 2005-12-01~2007-04-01 |
74119-78F00-000 |
US $3.53 |
||
|
35
|
35
95653-58J80-000
アクチュエータ,モード
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95653-58J80-000 |
— | ||
|
36
|
36
95651-58J81-000
アクチュエータ,エアミクスチャ
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95651-58J81-000 |
— | ||
|
37
|
37
95656-58J80-000 ASPIRATORDENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95656-58J80-000 |
US $9.79 |
||
|
38
|
38
95465-58J00-000 COVERDENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95465-58J00-000 |
US $8.87 |
||
|
39
|
39
95439-58J90-000
チューブ,コネクタ
DENSO; G:COLD-H; 2005-12-01~2007-04-01 |
95439-58J90-000 |
— | ||
|
40
|
40
74134-58J00-000 BOLTG:COLD-H; 2005-12-01~2007-04-01 |
74134-58J00-000 |
US $3.75 |
||
|
41
|
41
74213-58J01-000
ジョイント,エア,インレット
G:COLD-H; 2005-12-01~2007-04-01 |
74213-58J01-000 |
— | ||
|
42
|
42
09113-06006-000 BOLT(6X20)G:COLD-H; 2005-12-01~2007-04-01 |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
42
|
42
09113-06014-000 BOLT(6X20)G:COLD-H; 2005-12-01~2007-04-01 |
09113-06014-000 |
US $14.40 |
||
|
43
|
43
09159-06081-000 NUTG:COLD-H; 2005-12-01~2007-04-01 |
09159-06081-000 |
US $12.50 |
||
