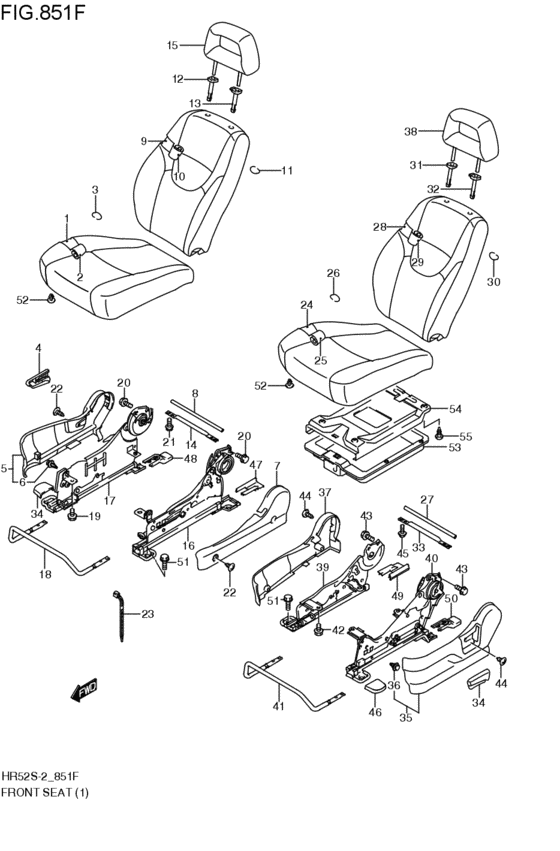

front seat (D; 2003-11-01~) Diagram Suzuki OTHER MODELS
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- body
- D
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-70HB0-000
クッションサブアッシ,フロント
D:4WD; 2003-11-01~ |
85105-70HB0-000 |
— | ||
|
2
|
2
85180-70HB0-JD7
トリム,フロントクッション(ブラック/グレー)
ブラック/グレー; D:4WD; 2003-11-01~ |
85180-70HB0-JD7 |
— | ||
|
2
|
2
85180-70HB0-JD8
トリム,フロントクッション(ブラック/レッド)
ブラック/レッド; D:4WD; 2003-11-01~ |
85180-70HB0-JD8 |
— | ||
|
3
|
3
09387-19001-000 RINGD; 2003-11-01~ |
09387-19001-000 |
US $1.76 |
||
|
4
|
4
85211-75H00-P4Z KNOB,RECL,Rグレ-; D; 2003-11-01~ |
85211-75H00-P4Z |
US $4.23 |
||
|
5
|
5
85220-74G10-P4Z
Cover,recl outside,r
グレ-; D; 2003-11-01~ |
85220-74G10-P4Z |
— | ||
| replacement | |||||
|
5
|
5
85220-74G11-P4Z COVER,RECL OUTSIDE,Rグレ-; D; 2003-11-01~ |
85220-74G11-P4Z |
US $42.69 |
||
|
6
|
6
85225-74G00-P4Z CLIP,グレ-; D; 2003-11-01~ |
85225-74G00-P4Z |
US $2.36 |
||
|
7
|
7
85241-80G00-P4Z COVER,RECL INSIDE,Rグレ-; D; 2003-11-01~ |
85241-80G00-P4Z |
US $39.01 |
||
|
8
|
8
85250-80G00-000
ROD,FR ADJUSTER
D; 2003-11-01~ |
85250-80G00-000 |
— | ||
|
9
|
9
85305-70H10-000
Back s/assy,fr
D; 2003-11-01~ |
85305-70H10-000 |
— | ||
|
10
|
10
85380-70HA0-JD7
トリム,フロントバック(ブラック/グレー)
ブラック/グレー; D; 2003-11-01~ |
85380-70HA0-JD7 |
— | ||
|
10
|
10
85380-70HA0-JD8
トリム,フロントバック(ブラック/レッド)
ブラック/レッド; D; 2003-11-01~ |
85380-70HA0-JD8 |
— | ||
|
11
|
11
09387-19001-000 RINGD; 2003-11-01~ |
09387-19001-000 |
US $1.76 |
||
|
12
|
12
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; D; 2003-11-01~ |
85341-81A00-P4Z |
US $6.04 |
||
|
13
|
13
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; D; 2003-11-01~ |
85840-81A10-P4Z |
US $11.63 |
||
|
14
|
14
85771-78F00-000
MEMBER,FR SEAT
D; 2003-11-01~ |
85771-78F00-000 |
— | ||
|
15
|
15
86401-73H00-R2V
ヘッドレストレイントアッシ(グレー)
グレ-; D; 2003-11-01~ |
86401-73H00-R2V |
— | ||
| replacement | |||||
|
15
|
15
86401-73H02-R2V
New Genuine Part
グレ-; D; 2003-11-01~ |
86401-73H02-R2V |
— | ||
|
15
|
15
86401-73H00-R2W
ヘッドレストレイントアッシ(レッド)
レッド; D; 2003-11-01~ |
86401-73H00-R2W |
— | ||
| replacement | |||||
|
15
|
15
86401-73H01-R2W
ヘッドレストレイントアッシ(グレー)
レッド; D; 2003-11-01~ |
86401-73H01-R2W |
— | ||
|
16
|
16
86601-70H50-000 ADJUSTER ASSY,FR INSIDE,RD; 2003-11-01~ |
86601-70H50-000 |
US $288.88 |
||
|
17
|
17
86603-70H50-000
ADJUSTER ASSY,FR OUTSIDE,R
D; 2003-11-01~ |
86603-70H50-000 |
— | ||
|
18
|
18
86691-80G00-000
HANDLE,FR ADJ,R
D; 2003-11-01~ |
86691-80G00-000 |
— | ||
|
19
|
19
01550-08123-000
Bolt
D; 2003-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0812B-000 BoltPlug, drain D; 2003-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
19
|
19
01550-0812A-000 BOLTD; 2003-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
20
|
20
01550-10203-000
Bolt
D; 2003-11-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1020A-000 BOLTBolt, bal sprocket D; 2003-11-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
21
|
21
01550-08123-000
Bolt
D; 2003-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0812B-000 BoltPlug, drain D; 2003-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
21
|
21
01550-0812A-000 BOLTD; 2003-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
22
|
22
03242-05123-000
Screw, inner cover
D; 2003-11-01~ |
03242-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0512A-000 SCREWD; 2003-11-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
23
|
23
09407-11402-000 CLAMP(L:90)D:4WD; 2003-11-01~ |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
23
|
23
09407-17402-000 CLAMPD:4WD; 2003-11-01~ |
09407-17402-000 |
from US $1.98 |
||
|
24
|
24
85105-70H10-000
CUSHION S/ASSY,FR
D; 2003-11-01~ |
85105-70H10-000 |
— | ||
|
25
|
25
85180-70HA0-JD7
トリム,フロントクッション(ブラック/グレー)
ブラック/グレー; D; 2003-11-01~ |
85180-70HA0-JD7 |
— | ||
|
25
|
25
85180-70HA0-JD8
トリム,フロントクッション(ブラック/レッド)
ブラック/レッド; D; 2003-11-01~ |
85180-70HA0-JD8 |
— | ||
|
26
|
26
09387-19001-000 RINGD; 2003-11-01~ |
09387-19001-000 |
US $1.76 |
||
|
27
|
27
85250-80G00-000
ROD,FR ADJUSTER
D; 2003-11-01~ |
85250-80G00-000 |
— | ||
|
28
|
28
85305-70H10-000
Back s/assy,fr
D; 2003-11-01~ |
85305-70H10-000 |
— | ||
|
29
|
29
85380-70HB0-JD7
トリム,フロントバック(ブラック/グレー)
ブラック/グレー; D; 2003-11-01~ |
85380-70HB0-JD7 |
— | ||
|
29
|
29
85380-70HB0-JD8
トリム,フロントバック(ブラック/レッド)
ブラック/レッド; D; 2003-11-01~ |
85380-70HB0-JD8 |
— | ||
|
30
|
30
09387-19001-000 RINGD; 2003-11-01~ |
09387-19001-000 |
US $1.76 |
||
|
31
|
31
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; D; 2003-11-01~ |
85341-81A00-P4Z |
US $6.04 |
||
|
32
|
32
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; D; 2003-11-01~ |
85840-81A10-P4Z |
US $11.63 |
||
|
33
|
33
85771-78F10-000 MEMBER,FR SEATD; 2003-11-01~ |
85771-78F10-000 |
US $16.23 |
||
|
34
|
34
85711-75H00-P4Z KNOB,RECL,Lグレ-; D; 2003-11-01~ |
85711-75H00-P4Z |
US $4.23 |
||
|
35
|
35
85720-74G10-P4Z
Cover,recl outside,l
グレ-; D; 2003-11-01~ |
85720-74G10-P4Z |
— | ||
| replacement | |||||
|
35
|
35
85720-74G11-P4Z COVER,RECL OUTSIDE,Lグレ-; D; 2003-11-01~ |
85720-74G11-P4Z |
US $42.69 |
||
|
36
|
36
85225-74G00-P4Z CLIP,グレ-; D; 2003-11-01~ |
85225-74G00-P4Z |
US $2.36 |
||
|
37
|
37
85741-80G00-P4Z COVER,RECL INSIDE,Lグレ-; D; 2003-11-01~ |
85741-80G00-P4Z |
US $39.01 |
||
|
38
|
38
86401-73H00-R2V
ヘッドレストレイントアッシ(グレー)
グレ-; D; 2003-11-01~ |
86401-73H00-R2V |
— | ||
| replacement | |||||
|
38
|
38
86401-73H02-R2V
New Genuine Part
グレ-; D; 2003-11-01~ |
86401-73H02-R2V |
— | ||
|
38
|
38
86401-73H00-R2W
ヘッドレストレイントアッシ(レッド)
レッド; D; 2003-11-01~ |
86401-73H00-R2W |
— | ||
| replacement | |||||
|
38
|
38
86401-73H01-R2W
ヘッドレストレイントアッシ(グレー)
レッド; D; 2003-11-01~ |
86401-73H01-R2W |
— | ||
|
39
|
39
86602-80G00-000 ADJUSTER ASSY,FR INSIDE,LD; 2003-11-01~ |
86602-80G00-000 |
US $233.68 |
||
|
40
|
40
86604-80G00-000
ADJUSTER ASSY,FR OUTSIDE,L
D; 2003-11-01~ |
86604-80G00-000 |
— | ||
|
41
|
41
86891-80G00-000
HANDLE,FR ADJUSTER,L
D; 2003-11-01~ |
86891-80G00-000 |
— | ||
|
42
|
42
01550-08123-000
Bolt
D; 2003-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0812B-000 BoltPlug, drain D; 2003-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
42
|
42
01550-0812A-000 BOLTD; 2003-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
43
|
43
01550-10203-000
Bolt
D; 2003-11-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
43
|
43
01550-1020A-000 BOLTBolt, bal sprocket D; 2003-11-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
44
|
44
03242-05123-000
Screw, inner cover
D; 2003-11-01~ |
03242-05123-000 |
— | ||
| replacement | |||||
|
44
|
44
03241-0512A-000 SCREWD; 2003-11-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
45
|
45
01550-08123-000
Bolt
D; 2003-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
45
|
45
01550-0812B-000 BoltPlug, drain D; 2003-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
45
|
45
01550-0812A-000 BOLTD; 2003-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
46
|
46
85492-76G00-P4Z COVER,FR OUTSIDEグレ-; D; 2003-11-01~ |
85492-76G00-P4Z |
US $4.75 |
||
|
47
|
47
85495-76G00-P4Z COVER,RR INSIDE,Rグレ-; D; 2003-11-01~ |
85495-76G00-P4Z |
US $7.76 |
||
|
48
|
48
85496-76G00-P4Z COVER,RR OUTSIDEグレ-; D; 2003-11-01~ |
85496-76G00-P4Z |
US $5.78 |
||
|
49
|
49
85995-76G00-P4Z COVER,RR INSIDE,Lグレ-; D; 2003-11-01~ |
85995-76G00-P4Z |
US $7.76 |
||
|
50
|
50
85496-76G00-P4Z COVER,RR OUTSIDEグレ-; D; 2003-11-01~ |
85496-76G00-P4Z |
US $5.78 |
||
|
51
|
51
01551-10253-000
Bolt
D; 2003-11-01~ |
01551-10253-000 |
— | ||
| replacement | |||||
|
51
|
51
01551-1025A-000 BoltD; 2003-11-01~ |
01551-1025A-000 |
US $1.12 |
||
|
52
|
52
85189-70H00-000
CLIP,FR CUSHION TRIM
D; 2003-11-01~ |
85189-70H00-000 |
— | ||
|
53
|
53
85150-80G10-000 TRAY ASSY,FR UNDERD; 2003-11-01~ |
85150-80G10-000 |
US $79.20 |
||
|
54
|
54
86521-65DA0-000 BRACKET,UNDER TRAYD; 2003-11-01~ |
86521-65DA0-000 |
US $91.20 |
||
|
55
|
55
03242-05123-000
Screw, inner cover
D; 2003-11-01~ |
03242-05123-000 |
— | ||
| replacement | |||||
|
55
|
55
03241-0512A-000 SCREWD; 2003-11-01~ |
03241-0512A-000 |
from US $0.68 |
||
