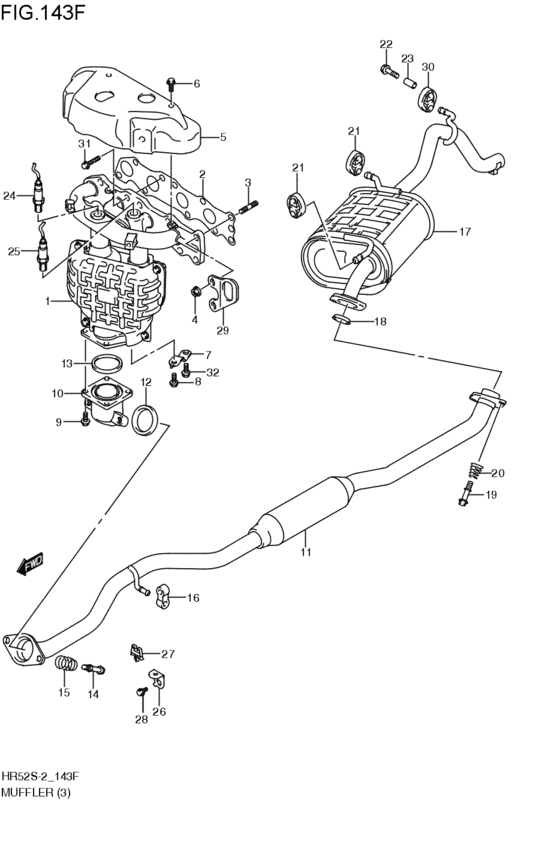

muffler (M13A:4WD; 2003-11-01~) Diagram Suzuki OTHER MODELS
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- body
- D
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-80G21-000 MANIFOLD,EXHM13A:4WD; 2003-11-01~ |
14110-80G21-000 |
US $1,389.76 |
||
|
2
|
2
14140-69G01-000
ガスケット,エキゾーストマニホールド
M13A:4WD; 2003-11-01~ |
14140-69G01-000 |
— | ||
| replacement | |||||
|
2
|
2
14140-69G02-000 GASKET,EXH MANFM13A:4WD; 2003-11-01~ |
14140-69G02-000 |
from US $13.10 |
||
|
3
|
3
14118-63J00-000 STUD BOLT,EXH MANFM13A:4WD; 2003-11-01~ |
14118-63J00-000 |
from US $1.22 |
||
|
4
|
4
08316-10103-000
Nut
M13A:4WD; 2003-11-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1010B-000 NUTM13A:4WD; 2003-11-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
14120-80G02-000 COVER,EXH MANFM13A:4WD; 2003-11-01~ |
14120-80G02-000 |
US $36.25 |
||
|
6
|
6
09103-06168-000 BOLT(6X10)M13A:4WD; 2003-11-01~ |
09103-06168-000 |
from US $1.01 |
||
|
7
|
7
14271-69G00-000 STIFFENER,EXH MANFM13A:4WD; 2003-11-01~ |
14271-69G00-000 |
US $10.89 |
||
|
8
|
8
09103-10324-000 BOLT(10X20)M13A:4WD; 2003-11-01~ |
09103-10324-000 |
from US $2.24 |
||
|
9
|
9
09103-10324-000 BOLT(10X20)M13A:4WD; 2003-11-01~ |
09103-10324-000 |
from US $2.24 |
||
|
10
|
10
14137-70H10-000
パイプ,キャタリスト,アウトレット
M13A:4WD; 2003-11-01~ |
14137-70H10-000 |
— | ||
|
11
|
11
14250-70H00-000 PIPE,EXH NO.2M13A:4WD; 2003-11-01~ |
14250-70H00-000 |
US $432.96 |
||
|
12
|
12
14183-65D00-000 RING,SEAL EXH PIPEM13A:4WD; 2003-11-01~ |
14183-65D00-000 |
US $20.80 |
||
|
13
|
13
14184-65D00-000 GASKET,EXH PIPEM13A:4WD; 2003-11-01~ |
14184-65D00-000 |
from US $8.93 |
||
|
14
|
14
09119-10073-000 BOLT(10X65)M13A:4WD; 2003-11-01~ |
09119-10073-000 |
from US $5.76 |
||
|
15
|
15
14492-67D00-000 SPRING,EXH PIPEM13A:4WD; 2003-11-01~ |
14492-67D00-000 |
from US $5.69 |
||
|
16
|
16
14281-71C01-000 MOUNTING,MUFM13A:4WD; 2003-11-01~ |
14281-71C01-000 |
from US $7.49 |
||
|
17
|
17
14300-70H10-000 マフラM13A:4WD; 2003-11-01~ |
14300-70H10-000 |
US $323.84 |
||
|
18
|
18
14183-76A00-000 RING,SEAL EXH PIPEM13A:4WD; 2003-11-01~ |
14183-76A00-000 |
from US $11.57 |
||
|
19
|
19
09119-10073-000 BOLT(10X65)M13A:4WD; 2003-11-01~ |
09119-10073-000 |
from US $5.76 |
||
|
20
|
20
14492-67D00-000 SPRING,EXH PIPEM13A:4WD; 2003-11-01~ |
14492-67D00-000 |
from US $5.69 |
||
|
21
|
21
14281-75F00-000
Mounting
M13A:4WD; 2003-11-01~ |
14281-75F00-000 |
— | ||
| replacement | |||||
|
21
|
21
14281-75F01-000 MOUNTING,MUFM13A:4WD; 2003-11-01~ |
14281-75F01-000 |
from US $4.88 |
||
|
22
|
22
01551-08353-000
ボルト
M13A:4WD; 2003-11-01~ |
01551-08353-000 |
— | ||
| replacement | |||||
|
22
|
22
01551-0835A-000 BoltM13A:4WD; 2003-11-01~ |
01551-0835A-000 |
US $15.50 |
||
|
23
|
23
09180-08057-000
Spacer
M13A:4WD; 2003-11-01~ |
09180-08057-000 |
— | ||
| replacement | |||||
|
23
|
23
09180-08227-000 SPACER(8.2X12.5X23.5)M13A:4WD; 2003-11-01~ |
09180-08227-000 |
from US $1.92 |
||
|
24
|
24
18213-80G01-000
センサアッシ,オキシジェン
M13A:4WD; 2003-11-01~ |
18213-80G01-000 |
— | ||
| replacement | |||||
|
24
|
24
18213-80G02-000 SENSOR,OXYGENM13A:4WD; 2003-11-01~ |
18213-80G02-000 |
US $285.20 |
||
|
25
|
25
18213-80G11-000
センサアッシ,オキシジェン
M13A:4WD; 2003-11-01~ |
18213-80G11-000 |
— | ||
| replacement | |||||
|
25
|
25
18213-80G12-000 SENSOR,OXYGENM13A:4WD; 2003-11-01~ |
18213-80G12-000 |
US $285.20 |
||
|
26
|
26
18214-80G00-000 BRACKET,OXYGEN SENSORM13A:4WD; 2003-11-01~ |
18214-80G00-000 |
US $2.36 |
||
|
27
|
27
09403-11313-000 CLAMPM13A:4WD; 2003-11-01~ |
09403-11313-000 |
from US $3.58 |
||
|
28
|
28
01550-08123-000
Bolt
M13A:4WD; 2003-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0812B-000 BoltPlug, drain M13A:4WD; 2003-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
28
|
28
01550-0812A-000 BOLTM13A:4WD; 2003-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
29
|
29
11851-80GA0-000 HOOK,ENGINEM13A:4WD; 2003-11-01~ |
11851-80GA0-000 |
US $4.23 |
||
|
30
|
30
14281-80G00-000 MOUNTING,MUFM13A:4WD; 2003-11-01~ |
14281-80G00-000 |
US $12.64 |
||
|
31
|
31
09103-10209-000 BOLT(10X23)M13A:4WD; 2004-10-01~ |
09103-10209-000 |
US $2.72 |
||
|
31
|
31
01550-10253-000
Bolt
M13A:4WD; 2003-11-01~2004-10-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-1025B-000 BoltBolt, rr swgarm bracket, l M13A:4WD; 2003-11-01~2004-10-01 |
01550-1025B-000 |
from US $5.59 |
||
|
31
|
31
01550-1025A-000 BOLTBolt, drive gear M13A:4WD; 2003-11-01~2004-10-01 |
01550-1025A-000 |
from US $1.06 |
||
|
32
|
32
01550-10203-000
Bolt
M13A:4WD; 2003-11-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
32
|
32
01550-1020A-000 BOLTBolt, bal sprocket M13A:4WD; 2003-11-01~ |
01550-1020A-000 |
from US $0.96 |
||
