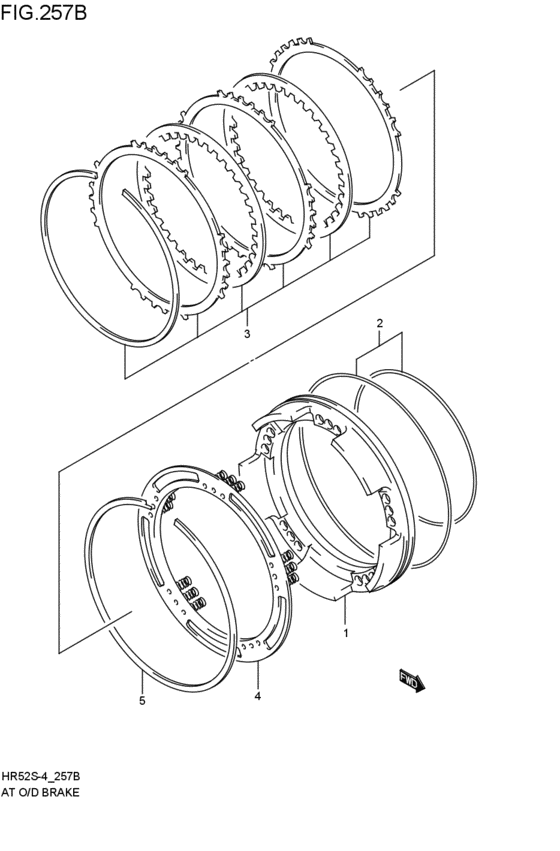

at - overdrive (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26771-79C10-000 PISTON,O/D BRAKE2006-05-01~ |
26771-79C10-000 |
from US $19.85 |
||
|
2
|
2
26772-79CT0-000 O-RING SET,O/D BRAKE2006-05-01~ |
26772-79CT0-000 |
US $6.29 |
||
|
3
|
3
26774-79CT0-000 DISC SET,O/D BRAKE2006-05-01~ |
26774-79CT0-000 |
US $121.44 |
||
|
4
|
4
26780-79C10-000 SPRING S/ASSY,O/D BRAKE2006-05-01~ |
26780-79C10-000 |
US $10.19 |
||
|
5
|
5
26791-79C10-000 RING,O/D BK RETURN SPRING2006-05-01~ |
26791-79C10-000 |
from US $2.79 |
