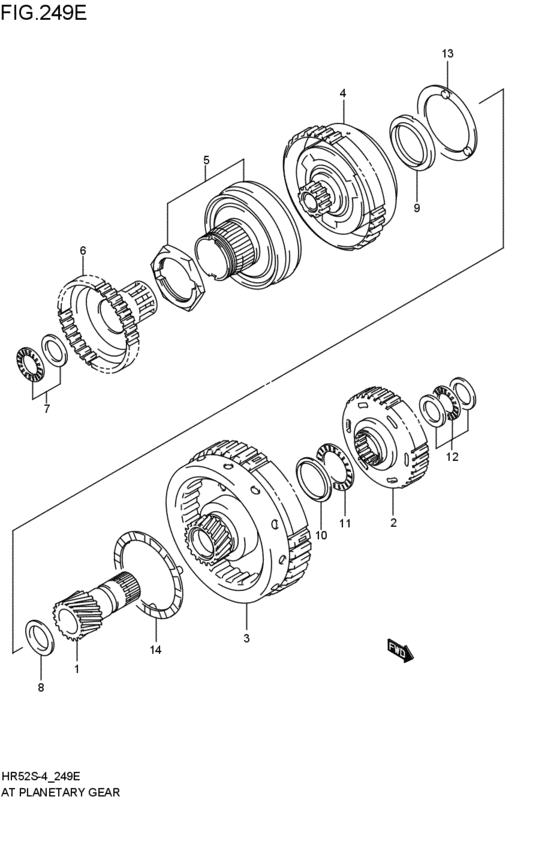

at - plastic material re-gear (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24910-79C10-000
Gear s/assy,fr planetary
2006-05-01~ |
24910-79C10-000 |
— | ||
| replacement | |||||
|
1
|
1
24910-79C11-000 GEAR ASSY,FR PLNTY SUN2006-05-01~ |
24910-79C11-000 |
US $66.98 |
||
|
2
|
2
24920-79C10-000 HUB ASSY,FORWARD CLUTCH2006-05-01~ |
24920-79C10-000 |
US $58.88 |
||
|
3
|
3
24930-68J10-000
ギヤアッシ,リヤプラネタリ
2006-05-01~ |
24930-68J10-000 |
— | ||
| replacement | |||||
|
3
|
3
24930-68J11-000 GEAR ASSY,RR PLNTY SUN2006-05-01~ |
24930-68J11-000 |
US $115.18 |
||
|
4
|
4
24940-79C10-000
Gear assy,planetary
2006-05-01~ |
24940-79C10-000 |
— | ||
| replacement | |||||
|
4
|
4
24940-68L10-000 GEAR ASSY,PLNTY2006-05-01~ |
24940-68L10-000 |
US $404.80 |
||
|
5
|
5
24950-79C10-000 GEAR ASSY,PLNTY2006-05-01~ |
24950-79C10-000 |
US $117.39 |
||
|
6
|
6
24961-79C10-000
Hub,direct clutch
2006-05-01~ |
24961-79C10-000 |
— | ||
| replacement | |||||
|
6
|
6
24961-77M10-000 HUB,DIRECT CLUTCH2006-05-01~ |
24961-77M10-000 |
from US $24.26 |
||
|
7
|
7
24965-79CT0-000 BEARING SET,INPUT SHAFT2006-05-01~ |
24965-79CT0-000 |
from US $12.32 |
||
|
8
|
8
24966-79C10-000 RACE,FR SUN GR THRUST2006-05-01~ |
24966-79C10-000 |
US $4 |
||
|
9
|
9
24967-79C10-000 BEARING,PLANETARY GEAR2006-05-01~ |
24967-79C10-000 |
US $12.96 |
||
|
10
|
10
24968-79C10-000 RACE,RR SUN GR THRUST2006-05-01~ |
24968-79C10-000 |
US $3.97 |
||
|
11
|
11
24971-79C10-000 BEARING,RR SUN GEAR2006-05-01~ |
24971-79C10-000 |
US $11.30 |
||
|
12
|
12
24974-79CT0-000 BEARING SET,INTMD SHAFT2006-05-01~ |
24974-79CT0-000 |
US $14.72 |
||
|
13
|
13
24976-79C10-000 WASHER,PLNTY CARRIER2006-05-01~ |
24976-79C10-000 |
US $3.02 |
||
|
14
|
14
24977-79C10-000
WASHER,FORWARD CL HUB
2006-05-01~ |
24977-79C10-000 |
— | ||
| replacement | |||||
|
14
|
14
24977-77R10-000 Washer,cl Drum Thrust No.22006-05-01~ |
24977-77R10-000 |
from US $2.72 |
||
