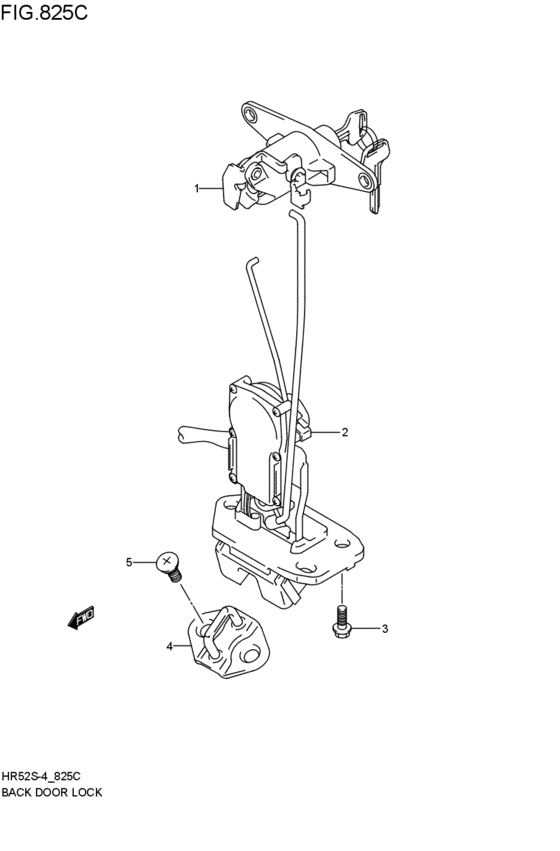

back door lock (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-80830-000 CYLINDER ASSY,BACK DR LOCK2006-05-01~ |
82500-80830-000 |
US $90.53 |
||
|
2
|
2
82510-80G10-000 LATCH ASSY,BACK DR2006-05-01~ |
82510-80G10-000 |
US $358.40 |
||
|
3
|
3
02162-0616C-000 SCREW2006-05-01~ |
02162-0616C-000 |
US $0.80 |
||
| replacement | |||||
|
3
|
3
02162-0616B-000 SCREWBolt, adjust 2006-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
4
|
4
82650-79J00-000
ストライカ,バックドアラッチ
2006-05-01~ |
82650-79J00-000 |
— | ||
| replacement | |||||
|
4
|
4
82650-79J10-000 STRIKER,BACK DOOR LATCH2006-05-01~ |
82650-79J10-000 |
US $17.60 |
||
|
5
|
5
09137-08004-000 SCREW(8X18)2006-05-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
5
|
5
09137-08011-000 SCREW(8X18)2006-05-01~ |
09137-08011-000 |
US $1.44 |
||
