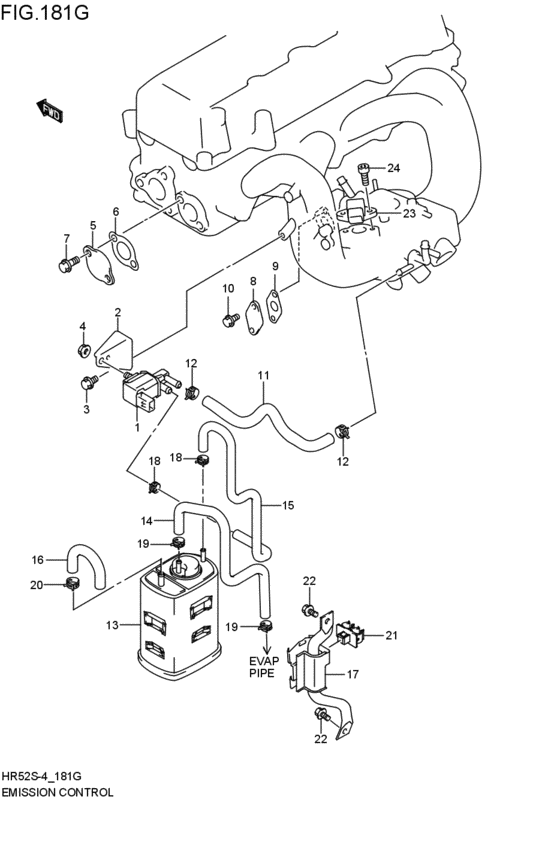

emission control (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge 2006-05-01~ |
18117-52G00-000 |
from US $70.63 |
||
|
2
|
2
18417-80G00-000
BRACKET,PURGE VALVE
2006-05-01~ |
18417-80G00-000 |
— | ||
|
3
|
3
01550-0612A-000 BOLT2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
08316-1006A-000 NUT2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
5
|
5
18491-80GA0-000 PLATE,EGR VALVE2006-05-01~ |
18491-80GA0-000 |
US $5.28 |
||
|
6
|
6
18529-69G00-000 GASKET,EGR VALVE2006-05-01~ |
18529-69G00-000 |
US $1.92 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear 2006-05-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
18492-77E00-000 PLATE,EGR PIPE2006-05-01~ |
18492-77E00-000 |
US $1.60 |
||
|
9
|
9
18533-77E00-000 GASKET,EGR PIPE2006-05-01~ |
18533-77E00-000 |
US $2.28 |
||
|
10
|
10
01550-0616A-000 BOLT2006-05-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
11
|
11
18564-80G02-000 HOSE,CSTR PURGE NO.32006-05-01~ |
18564-80G02-000 |
US $12.44 |
||
|
12
|
12
09401-11419-000 CLIP2006-05-01~ |
09401-11419-000 |
from US $1.42 |
||
|
13
|
13
18560-81AA0-000 CANISTER2006-05-01~ |
18560-81AA0-000 |
from US $87.20 |
||
|
14
|
14
18561-70H00-000 HOSE,CANISTER INLET2006-05-01~ |
18561-70H00-000 |
US $13.76 |
||
|
15
|
15
18562-70H00-000
ホース,キャニスタパージ
2006-05-01~2007-01-01 |
18562-70H00-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-11419-000 CLIP2006-05-01~2007-01-01 |
09401-11419-000 |
from US $1.42 |
||
|
15
|
15
18562-70H01-000 HOSE,CSTR PURGE2006-05-01~2007-01-01 |
18562-70H01-000 |
US $15.24 |
||
|
15
|
15
18562-70H01-000 HOSE,CSTR PURGE2007-01-01~ |
18562-70H01-000 |
US $15.24 |
||
|
16
|
16
18567-80A00-000 HOSE,CANISTER AIR2006-05-01~ |
18567-80A00-000 |
US $5.67 |
||
|
17
|
17
18570-70H00-000
BRACKET,CANISTER
2006-05-01~ |
18570-70H00-000 |
— | ||
|
18
|
18
09401-10409-000 CLIP2006-05-01~2007-01-01 |
09401-10409-000 |
from US $1.12 |
||
|
18
|
18
09401-11419-000 CLIP2007-01-01~ |
09401-11419-000 |
from US $1.42 |
||
|
19
|
19
09401-11419-000 CLIP2006-05-01~ |
09401-11419-000 |
from US $1.42 |
||
|
20
|
20
09401-12404-000 CLIPClip 2006-05-01~ |
09401-12404-000 |
from US $1.52 |
||
|
21
|
21
09403-11318-000
CLAMP
2006-05-01~ |
09403-11318-000 |
— | ||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
18590-72F21-000
SENSOR,PRESSURE
2006-05-01~ |
18590-72F21-000 |
— | ||
| replacement | |||||
|
23
|
23
18590-68H00-000 SENSOR,PRESSURESensor, pressure 2006-05-01~ |
18590-68H00-000 |
from US $196.47 |
||
|
24
|
24
07130-0516A-000 Bolt2006-05-01~ |
07130-0516A-000 |
from US $3.67 |
||
